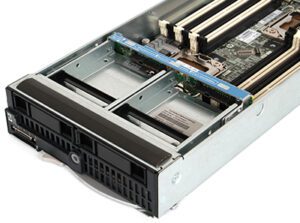

Servidor HP ProLiant BL460C (G7)

Description

HPE’s ProLiant BL460c Gen7 blade server is designed specifically for the HPE BladeSystem c3000 and c7000 enclosures. The c3000 will support up to eight HPE BL460c Gen7 blades while the c7000 can support twice that many. Both enclosures are backwards and forwards compatible to support several generations of blade servers. The shared infrastructure design offers reduced power consumption, shared cooling, management, and less cabling clutter than a traditional rack mounted server.

HPE BladeSystem c7000 Enclosure

Performance

Intel’s 5520 Chipset supports a maximum of two Intel Xeon 5600, four or six core processors. DDR3 memory is supported offering data transfer speeds of 800MHz, 1066MHz, and a maximum of 1333MHz depending on the memory configuration.

Memory

The system board supports 12 memory slots total with each processor supporting six memory slots at up to 1333MHz, depending on your choice of processor. Choose from registered (RDIMM) or unbuffered (UDIMM) DDR3 memory modules. Maximum supported memory is achieved using 12 RDIMM modules for a total of 384GB in a two processor configuration. UDIMMs will provide a maximum of 48GB with all twelve slots loaded.

Storage

The front of the blade supports a maximum of two hot-plug small form factor (SFF) SAS, or SATA HDDs or SSDs. Storage devices cannot be mixed within the server. The onboard storage is supported by an HPE Smart Array P410i controller located under the drive bays. Additional external storage controllers are supported in the expansion slots.

Expansion

There are two I/O expansion mezzanine slots available, which support additional NICs, I/O accelerators and Smart Array SAS RAID controllers for external direct attached storage. An integrated NC553i dual port FlexFabric 10Gb Adapter network controller is standard and features a dedicated iLO3 management port.

Management

HPE’s Integrated Lights Out (iLO3) 3.0 is supported on this system to simplify server setup, health monitoring, power, and thermal controls. There are also several other management tools available to help you get the most out of your system.

Summary

The ProLiant BL460c Gen7 server is designed for the HPE BladeSystem c3000 and c7000 enclosures, which offer a shared infrastructure design and supports backwards and forward compatibility across multiple generations of blades. Cooling, power, and management are handled at the chassis level resulting in a lower cost per server with reduced cabling, power, and airflow requirements in comparison to individual rack mounted servers. With a blade enclosure, the management and network interconnects can pool and share resources across multiple enclosures and can split dual and quad port network connections between interconnects for increased throughput and redundancy.

PROCESSOR – 2 SOCKET

CHIPSET

MEMORY

• Type:
  • DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available:

• • 12 DIMM Slots Available

Maximum (RDIMM):

• • Up to 384GB, using PC3-10600 DDR3 registered (RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per channel in 12 slots

Maximum (UDIMM):

• Up to 48GB, using PC3-10600 DDR3 unbuffered (UDIMM) memory, operating at 1333MHz when fully populated at 2 DIMMs per channel in 12 slots

MEMORY PROTECTION

• Advanced ECC (multi-bit error protection)
• Memory Mirroring Mode
• Memory Lock-Step Mode
• Memory Online Spare Mode supported on Intel Xeon 5600 Series processors

STORAGE CONTROLLER

INTERNAL DRIVE SUPPORT

• • Two (2) hot-plug small form factor (SFF) drive bays
  • Support for SAS, SATA, and SSD hot-plug hard drives

NOTE: SAS, SATA, and/or SSD drives cannot be mixed within the server.

MAXIMUM INTERNAL STORAGE

• Maximum Internal Storage: 4TB

Hot-plug SAS	2.0TB	2 x 1.0TB drives
Hot-plug SATA	2.0TB	2 x 1.0TB drives
Hot-plug SAS SSD	1.6TB	2 x 800GB drives
Hot-plug SATA SSD	800GB	2 x 400GB drives

NETWORK CONTROLLER

• Integrated NC553i Dual Port FlexFabric 10Gb Adapter supporting autosensing 10Gb/1Gb Ethernet, FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot.
• One (1) additional 10/100 server adapter dedicated to iLO 3 Management

MEZZANINE SUPPORT

• Two (2) I/O expansion mezzanine slots:



• Dual-port FlexFabric adapter mezzanine options
• Dual-port Fibre Channel mezzanine (4 Gb or 8 Gb) options for SAN connectivity
• Multi-port 1Gb and 10Gb Ethernet server adapter mezzanine options for additional network ports
• InfiniBand (IB) mezzanine options for low latency and high bandwidth server interconnectivity
• I/O accelerator mezzanine options for high transaction rate local storage
• Smart Array SAS RAID controller mezzanine options for external direct attach and shared SAS storage

EXPANSION BLADE SUPPORT

INTERNAL MEDIA SUPPORT

• One (1) internal USB 2.0 connector for USB flash media drive keys
• One (1) internal secure digital (SD) card slot

TRUSTED PLATFORM MODULE

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

ENCLOSURES

• The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c G7 servers plugged vertically
• The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL460c G7 servers plugged horizontally

GRAPHICS

FORM FACTOR

HP INSIGHT MANAGEMENT SOFTWARE

• HP Service Pack for ProLiant
• HP Insight Foundation
• HP Integrated Lights-Out (iLO)
• HP Insight Control
• HP Matrix Operating Environment

HIGH PERFORMANCE CLUSTERS

• HP Cluster Platforms
• HP HPC Interconnects
• HP Insight Cluster Management Utility
• HP HPC Linux Value Pack

AVAILABILITY

• Dual-Port Fibre Channel Mezzanine Card options for redundant SAN connection
• Dual-port embedded 10 Gigabit Ethernet adapters for redundant LAN connections
• Two (2) hot-plug SAS/SATA hard drive bays and integrated RAID (HP Smart Array P410i Controller)
• Optional Battery-backed and Flash-backed write cache module for integrated RAID controller
• Redundant ROM
• Advanced ECC Memory
• Support for Memory Mirroring Mode and Memory Lock-Step Mode
• Support for Memory Online Spare Mode with Xeon 5600 Series processors
• Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

INDUSTRY STANDARD COMPLIANCE

• ACPI 2.0 Compliant
• PCI 2.2 Compliant
• WOL Support
• Microsoft® Logo certifications
• USB 2.0 Support
• IMPI 2.0 Compliant
• SMASH CLP Compliant

SECURITY

• Power-on password
• Administrator’s password
• Keyboard password (QuickLock)
• Integrated Lights-Out 3
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI) (Intel Xeon 5600 series processors)
• Keyboard password
