HP ProLiant BL460C (G8)
Overview
Specification
Documentation

Description

hpe bl460c gen8 server blade front elevation

With the half width HPE BL460c Gen8 server blade form factor, Administrators can add two physically separated servers instead of just one full-width blade server—and still have the same number of processors. This is an excellent choice for data center applications with its well-balanced performance, scalability, and expandability features. This server blade is designed for the HPE BladeSystem c3000 and c7000 enclosures, which offer a shared infrastructure design and supports backwards and forward compatibility across multiple generations of blades. Cooling, power, and management are handled at the chassis level resulting in a lower cost per server with reduced cabling, power, and airflow requirements in comparison to individual rack mounted servers. With a blade enclosure, the management and network interconnects can pool and share resources across multiple enclosures and can split dual and quad port network connections between interconnects for increased throughput and redundancy.

HPE BladeSystem c7000 Enclosure

Performance

Intel’s C600 series chipset supports a maximum of two processors, either two Xeon E5-2600 or two Xeon E5-2600 v2 processor families. V2 processors support 2, 4, 6, 8, 10, or 12 cores each with speeds of up to 3.5GHz and offer a 24% increase in performance over the previous generation processors.

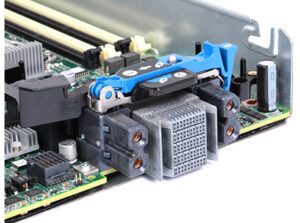

proliant bl460c gen8 detail back of system enclosure connector

Memory

There are sixteen total memory slots available in a two-processor configuration with each processor controlling eight memory slots. Registered (RDIMM), load reduced (LRDIMM) or unbuffered ECC (UDIMM) memory modules are supported. The maximum capacity of 512GB is supported using sixteen 32GB load reduced DIMM modules. HPE SmartMemory is recommended and offers improved functionality.

Storage

A total of two hot-plug SFF SAS, SATA or SSD drives can be installed on the system. The HPE Smart Array P220i storage controller comes with a 512 MB FBWC.

Expansion

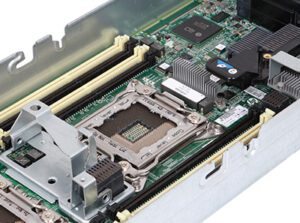

hpe bl460c gen8 detail of motherboard CPU socket

Two PCIe 3.0 expansion slots support 1 x 16 type A or type B, and supports dual and quad-port mezzanine cards with ports split between the interconnect modules. The second expansion slot is only active with a second processor installed.

Management

On system management is handled by HPE’s Integrated Lights Out (iLO 4) and consolidated by the chassis management module. For data center applications, HPE’s OneView can help administrators manage multiple servers and multiple enclosures using different operating systems and 3rd-party applications. For security there is also an optional trusted platform module.

Summary

The HPE ProLiant BL460c Gen8 server blade is supported on the HPE c3000 and c7000 blade enclosures. The c3000 supports up to eight half-height server blades and up to four expansion blades. The c7000 supports up to 16 half-height, or eight full-height server blades, or a mix of the two.

PROCESSOR – 2 SOCKET
    • Intel® Xeon® processor E5-2600 and E5-2600 v2 product families

Core Options:

  • 2, 4, 6, 8, 10, 12
CHIPSET
    Intel C600 Series Chipset
ON SYSTEM MANAGEMENT PROCESSOR
    HP iLO (Firmware: HP iLO 4)
MEMORY PROTECTION
  • Advanced ECC
  • Memory Online Spare Mode (Rank Spare Mode)
  • Lockstep Mode
MEMORY
    • Type:

    • HP SmartMemory DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC (UDIMM)

DIMM Slots Available:

    • 16 DIMM Slots Available

Maximum (LRDIMM):

    • 512GB (16 x 32GB) up to 1333MHz at 1.35V

Maximum (RDIMM):

    • 256GB (16 x 16GB) up to 1866MHz at 1.5V
    • 384GB (16 x 24GB) up to 1333MHz at 1.35V

Maximum (UDIMM):

  • 128GB (16 x 8GB) up to 1600MHz at 1.5v
  • NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1866MHz, 1600MHz, 1333MHz, or 1066MHz.

NETWORK CONTROLLER
    • One (1) HP FlexFabric 10Gb 2-port 534FLB FlexibleLOM, HP FlexFabric 20Gb 2-port 650FLB DlexibleLOM, or HP FlexFabric 10Gb 2-port 554FLB FlexibleLOM
    • One (1) HP Flex-10 10Gb 2-port 530FLB FlexibleLOM
    • One (1) HP Ethernet 10Gb 2-port 560FLB FlexibleLOM

Standard iLO Network Controller:

  • One (1) 10/100 Mbps port for the HP iLO 4 to Onboard Administrator link.
EXPANSION SLOTS
    • Two (2) I/O expansion mezzanine slots:

    • x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1)
    • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)

Mezzanine card options include:

  • Dual-port 10Gb FlexFabric, 10Gb Flex-10, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
  • Dual-port 8Gb Fibre Channel HBA for SAN connectivity
  • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
  • I/O accelerator mezzanine options for high transaction rate local storage
STORAGE CONTROLLER
    One (1) HP Smart Array P220i Controller with 512MB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1.
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 4.0TB 2 x 2.0TB
Hot Plug SFF SATA 4.0TB 2 x 2.0TB
Hot Plug SFF SAS SSD 3.2TB 2 x 1.6TB
Hot Plug SFF SATA SSD 3.2TB 2×1.6TB
INTERFACES
    • Micro SDHC Slot:

    • One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port:

  • One (1) internal USB 2.0 connector for USB flash media drive keys
INDUSTRY STANDARD COMPLIANCE
  • ACPI 2.0
  • Microsoft® Logo certifications
  • USB 2.0 Support
  • IPMI 2.0
  • Secure Digital 2.0
  • TPM 1.2 Support
  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP
  • SSL 2.0
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • Active Directory v1.0
  • PCIe 3.0
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Canonical Ubuntu
  • Oracle Solaris
  • VMware
  • Citrix XenServer
ENCLOSURES
    HP offers two different c-Class server blade enclosures to meet your individual needs:

  • The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen8 servers plugged vertically
  • The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL460c Gen8 servers plugged horizontally
  • Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures
GRAPHICS
    • Integrated Matrox G200 video standard

    HP iLO 4 On System Management Memory
FORM FACTOR
    HP ProLiant BL460c Gen8 is a half-height server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures.
ON SYSTEM MANAGEMENT
  • HP iLO Management Engine
HP INSIGHT MANAGEMENT SOFTWARE
  • HP Service Pack for ProLiant (SPP)
SECURITY
  • Power-on password
  • Administrator’s password
  • Keyboard password (QuickLock)
  • HP iLO 4 On System Management Chipset
  • External USB port enable/disable
  • Network server mode
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option
  • Advanced Encryption Standard (AES)
  • Intel® Advanced Encryption Standard-New Instructions (AES-NI)
