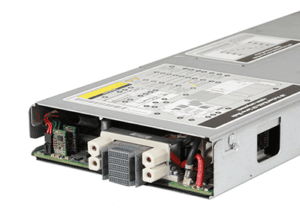

Servidor HP ProLiant BL465C (G7)

Description

The HPE ProLiant BL465c Gen7 server blade is designed for the Blade System c7000 or c3000 enclosures which provide, power, cooling, networking, and centralized management. This platform is an excellent choice for data centers with its small footprint and 10Gb converged network adapter to help reduce infrastructure cost and overall power consumption. HPE’s integrated management engine, iLO 3.0, has also been updated and is nearly 8x faster than iLO 2.0.

Performance

You can install a maximum of two AMD Opteron 6100 or 6200 series processors with 8, 12, or 16 cores each. There are also a few low power Opteron CPUs for reduced power consumption. 6200 series Opteron processors provide more L2 and L3 cache compared to the 6100 series processors.

Storage

A SmartArray P410i RAID controller features 1GB flash-backed write cache (FBWC) and supports RAID configurations of 0 and 1. Although, with only two internal small form factor (SFF) drives supported on the HPE BL465c Gen7 server blade the P410i controller is more than up to the task. The P410i RAID controller is also required if you will be using hot swap HDs. An internal SD-HC card slot supports a hypervisor.

Memory

Each processor supports eight memory modules for 16 total active slots in a two processor configuration. The HPE BL465c Gen7 supports a maximum memory capacity of 512GB using 32GB DDR3 Registered (RDIMM) memory modules operating at 1066MHz. Quad rank memory modules will deliver faster speeds at 1333MHz or 1600MHz but with reduced capacity at 256GB. Unbuffered (UDIMM) memory modules are also supported and yield the least capacity at 64GB using all 16 memory slots with two processors.

Expansion

There are two I/O expansion mezzanine slots on the system to support a maximum of two mezzanine cards. Supported cards include a dual port flex fabric adapter, dual port fibre channel for SAN connectivity, support for additional network ports, infinBand, accelerators, and a SAS mezzanine option for direct attached and shared SAS storage. The HPE BL465c Gen7 also features an integrated dual port FlexFabric 10GB Converged Network Adapter.

Management

The HPE BL465c Gen7 server blade requires the latest version of the Onboard Administrator firmware and also features HPE’s integrated Lights Out 3.0 module for setup, health monitoring, power and thermal controls, and remote administration.

Summary

With integrated network connections the HPE ProLiant BL465c Gen7 server blade offers a simplified, lower cost approach to server integration and deployment. With two AMD Opteron processors, it delivers impressive performance and a fairly large memory footprint at 512GB in a half-width server blade. HPE’s integrated management tools also help to sweeten the deal providing powerful management tools to help you get the most out of your system.

PROCESSOR – 2 SOCKETS

• AMD Opteron 6100 or 6200 Series Maximum Number of cores: 32

• Sixteen-Core supports up to 2.3 GHz; 8x2MB Level 2 cache; 16 MB Level 3 cache
• Twelve-Core supports up to 2.6 GHz; 6x2MB Level 2 cache; 16 MB Level 3 cache
• Eight-Core supports up to 3.0 GHz; 4x2MB Level 2 cache; 16 MB Level 3 cache
• Four-Core supports up to 3.3 GHz, 2x2MB Level 2 cache; 16MB Level 3 cache

OPERATING SYSTEM

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware
• Oracle Solaris
• Oracle Linux Unbreakable Enterprise Kernel
• Citrix XenServer

CHIPSET

MEMORY

• 16 DIMM Slots (8 per CPU)

• • Up to 512GB of PC3L-10600 DDR3 Registered (RDIMM) memory, operating at 1066 MHz when fully populated at 2 DIMMs per channel in 16 slots
  • Up to 256GB of PC3-10600 DDR3 Registered (RDIMM) memory, operating at 1333 MHz when fully populated at 2 DIMMs per channel in 16 slots
  • Up to 256GB of PC3-12800 DDR3 Registered (RDIMM) memory, operating at 1600 MHz when fully populated at 2 DIMMs per channel in 16 slots
  • Up to 64GB of PC3-10600 DDR3 Unbuffered (UDIMM) memory, operating at 1333 MHz when fully populated at 2 DIMMs per channel in 16 slots
  • Supporting memory interleaving (2:1)

STORAGE CONTROLLER

INTERNAL DRIVE SUPPORT

NETWORK CONTROLLER

• One (1) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapter supporting stateless TCP/IP offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
• One additional embedded 10/100 network adapter dedicated to iLO 3 manageability

MEZZANINE SUPPORT

• • Two I/O expansion mezzanine slots

• Dual-Port FlexFabric Adapter mezzanine option
• Dual-Port Fibre Channel Mezzanine (4-Gb or 8-Gb) options for SAN connectivity
• Dual-Port FlexFabric Converged Network Adapter
• Ethernet server adapter mezzanine options for additional network ports
• InfiniBand (IB) Mezzanine options for low latency server interconnectivity
• I/O Accelerator mezzanine options for high transaction rate local storage
• SAS mezzanine option for external direct attach and shared SAS storage

EXPANSION BLADE SUPPORT

INTERNAL MEDIA SUPPORT

• 1 internal USB 2.0 connector for security key devices and USB drive key
• 1 internal Micro SD-HC card slot

TRUSTED PLATFORM MODULE

• 1 internal TPM 1.2 module connector

INFRASTRUCTURE MANAGEMENT

• This server blade requires the latest version of the Onboard Administrator firmware. This firmware release may also require other subsystem firmware upgrades.
• HP Integrated Lights-Out 3 management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
• HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports Windows-based central management servers
• HP Matrix Operating Environment for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization’s changing business requirements.

DIMENSIONS

BAYS

• Two small form factor (SFF) hot plug drive bays

SLOTS

• 2 PCIe x8 Gen 2 (mezzanine)
• 1 internal USB 2.0 connector for security key devices and USB drive key
• 1 internal Micro SD-HC card slot

ENCLOSURES

• The HP BladeSystem c7000 rack enclosure with 10U high holds up to 16 ProLiant BL465c G7 servers plugged vertically.
• The HP BladeSystem c3000 rack enclosure with 6U high holds up to 8 HP ProLiant BL465c G7 servers plugged horizontally.
• Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.

SECURITY

• Power-on password
• Administrator’s password
• Integrated Lights-Out 3 (iLO 3) with: 12 customizeable user accounts, SSL Encryption, Secure Shell version 2, Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface, AES and RC4 encryption of video, disable via a global setting
• Keyboard password
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 Option

GRAPHICS
