Servidor HP ProLiant BL465C (G8)

Aluguel, locação e comodato
HP ProLiant BL465C (G8)
Overview
Specification
Documentation

Description

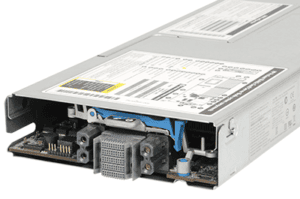

hpe bl465c gen8 server blade front elevation

The HPE ProLiant BL465c Gen8 server blade is designed for deployment with the BladeSystem c7000 or c3000 enclosures which offer shared power, cooling, networking, and management. The c7000 enclosure will hold up to 16 BL465c servers vertically compared to room for just eight full-width, half-height blade servers on the c3000 enclosure. Both enclosures are backwards and forwards compatible to support several generations of blade servers.

HPE BladeSystem c7000 Enclosure

Performance

There are two different AMD chipset options supporting one or two of AMD’s Opteron 6300 Series processors with up to 16 cores each. Users can start out with just a single processor and scale to support two processors as business needs change.

Memory

Both registered (RDIMM) and Load Reduced (LRDIMM) DDR3 modules are supported on this platform. With dual processors and all slots loaded with 16 x 16GB RDIMM modules, the system will support up to 256GB of memory operating at speeds of up to 1600MHz. Using LRDIMM modules you get twice that memory capacity at 512GB running at up to 1333MHz.

Storage

Two small form factor (SFF) hot plug drive bays are supported up front on the HPE BL465c Gen8 server blade. An HPE Smart Array P220i controller offers 512MB Flash Backed Write Cache (FBWC) and supports limited RAID of 0 and 1. Other Smart Array controllers offer enhanced performance and more RAID options.

Expansion

hpe bl465c gen8 detail of expansion port

There are two PCIe 2.0 expansion slots on the server blade and can support both dual and quad-port mezzanine cards with ports automatically routed to the interconnect modules supported on the BladeSystem enclosure. Card options include NICs, Fibre Channel HBA, Smart Array SAS controllers for external storage support, and QDR and FDR InfiniBand connections for low latency and high bandwidth server interconnectivity. A maximum of two optional Fibre Channel HBAs can be installed on this system.

Management

Integrated Lights Out 4.0 On System Management Chipset helps secure the system and provides remote server management. An Advance license provides a full range of administrative functions that help with server setup, health monitoring, and power and thermal controls. The HPE iLO functions right out of the box. It can be accessed using a standard web browser and works with other HPE management systems including Insight Manager, and Insight Control. HPE OneView combines servers, storage, and networking into a single user interface to help manage converged infrastructures more efficiently.

Summary

The HPE ProLiant BL465c Gen8 server blade is a very capable server for a variety of standard business applications, and also offers enterprise-class reliability for the data center. With AMD Opteron processors, this system delivers powerful performance at a less expensive price point than a similar system using Intel’s chipset and Xeon processors.

PROCESSOR – 2 SOCKET
    AMD Opteron™ processor 6200 and 6300 product families
CHIPSET
    AMD SR5690 and SP5100
ON SYSTEM MANAGEMENT PROCESSOR
    HPE iLO (Firmware: HPE iLO 4)
MEMORY PROTECTION
  • Advanced ECC
  • Online spare mode
MEMORY
    • Type:

    • DDR3 Load Reduced (LRDIMM) or Registered (RDIMM)

DIMM Slots Available:

    • 16 DIMM Slots Available

Maximum (LRDIMM):

    • 512GB (16 x 32GB) at 1333MHz

Maximum (RDIMM):

  • 256GB (16 x 16GB) up to 1600MHz
NETWORK CONTROLLER
    • One (1) FlexibleLOM connector for one dual-port FlexibleLOM

Standard iLO Network Controller:

  • One (1) 10/100 Mbps port for the HPE iLO 4 On System Management Chipset
  • One (1) 10/100 Mbps port for the HPE iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps
EXPANSION SLOTS
    • Two (2) I/O expansion mezzanine slots:

    • x8 PCIe 2.0 Type A (supports Type A mezzanine cards) (expansion slot 1)
    • x16 PCIe 2.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)

Mezzanine card options include:

  • Dual-port 10Gb FlexFabric, 20Gb FlexFabric,10Gb Flex-10, 10Gb Ethernet options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports
  • Dual-port 8Gb and 16Gb Fibre Channel HBA for SAN connectivity
  • QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
  • I/O accelerator mezzanine options for high transaction rate local storage
  • Smart Array SAS RAID controller mezzanine options for external direct attach and shared SAS storage
STORAGE CONTROLLER
    One (1) HPE Smart Array P220i Controller with 512MB FBWC, (RAID 0 and 1)
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 2.4TB 2 x 1.2TB
Hot Plug SFF SATA 2.0TB 2 x 1.0TB
Hot Plug SFF SAS SSD 3.2TB 2 x 1.6TB
Hot Plug SFF SATA SSD 3.2TB 2 x 1.6TB
INTERFACES
    • Micro SDHC Slot:

    • One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port:

  • One (1) internal USB 2.0 connector for USB flash media drive keys
INDUSTRY STANDARD COMPLIANCE
  • ACPI 2.0
  • Microsoft® Logo certifications
  • USB 2.0 Support
  • IPMI 2.0
  • Secure Digital 2.0
  • TPM 1.2 Support
  • IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP
  • SSL 2.0
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Canonical Ubuntu
  • Oracle Solaris
  • VMware
  • Citrix XenServer
ENCLOSURES
    Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

  • The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL465c Gen8 servers plugged vertically.
  • The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL465c Gen8 servers plugged horizontally.
  • Server blades, storage blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.
GRAPHICS
    • Integrated Matrox G200 video standard

    HPE iLO 4 On System Management Memory
FORM FACTOR
    HPE ProLiant BL465c Gen8 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures.
ON SYSTEM MANAGEMENT
  • HP iLO Management Engine
HP INSIGHT MANAGEMENT SOFTWARE
  • HP Service Pack for ProLiant (SPP)
SECURITY
  • Power-on password
  • Administrator’s password
  • Keyboard password (QuickLock)
  • HP iLO 4 On System Management Chipset
  • External USB port enable/disable
  • Network server mode
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option
  • Advanced Encryption Standard (AES)
