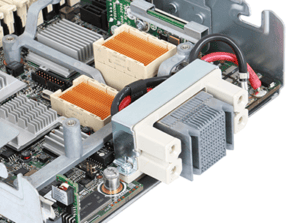

Servidor HP ProLiant BL490C (G6)

Description

The HPE ProLiant BL490c Gen6 is ideal for hosting virtual machines with support from dual processors and up to 18 DDR3 memory modules. It also features embedded dual port 10GbE. The c3000 and c7000 BladeSystem enclosures are forwards and backwards compatible to support G1 through Gen9 server blades. The c3000 enclosure will support up to eight ProLiant BL490c G6 server blades while the c7000 enclosure will support up to 16. Both c-series enclosures also support a mix of half and full-width blade servers.

HPE BladeSystem c7000 Enclosure

Performance

Up to two Intel Xeon 5600 or 5500 series processors are supported on Intel’s 5500 chipset. Turbo boost and Intel’s Hyper-Threading technology is supported.

Memory

Administrators can choose from either registered (RDIMM) or unbuffered (UDIMM) DDR3 memory modules supporting transfer speeds of 800MHz, 1066MHz, or 1333MHz. Memory speed is dependent on the type and quantity of memory modules installed. There are 18 DIMM slots active in a two processor configuration, Using RDIMM modules the HPE BL490c Gen6 will support a maximum of 192MB with two DIMMs per channel in 12 memory slots and operate at 800MHz.

Storage

The ProLiant BL490c Gen6 will support up to two hot plug SATA SSDs or six hot plug SFF serial-attached SAS or SATA drives. A max of two Fibre Channel HBAs per server blade are standard and provide redundant failsafe support. An integrated SATA Controller is standard for connecting to non-hot-plug SATA SSDs only. For additional RAID functionality, and connecting to external storage, requires the use of an optional Smart Array mezzanine card and optional Smart Array Controller. Integration with StorageWorks storage blades is supported but requires the HP PCI Express Mezzanine Pass Thru Card. There’s also an internal SD card slot for hypervisor support.

Expansion

Two I/O expansion slots are located on the server blade to connect to additional DAS and NAS storage, NICs, and I/O accelerators. Integrated graphics support is included for resolutions of up to 1600 x 1280.

Management

Like other Gen6 HPE ProLiant servers, the ProLiant BL490 Gen6 server features Integrated Lights Out (iLO 2.0) to help provision, deploy, and manage the server. Centralized management is provided the HPE BladeSystem onboard Administrator at the chassis level.

PROCESSOR – 2 SOCKETS

CHIPSET

MEMORY

• Type:
  • DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available:

• • 18 DIMM Slots Available

Maximum (RDIMM):

• • Up to 192GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 2 DIMMs per Channel in 12 slots

Maximum (UDIMM):

• Up to 48GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully populated at 2 DIMMs per Channel in 12 slots

STORAGE CONTROLLER

• HP Integrated SATA Controller

INTERNAL DRIVE SUPPORT

• Up to two (2) non-hot plug SATA Solid State Drives (SSD)
• With an attached SB40c Storage Blade, up to six (6) hot plug SFF Serial Attached SCSI (SAS) or SATA Hard Drives (optional)

NETWORK CONTROLLER

• • Embedded NC532i Dual Port Flex-10 10GbE Multifunction Server Adapter
  • One (1) additional 10/100 server adapter dedicated to iLO 2 Management

MEZZANINE SUPPORT

• Two (2) I/O expansion mezzanine slots

• Dual-port FlexFabric adapter mezzanine options
• Dual-port Fibre Channel mezzanine (4 Gb or 8 Gb) options for SAN connectivity
• Multi-port 1Gb and 10Gb Ethernet server adapter mezzanine options for additional network ports
• InfiniBand (IB) mezzanine options for low latency and high bandwidth server interconnectivity
• I/O accelerator mezzanine options for high transaction rate local storage
• Smart Array SAS RAID controller mezzanine options for external direct attach and shared SAS storage

INTERNAL USB SUPPORT

• One (1) internal USB 2.0 connector for security key devices and USB drive keys
• One (1) internal SD-HC Card slot

TRUSTED PLATFORM MODULE

OPERATING SYSTEMS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

ENCLOSURES

• The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 16 ProLiant BL490c G6 servers plugged vertically
• The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 8 HP ProLiant BL490c G6 servers plugged horizontally

FORM FACTOR

INFRASTRUCTURE MANAGEMENT

• This server blade requires the latest version of the Onboard Administrator firmware. This firmware release may also require other subsystem firmware upgrades.
• HP Integrated Lights-Out 2 (iLO 2) management processor for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
• HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
• HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization’s changing business requirements

GRAPHICS

AVAILABILITY

• Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
• Dual-port embedded 10 Gigabit Ethernet adapters for redundant LAN connections
• Redundant ROM
• Advanced ECC Memory
• Support for Memory Mirroring and Memory Lock-Step Mode
• Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load balancing)

INDUSTRY STANDARD COMPLIANCE

• ACPI 2.0 Compliant
• PCI 2.2 Compliant
• WOL Support
• Microsoft® Logo certifications
• USB 2.0 Support

SECURITY

• Power-on password
• Administrator’s password
• Integrated Lights-Out 2 has 12 customizable user accounts and SSL encryption
• Integrated Lights-Out 2 can be disabled via a Global Setting
