Servidor HP ProLiant BL660C (G8)

Description

Designed for the BladeSystem c3000 or c7000 blade enclosures, the modular form factor of the HPE BL660c Gen8 server blade offers an easily scalable solution for data centers and large enterprise applications. The c7000 will support a maximum of four full-width blades or up to eight half-width server blades while the c7000 will support a total of 16 half-width blades and eight full width server blades like the BL660c. The enclosures can also support a mix of both full-width and half-width server blades. Both enclosures also support multiple generations of server blades in the same chassis.

HPE BladeSystem c7000 Enclosure

Performance

Intel’s C600 series chipset supports up to four Intel Xeon E5-4600 or E5-4600 v2 processors but Administrators can start out with just two and scale to four CPUs as business needs change.

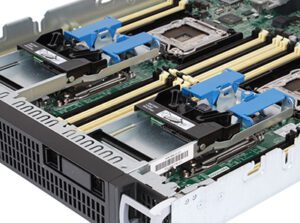

Memory

There are 32 memory slots total on the system board that support up to 1TB of memory using 32GB load reduced (LRDIMM) modules in a four processor configuration. Registered (RDIMM) memory modules are also supported but cannot be used with load reduced DIMM modules. HPE recommends using HPE SmartMemory to realize performance improvements and enhanced functionality. Depending on the memory configuration and processor model, memory will run at either 1600 MHz, 1333 MHZ, or 1066 MHz.

Storage

Two SFF drive bays are located on the front of the system supporting either SAS or SATA HDDs or SSDs. The BL660c has one embedded HPE Smart Array P220i controller that supports the two SFF hot plug drive bays, and offers minimal RAID configurations of 0 and 1.

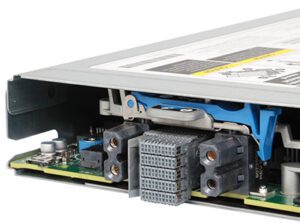

Expansion

Three PCIe 3.0 I/O expansion mezzanine slots can be used to support increased I/O, storage controllers for DAS, and I/O accelerators. This system will support one or two dual port Flexible LOMs providing 10Gb Flex Fabric, 10Gb Flex-10, or 10Gb Ethernet, which are routed through two separate interconnect modules. QDR and FDR InfiniBand connections are also supported offering low latency and greater throughput.

Management

Integrated Lights Out (iLO) offer Administrators help provisioning, deploying and managing the server. HPE OneView provides lifecycle management of the system in a data center environment. Other management features are handled at the chassis level.

PROCESSOR – 4 SOCKET

• Intel® Xeon® processor E5-4600 and E5-4600 v2 product families

Core Options:

• 4, 6, 8, 10, 12

CHIPSET

ON SYSTEM MANAGEMENT PROCESSOR

MEMORY PROTECTION

• Data bus ECC protection
• Advanced ECC / SDDC
• Rank sparring (on line spare)
• Lockstep mode
• DIMM address/control bus parity protection
• Failed DIMM isolation
• Demand scrubbing
• Patrol scrubbing
• Memory thermal control
• Memory mirroring inter-socket

MEMORY

• Type:
  • HPE SmartMemory DDR3 Load Reduced (LRDIMM) and Registered (RDIMM)

DIMM Slots Available:

• • 32 DIMM Slots Available

Maximum (LRDIMM):

• • 1.0TB (32 x 32GB) up to 1866MHz at 1.5V

Maximum (RDIMM):

• 512GB (32 x 16GB) up to 1600MHz at 1.35V
• 768GB (32 x 24GB) up to 1333MHz at 1.35V

NETWORK CONTROLLER

• Two (2) HPE FlexibleLOM connectors for one or two dual-port FlexibleLOMs

EXPANSION SLOTS

• Three (3) I/O expansion mezzanine slots:
  • x8 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1)
  • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2)
  • x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 3)

Mezzanine card options include:

• Dual-port to quad-port (depending on the model) 10Gb FlexFabric, 10Gb Flex-10, 10Gb Ethernet, and 1Gb Ethernet for additional Ethernet network ports
• Dual-port 20Gb Flex Fabric for additional Ethernet network ports
• Dual-port 8Gb and 16GB Fibre Channel HBAs for SAN connectivity
• QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity
• HPE Smart Array P721m Controller for direct attached SAS Storage
• HPE I/O Accelerator Options for higher I/O performance and low latency access to storage, with the reliability of solid state

STORAGE CONTROLLER

MAXIMUM INTERNAL STORAGE

• Maximum Internal Storage: 4TB

Hot Plug SFF SAS	3.2TB	2 x2.6TB
Hot Plug SFF SATA	3.2TB	2 x 1.6TB
Hot Plug SFF SAS SSD	4.0TB	2 x 2.0TB

INTERFACES

• Micro SDHC Slot:
  • One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port:

• One (1) internal USB 2.0 connector for USB flash media drive keys

INDUSTRY STANDARD COMPLIANCE

• ACPI 2.0
• Microsoft® Logo certifications
• USB 2.0 Support
• IPMI 2.0
• Secure Digital 2.0
• TPM 1.2 Support
• IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
• Advanced Encryption Standard (AES)
• Triple Data Encryption Standard (3DES)
• SNMP
• SSL 2.0
• DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
• Active Directory v1.0
• PCIe 3.0
• SR-IOV capability (requires network adapter and operating system support)

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Citrix XenServer
• Oracle Solaris
• VMware

ENCLOSURES

• The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to eight (8) ProLiant BL660c Gen8 servers plugged vertically
• The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to four (4) HPE ProLiant BL660c Gen8 servers plugged horizontally

GRAPHICS

• Integrated Matrox G200 video standard

FORM FACTOR

ON SYSTEM MANAGEMENT

• HPE iLO Management Engine

HPE INSIGHT MANAGEMENT SOFTWARE

• HPE Service Pack for ProLiant (SPP)

SECURITY

• Power-on password
• Administrator’s password
• Keyboard password (QuickLock)
• HPE iLO 4 On System Management Chipset
• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)
• Intet TXT (require the TPM module option)
