HP ProLiant BL680C (G7)
OVERVIEW
SPECIFICATIONS
DOCUMENTATION

Description

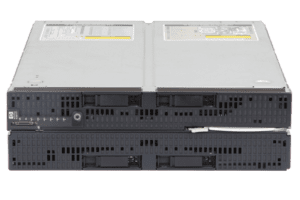

hpe BL680c Gen7 front elevation

This server may be a few generations removed at this point, but just a few short years back it was the top of the line four-socket workhorse blade server. It still offers very impressive performance with support for Intel Xeon processors and 64 memory modules. In fact, this was the first blade server to support up to 2TB of memory! Networking is equally impressive with six embedded FlexFabric adapters supporting autosensing 10GbE and 1GbE. HPE’s BladeSystem enclosures offer backwards and forwards compatibility with all generations of compatible blade servers supported. HPE’s BladeSystem c7000 will hold a maximum of eight HPE BL680c Gen7 blades, while the c3000 can handle up to four BL680c blades.

HPE BladeSystem c7000 Enclosure

Performance

Intel’s 7500 chipset supports a maximum of four Intel Xeon E7-4800 family processors or the E7-8867L processor with up to 10 cores. Administrators can install two, three or four processors, depending on business needs. All processors support both Hyper-Threading and Turbo Boost Technology except the E7-4807 processor.

proliant BL680c Gen7 front detail no cover panel

Memory

With all four processors installed, a maximum of 64 memory modules can be installed for an impressive 2TB of memory using 32GB RDIMMs. Only DDR3 registered (RDIMM) memory modules are supported on the BL680c Gen7 and depending on your choice of processor, memory, and memory configuration, the system will run at a maximum of 1066MHz.

Storage

There are four hot plug SAS/SATA/SSD drive bays on the front of the blade that will support up to 4.8TB using four 1.2TB SAS drives—drive types cannot be mixed. An integrated HP Smart Array P410i controller provides internal storage support and limited RAID. Optional Smart Array RAID mezzanine controllers are available to support external storage and are supported with Battery-Backed Write Cache (BBWC) or Flash-Backed Write Cache (FBWC). There are a total of four battery cache options for the P410i controller and for use with other Smart Array RAID controllers.

Expansion

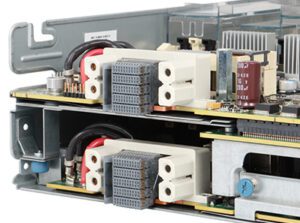

hpe BL680c Gen7 back of system showing enclosure connection

Up to seven PCIe mezzanine cards are supported and can be used for Quad Data Rate (QDR) InfiniBand (IB), Fibre Channel, FlexFabric, and Smart Array RAID controllers. The system also has integrated graphics support for resolutions up to 1280 x 1024.

Management

HP offers a range of management tools at the chassis, enclosure, and data center level, to ensure you get the most out of your investment. As with all ProLiant servers, insight management software, iLO 3.0, and several other options are included with the purchase. HP OneView for converged infrastructure management, combines server, storage, and networking into an easy to read dashboard and can also help manage third-party appliances in the data center through a single interface.

PROCESSOR – 4 SOCKET
    • Intel® Xeon® processor E7-4800 and E7-8800 product families

Core Options:

  • 6, 8, 10
CHIPSET
    Intel 7500 Chipset
INTEGRATED MANAGEABILITY
    HP Integrated Lights-Out 3 (iLO 3)
MEMORY
    • Type:

    • DDR3-1333 and DDR3-1066 Registered (RDIMM) (operating up to 1066 MHz)

DIMM Slots Available:

    • 64 DIMM Slots Available

Maximum:

  • 2.0TB (64 x 32GB RDIMMs)
NETWORK CONTROLLER
  • Six (6) embedded HP NC553i 10Gb FlexFabric adapter ports supporting autosensing 10Gb/1Gb Ethernet, FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot
  • One Ethernet-specific slot (mezzanine slot 6) supporting a dual-port mezzanine card for a total of eight (8) “embedded” Ethernet adapter ports
  • One (1) 10/100 network adapter port dedicated to iLO 3 Management
I/O EXPANSION SLOTS
    Seven (7) mezzanine expansion slots as follows:

  • Four (4) Type II (25 watts) x8 PCIe Gen2, mezzanine slots 2, 3, 4, 7 supporting QDR IB, 4Gb and 8Gb FC, 10Gb FlexFabric, 10Gb Flex10, 10GbE, 1GbE, and the Smart Array RAID controllers.
  • Two (2) Type I (15 watts) x4 PCIe Gen2, mezzanine slots 1 and 5 supporting 4Gb and 8Gb FC,10Gb FlexFabric, 10Gb Flex10, 10GbE , and 1GbE
  • One (1) Type I (15 watts) x8 PCI Gen 2 dual-port Ethernet-specific slot (mezzanine slot 6)
STORAGE CONTROLLER
  • Integrated SAS version 2.0 (6Gb) HP Smart Array P410i Controller with RAID 0, 1 and 1+0
  • Optional Smart Array RAID mezzanine controllers (with BBWC and FBWC) for connection to external storage
MAXIMUM INTERNAL STORAGE
    • Maximum Internal Storage: 4.8TB
Hot-plug SAS 4.8TB 4 x 1.2TB drives
Hot-plug SATA 4.0TB 4 x 1.0TB drives
Hot-plug SAS SSD 3.2TB 4 x 800GB drives
Hot-plug SATA SSD 3.2TB 4 x 800GB drives
INDUSTRY STANDARD COMPLIANCE
  • ACPI 2.0 Compliant
  • PCI 2.2 Compliant
  • Microsoft® Logo certifications
  • USB 2.0
  • Secure Digital 2.0
  • TMP 1.2
  • IEEE (see the NC553i Technical Specifications section)
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP
  • SSL 2.0
  • Active Directory v1.0 (Windows 2003)
  • IPMI 2.0
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Citrix XenServer
  • Oracle Solaris
  • VMware
ENCLOSURES
    Enclosures Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

  • HPE BladeSystem c7000 rack enclosure
  • HPE BladeSystem c3000 rack enclosure
GRAPHICS
    Integrated ATI RN-50 1280 x 1024 x 16M color
FORM FACTOR
    Full height, double wide server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures.
HPE INSIGHT MANAGEMENT SOFTWARE
  • HPE Service Pack for ProLiant
  • HP Insight Foundation
SECURITY
  • Intel® AES-NI
  • Power-on password
  • Administrator’s password
  • Integrated Lights-Out 3
  • Keyboard password
  • External USB port enable/disable
  • Network server mode
  • Serial interface control
  • TPM (Trusted Platform Module) 1.2 option
