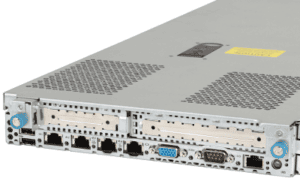

Servidor HP Proliant DL360 (G7)

Description

The HPE ProLiant DL360 Gen7 server delivers high-performance capabilities with two processors, eighteen DIMM slots, and supports a maximum 9.6TB of storage. This system offers double the amount of networking ports than the previous generation. HPE’s iLO 3.0 controller delivers remote control access eight times faster than iLO 2.0. With Gen7 server line, HPE released their new Common Slot power supplies which have an energy efficiency rating of 92%.

Performance

A maximum of two Intel Xeon 5500 or Xeon 5600 series four or six core processors are supported on this rack server. High performance processors are denoted with an ‘X’, but administrators can opt for lower wattage ‘E’-class or ‘L’ rated processors for lower cost. Xeon 5500s can be installed on the system, if preferred, to further lower the system’s overall cost.

Memory

Registered (RDIMM) or unbuffered (UDIMM) DDR3 memory modules are supported on the HPE DL360 Gen7, but mixing of different memory types is not supported. Each processor socket contains three memory channels that support three DIMMs each for a total of nine DIMM slots per installed processor, or a total of eighteen DIMMs with dual processors. With twelve 32GB RDIMM memory modules, the system can support a maximum memory capacity of 384GB. When using 16GB or 32GB memory modules, only twelve DIMM slots will be supported and both processors must be installed.

Storage

Administrators can choose between a 4 SFF or 8 SFF hot-plug drive bay configuration. Large form factor drives are not supported. If desired, an optional optical drive can be added to the 4 SFF configuration only. A maximum internal storage of 9.6TB is supported when using eight 1.2TB SAS hot plug drives in all eight slots.

Expansion

A total of two expansion slots are supported—one full-size PCIe adapter and one low-profile card. An optional riser kit can be purchased to support a PCI-X card in the second expansion slot. This system is equipped with twice the amount of networking ports than previous generations with four 1GbE ports.

Management

Proper cooling is maintained with HPE’s iLO3 software which monitors server temperature and sends corrective signals to the fans. iLO3 software automatically monitors hardware statuse and runs off its own dedicated processor, memory, and network interface. With an upgraded management package, users can monitor and graph power consumption and cap the amount of energy used to run the system. Local troubleshooting has been improved with a small slide-out diagnostic panel on the front of the server.

Summary

The HPE ProLiant DL360 Gen7 server delivers high-performance computing capabilities in a small 1U chassis. Intel’s 5500 series and 5600 series processors offer a variety of performance options with processor speeds ranging from 1.60GHz up to 3.46GHz. This system supports up to 18 DIMM slots with both processors installed, but when using 16GB or 32GB memory modules only a maximum of 12 DIMM slots can be populated. HPE’s iLO3 controller offers faster remote control performance and improved virtualization capabilities than its iLO2 predecessor.

PROCESSOR – 2 SOCKETS

• Intel® Xeon® X5600 processor product family

• Intel® Xeon® E5600 processor product family

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

CHIPSET

MEMORY

• Type
  • DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available

• • 18 (3 DIMM slots per Channel/ 3 channels per processor)

Standard (Performance Models)

• • 12GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Base Models)

• • 6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Entry Model)

• • 4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Efficiency Model)

• • 4GB (2 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs

Maximum Capacity (RDIMM)

• • 384GB (12 slots x 32GB @800MHz)

Maximum Performance Capacity (RDIMM)

• • 192GB (6 slots x 32GB @1066MHz)

Maximum Capacity (UDIMM)

• 48GB (12 slots x 4GB @ 1333MHz)

NETWORK CONTROLLER

EXPANSION SLOTS

Expansion Slot #	Technology	Bus Width	Connector Width	Form Factor
1	PCIe	X8	X8	Low profile slot
2	PCIe	X16	X16	Full-length, full height slot
3	PCI-X	64-bit		Full-length, full height slot

STORAGE CONTROLLER

• Entry Models
  • HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)

Base Models

• • HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Performance Models

• • HP Smart Array P410i/1G FBWC Controller (RAID 0/1/1+0/5/5+0)

Efficiency Models

• HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)

INTERNAL STORAGE DEVICES

• Diskette Drive
  • None

Optical Drive

• • Optional: DVD-ROM, DVD-RW

Hard Drives

• • None Standard

Drive Bays

• 4 SFF Bays standard with option for up to 8 SFF drive bays total

MAXIMUM INTERNAL STORAGE

Hot Plug SAS	9.6TB	8 x 1.2TB SAS
Hot Plug SATA	4.0TB	8 x 500GB SATA
Hot Plug SAS SSD	6.4TB	8 x 800GB SAS SSD
Hot Plug SATA SSD	3.2TB	8 x 400GB SATA SSD

INTERFACES

• Serial
  • 1

Video

• • 1

Network RJ-45

• • 4

iLO 3 remote RJ-45 management port

• • 1

SD slot

• • 1 Internal secure

USB 2.0 Ports

• 4 total: 2 rear, 1 front, 1 internal (secure)

SYSTEM FANS

• 3 fan modules ship standard in 1 processor models

• 4 fan modules ship standard in 2 processor models

GRAPHICS

• Integrated ATI ES1000, 32MB video standard

CHASSIS

HP INSIGHT MANAGEMENT

• HP Service Pack for ProLiant
• HP Insight Foundation
• HP Integrated Lights-Out 3 (iLO 3)

SECURITY

• Power-on password
• Keyboard password
• QuickLock, Network Server Mode
• Serial interface control
• Administrator’s password
• iLO 3 (Integrated Lights-Out 3) has 12 customizable user accounts and SSL encryption
• iLO 3 can be disabled via a Global Setting
• iLO Advanced supports directory services integration
