Servidor HP Proliant DL380 (G7)

Aluguel, locação e comodato
HP Proliant DL380 (G7)
Overview
Specification
Documentation

Description

hpe dl380 gen7 front perspective with bezel

The HPE ProLiant DL380 Gen7 server provides high-performance, flexible expansion, and impressive storage capabilities. The system has advanced server management features with HPE’s iLO 3.0 controller delivering remote access that’s almost eight times faster than previous generations. Intel’s Xeon 5600 series processors automatically adjust server performance according to application needs and intelligently regulate power consumption.

Performance

This system can support up to two Intel Xeon 5503 2-core processors or choose from several Xeon 5600 series six-core, quad-core, or dual-core processors. Intel’s Turbo Boost Technology uses available power to increase processor frequency for faster performance.

Memory

In a two processor configuration, the HPE DL380 Gen7 will support 12 DDR3 memory modules running at speeds up to 1333MHz. With 32GB registered (RDIMM) memory modules in all twelve slots, the system will support a maximum of 384GB of memory in a dual-processor configuration. Unbuffered (UDIMM) memory is also supported on the system for applications that are less memory intensive, and will only support up to 48GB using 2GB memory modules. Mixing different types of memory modules is not supported.

Storage

Up to sixteen SFF SAS hot plug drive bays are supported on this system, but this configuration does not support an optional optical drive bay. In addition, another Smart Array or Smart SAS expander PCIe card will need to be installed to manage the second HD tray. In a single processor configuration, the system supports a maximum of eight SFF SAS hot plug drive bays with the option to add a slimline optical drive bay. A maximum internal storage capacity of 24TB is provided with a six LFF drive bay tray, but this configuration does not support the optical drive.

Expansion

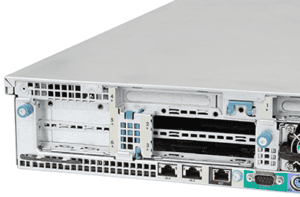

hpe dl380 gen7 power supply

A single riser can support three PCIe slots and a second riser can be added with three additional slots to support a maximum of six expansion slots. Both the primary and secondary risers have options with a mix of PCIe and PCI-X slots.

Management

HPE’s iLO 3.0 controller provides virtual media services three times faster than the iLO 2.0 controller, and remote management is now eight times faster than before. This system offers a variety of advanced management tools, such as video playback and power management features, with the purchase of an upgraded license. Detailed reports on asset management and server operations are displayed on a smart browser interface with HPE’s Insight Control software to simplify server management.

Summary

The HPE ProLiant DL380 Gen7 server packs high performance, flexible expansion options, and large internal storage capacity into a 2U chassis. Xeon 5600 series processors support Intel’s Hyper-Threading technology to deliver higher processing throughput and improved energy efficiency. HPE’s “Sea of Sensors” technology adds 32 smart thermal sensors to the system to automatically control fan speeds in the chassis reducing energy consumption and cost while enhancing server performance. Server deployment and serviceability is hassle-free with the addition of a quick-deploy rail system and tool-free modular components.

PROCESSOR – 2 SOCKETS
    • Intel® Xeon® X5600 processor product family

    • Intel® Xeon® E5600 processor product family

    Intel® Xeon® L5600 processor product family
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Solaris
  • VMware
  • Citrix XenServer
CHIPSET
    Intel® 5520 Chipset
MEMORY
    • Type

    • DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

Standard (Performance Models)

    • 12GB (6 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Base Models)

    • 6GB (3 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Entry Models)

    • 4GB (2 x 2GB) PC3-10600R (DDR3-1333) Registered DIMMs

Standard (Efficiency Models)

    • 4GB (2 x 2GB) PC3-10600E (DDR3-1333) Unbuffered DIMMS

Maximum (RDIMM)

    • 384GB (12 x 32GB) for Registered Memory configurations

Maximum (UDIMM)

  • 48GB (12 x 2GB) for Unbuffered Memory configurations
NETWORK CONTROLLER
    Two HP NC382i Dual Port Multifunction Gigabit Server Adapters (four ports total) with TCP/IP Offload Engine, including support for Accelerated iSCSI
EXPANSION SLOTS

Primary Riser (Standard)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
1 PCIe Gen2 X8 X16 7 Full Length, Full Height Slot
2 PCIe Gen2 X4 X8 10 Half-length, full height slot
3 PCIe Gen2 X4 X8 13 Half-length, full height slot

PCIe Riser (Optional Secondary)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
4 PCIe Gen2 X8 X16 16 Full Length, Full Height slot
5 PCIe Gen2 X4 X8 20 Half length, Half height slot
6 PCIe Gen2 X4 X8 23 Half length, Half height slot

PCIe/PCI-X Riser (Optional Primary)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
1 PCI-X 64-bit N/A 7 Full Length, Full Height slot
2 PCI-E Gen2 X8 X16 11 Half Length, Full Height slot
3 PCI-E Gen2 X4 X8 15 Half Length, Full Height slot

PCIe/PCI-X (Optional Secondary)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
4 PCI-X 64-bit N/A 19 Full Length, Full Height slot
5 PCI-E Gen2 X8 X16 23 Half Length, Half Height slot
6 PCI-E Gen2 X4 X8 27 Half Length, Half Height slot

x16 PCIe Riser (Optional Primary)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
1 PCIe Gen2 x16 x16 13 Full Length, Full Height slot

x16 PCIe Riser (Optional Secondary)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
4 PCIe Gen2 x16 x16 16 Full Length, Full Height slot
STORAGE CONTROLLER
    • Entry Models

    • HP Smart Array P410i/Zero Memory Controller (RAID 0/1/1+0)

Base Models

    • HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)

Performance Models

  • HP Smart Array P410i/1G FBWC Controller (RAID 0/1/1+0/5/5+0)
INTERNAL STORAGE DEVICES
    • Diskette Drive

    • None Standard

Optical Drive

    • None Standard on Entry, High Efficiency, and Base Models
    • HP Slim SATA DVD RW Optical Drive Standard on Performance Models

Hard Drives

    • None Standard

Hard Drive Bays

  • Standard (8) small form factor (SFF) hot-plug drive bays to support Serialattached SCSI (SAS) and Serial ATA (SATA) drives
  • Optional second drive cage for additional (8) SFF drive bays (total 16)
  • Optional cage for (6) Large Form Factor SAS/SATA hard drive bays
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 19.2TB 16 x 1.2TB (with optional SFF drive cage)
Hot Plug LFF SATA 24.0TB 6 x 4TB (with optional LFF drive cage)
Hot Plug SFF SAS SSD 12.8TB 16 x 800GB (with optional SFF drive cage)
Hot Plug SFF SATA SSD 6.4TB 16 x 400GB (with optional SFF drive cage)
Hot Plug LFF SATA SSD 6.4TB 16 x 400GB (with optional SFF drive cage)
INTERFACES
    • Serial

    • 1

Video

    • 2 (1 front, 1 back)

Network RJ-45

    • 4

HP iLO Remote Management Port

    • 1

Keyboard

    • 1

Pointing Device (Mouse)

    • 1

Graphics

    • 1

SD slot

    • 1

USB 2.0 Ports

  • 5 total: 2 front, 2 back, 1 internal
SYSTEM FANS
    Fully redundant hot plug fans ship standard (N+1)
GRAPHICS
    Integrated ATI ES1000, 64MB video standard
CHASSIS
    • Rack (2U)

    Height 3.38-inch (8.59 cm); Width: 17.25 (44.54 cm); Depth: 27.25 inches (69.98 cm)
HP INSIGHT MANAGEMENT
  • HP Service Pack for ProLiant
  • HP Insight Foundation
  • HP Integrated Lights-Out (iLO) for ProLiant
SECURITY
  • Power-on password
  • Keyboard password
  • QuickLock, Network Server Mode
  • Serial interface control
  • Administrator’s password
