Servidor HP Proliant DL380E (G8)

Aluguel, locação e comodato
HP Proliant DL380E (G8)
Overview
Specification
Documentation

Description

hpe dl380e gen8 front perspective with bezel

HPE announced several new features with their ProLiant DL380e Gen8 servers, like a mobile app for remote management powered by iLO 4.0. Also new from previous generations this new server features more thermal sensors throughout the chassis to create a “3D sea of sensors” to reduce cooling costs. HPE also made their power supplies more efficient. Although the efficiency value is still at 94% like older generations.

Performance

Intel’s C600 Series chipset supports a maximum of two Intel E5-2400 or Intel E5-2400 v2 processors controlling up to twelve DDR3 memory modules. V2 processors provide a 35% performance increase at the same or lower power levels than previous generation Xeon processors. HPE’s 8th generation servers also introduced HPE’s CPU Smart Socket Guide, giving a more precise approach to processor installation reducing handling time and potential damage to the processor.

Memory

In a two-processor configuration, the HPE DL380e Gen8 server can support up to twelve DDR3 memory modules for a maximum of 384GB of memory. Unbuffered (UDIMM), registered (RDIMM), and load-reduced (LRDIMM) memory modules are all supported, but mixing different type of memory modules is not supported. Using HPE’s SmartMemory will provide a 16.6% increase in throughput and consume 20% less power when compared to third-party memory. Memory resiliency was also increased by 35% in HPE’s ProLiant Gen8 servers with HPE’s Advanced Memory Error Detection Technology.

Storage

HPE’s ProLiant DL380e Gen8 server can support 8 SFF, 8 LFF, 12 LFF, or 25 SFF hot plug drive bays. Both the 8 SFF and 8 LFF configurations can support an optional optical media bay. With the 12 LFF configuration, each storage device has its own private connection through a point-to-point backplane. Using the 12 LFF configuration, this server can support a maximum internal storage capacity of 56TB. HPE’s new SmartDrives communicate drive activity in a more precise manner to reduce the chance of human error and potential data loss that results when a drive is pulled prematurely.

Expansion

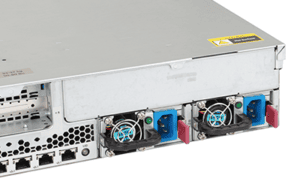

hpe dl380e g8 server power supply

There are up to four PCIe expansion slots with a single processor, or six PCIe slots with the addition of a secondary riser. Although the majority of the expansion slots support PCIe 3.0, the fourth expansion slot supports PCIe Gen2.

Management

Management of the system is enhanced with HPE’s iLO 4.0 Management Engine, a remote server management chip embedded on the system board. Management tools are laid out in a more efficient manner and can be easily accessed on a single screen with HPE’s ProLiant Gen8 servers. In addition to the standard management tools included on HPE’s Management Engine, users have the option to upgrade to more comprehensive management tools with an Advanced license key which unlocks the full set of remote administration functionality. Matrix Operating Environment, another advanced management tool offered by HPE, reduces the cost of common data center tasks by up to 40% through its integrated command center.

Summary

HPE’s ProLiant DL380e Gen8 is not your average entry level server. Featuring integrated management tools, dynamic computing ability, and enhanced configuration flexibility, this platform is the perfect solution for datacenters and SMBs alike. HPE’s Dynamic Workload Acceleration provides smarter data protection, real-time workload-aware analysis, and faster solid state performance than previous generations. Intel’s E5-2400 processor product family automatically regulates power consumption delivering higher performance and power efficiency. HPE’s Smart Storage offers a 50% increase in video streaming application performance and HPE’s 3D array of sensors allows for more efficient cooling. Upgrades and serviceability has become hassle-free in HPE’s ProLiant Gen8 servers with the addition of tool-less access to components and new “Snap and Go” rail kits.

PROCESSOR – 2 SOCKETS
    Intel® Xeon® processor E5-2400 and E5-2400 v2 product families
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Solaris
  • VMware
CHIPSET
    Intel® C600 Series Chipset
ON SYSTEM MANAGEMENT CHIPSET
    HP iLO (Firmware: HP iLO 4)
MEMORY
    • Type

    • DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)

Maximum Capacity (LRDIMM)

    • 384GB (12 x 32GB LRDIMM @1333MHz)

Maximum Capacity (RDIMM)

    • 192GB (12 x 16GB RDIMM @1600MHz or 1333MHz)

Maximum Capacity (UDIMM)

  • 96GB (12 x 8GB UDIMM @1333MHz)
NETWORK CONTROLLER
    HP Ethernet 1Gb 4-port 366i Adapter
EXPANSION SLOTS
    • Primary Riser (Standard)
Expansion Slot # Technology Bus Width Connector Width Form Factor
1 PCIe 3.0 X4 X8 Full Length, Full Height Slot
2 PCIe 3.0 X8 X16 Half Length, Full Height Slot
3 PCIe 3.0 X8 X8 Half Length, Full Height Slot
4 PCIe 2.0 X4 X8 Low Profile

Primary Riser (Riser with SAS)

Expansion Slot # Technology Bus Width Connector Width Form Factor
1 PCIe 3.0 X4 X8 Full Length, Full Height Slot
2 PCIe 3.0 X8 X16 Half Length, Full Height Slot
3 PCIe 3.0 NA NA NA
4 PCIe 2.0 X4 X8 Low Profile

Secondary Riser (Optional)

Expansion Slot # Technology Bus Width Connector Width Form Factor
5 PCIe 3.0 X16 X16 Full Length, Full Height Slot
6 PCIe 3.0 X8 X16 Half Length, Full Height Slot
STORAGE CONTROLLER
    • Entry Model – SATA

    • HP Dynamic Smart Array B120i Controller

Entry Model – SAS

    • HP Dynamic Smart Array B320i/512MB FBWC Controller

Base Models – LFF

    • HP Dynamic Smart Array B320i/512MB FBWC Controller

Base Model – SFF

    • HP Dynamic Smart Array B320i/512MB FBWC Controller

High Performance Models

    • HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)

Storage Models – LFF

    • HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)

Storage Models – SFF

  • HP Smart Array P420/2GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)
INTERNAL STORAGE DEVICES
    • Diskette Drive

    • None

Optical Drive

    • Optional: DVD-ROM, DVD-RW

Hard Drives

    • None ship standard

Drive Bays

  • 8 SFF drive bays total with Optical Bay
    Optional: +8SFF drive bay (total of 16SFF drive bays)
  • 8 LFF drive bays total with Optical Bay
  • 12 LFF drive bays total without Optical Bay
    Optional: +2 Rear Drive Bays (LFF or SFF)
  • 25 SFF drive bays total without Optical Bay
    Optional: +2 Rear Drive Bays (LFF or SFF)
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 32.4TB 27 x 1.2TB (with 25SFF drive cage + Rear 2SFF drive cage)
Hot Plug SFF SATA 27.0TB 27 x 1TB (with 25SFF drive cage + Rear 2SFF drive cage)
Hot Plug LFF SAS 56.0TB 14 x 4TB (with 12LFF drive cage + Rear 2LFF drive cage)
Hot Plug LFF SATA 56.0TB 14 x 4TB (with 12LFF drive cage + Rear 2LFF drive cage)
Hot Plug SFF SAS SSD 21.6TB 27 x 800GB (with 25SFF drive cage + Rear 2SFF drive cage)
Hot Plug SFF SATA SSD 21.6TB 27 x 800GB (with 25SFF drive cage + Rear 2SFF drive cage)
Hot Plug LFF SATA SSD 11.2TB 14 x 800GB (with 12LFF drive cage + Rear 2LFF drive cage)
INTERFACES
    • Serial

    • 1

Video

    • 2 (1 front, 1 back) not active simultaneously

LOM Network Ports

    • 4x1GbE ports

HP iLO Remote Management Network Port

    • 1 Gb Dedicated

SD slot

    • 1 Internal Secure

USB 2.0 Ports

  • Up to 7 total: up to 2 front, 4 back, 1 internal (secure)
SYSTEM FANS
  • (4) Hot-Plug Non-redundant Fans ship standard in 1P Models
  • (6) Hot-plug Redundant Fans ship standard in 2P Models
GRAPHICS
  • Integrated Matrox G200 video standard
CHASSIS
    • 2U Rack

    • 8 SFF Drive Bay Version: 3.44 (8.75 cm) Height x 17.54″ (44.55 cm) Width x 27.5″ (69.85 cm) Length

    • 8 LFF Drive Bay Version: 3.44 (8.75cm) Height x 17.54″ (44.55 cm) Width x 29.5″ (74.94cm) Length

    • 12 LFF Drive Bay Version: 3.44 (8.75cm) Height x 17.54″ (44.55 cm) Width x 29.5″ (74.94cm) Length

    25 SFF Drive Bay Version: 3.44 (8.75 cm) Height x 17.54″ (44.55 cm) Width x 27.5″ (69.85 cm) Length
ON SYSTEM MANAGEMENT
    HP iLO Management Engine:

  • HP iLO
  • HP Agentless Management
  • HP Active Health System
  • HP Intelligent Provisioning
  • HP iLO Mobile App
SECURITY
  • Power-on password
  • Serial interface control
  • Administrator’s password
