Servidor HP Proliant DL380P (G8)

Aluguel, locação e comodato
HP Proliant DL380P (G8)
Overview
Specification
Documentation

Description

hpe dl380p gen8 front perspective with bezel

When it was released, HPE’s ProLiant DL380p Gen8 server set the data center standard for 2U, 2-socket rack servers. The design features flat cabling and clear baffles over the components for easy access to parts for replacing or upgrading. HPE’s new SmartDrive tray carrier design incorporates LED lights to give Administrators an easy way to check HD status. A new FlexibleLOM allows for easy network connectivity upgrades without taking any PCIe slots. Even at a lower-spec configuration, this ProLiant server will provide SMBs and data centers with the performance and reliability they need.

Performance

A maximum of two processors can be installed, either the Intel E5-2600 or E5-2600 v2 family processors. V2 processors provide a 35% performance increase from the previous generation. Furthermore, HPE’s ProLiant Gen8 servers implemented an updated processor installation with a Smart Socket Guide which makes for easy installation and reduces the risk of damaging the CPU.

Memory

HPE introduced their SmartMemory with the ProLiant Gen8 series. HPE SmartMemory is tested and qualified by HPE to deliver the highest level of performance and bandwidth. Each processor controls four memory channels with three DIMMs each for a total of 12 DIMMs per processor, or 24 DIMMs with dual processors. The system supports unbuffered (UDIMM), registered (RDIMM), and load-reduced (LRDIMM) memory modules. Using LRDIMM, the system is capable of supporting a maximum of 768GB using 24 x 32GB memory modules. Memory speeds of up to 1066 MHz are supported on HPE’s Gen8 servers, but this capability is dependent on the processor model, memory type, and memory configuration. Mixing different types of memory modules is not supported.

Storage

Depending on the desired configuration, the HPE DL380p Gen8 server can support 8 SFF, 16 SFF, 25 SFF, 8 LFF, or 12 LFF hot plug drive bays. Both the 8 SFF and 8 LFF configurations support an optional optical drive. The 16 SFF configuration requires the addition of a second controller for the second drive cage, whereas both the 12 LFF and 25 SFF configurations include a built in expander that is driven by the embedded controller. This server can support a maximum storage capacity of 270TB outfitted with 25 SFF drives, or 288TB with 12 large form factor hard drives installed.

Expansion

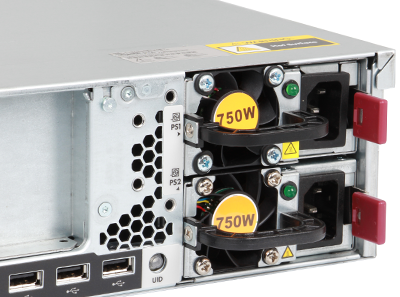

hpe dl380p g8 server power supply

A maximum of six PCIe 3.0 expansion slots are available, but in order to activate all PCIe slots the second processor must be installed and an additional Power Cord Option is required.

Management

This server features extensive Management Engine. A comprehensive set of embedded features come standard on all ProLiant Gen8 servers thanks to the embedded management capabilities of HPE’s integrated lights out (iLO) 4.0. The dedicated iLO port allows users to manage the ProLiant server without taking one of the four 1 Gigabit Ethernet ports offered on-board. iLO Advanced, allows for remote server management, reducing the time to resolution. HPE’s Smart Update reduces deployment time by securely and systematically updating the server infrastructure. Integrated Lifecycle Automation features preemptive health monitoring and alerting as well as automated firmware and system software maintenance.

Summary

HPE’s Gen8 servers are the first in the ProLiant series to include HPE’s 3D array of temperature sensors, providing better cooling and better energy consumption. HPE’s SmartMemory was also introduced improving performance by 16.6% over standard memory modules. With enhanced configuration options, a multitude of management tools that are easier to access, and its customer-inspired design, gives HPE’s ProLiant DL380p Gen8 server an edge over the competition.

PROCESSOR – 2 SOCKETS
    Intel® Xeon® processor E5-2600 and E5-2600 v2 product families
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Canonical Ubuntu
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Linux
  • VMware
  • Citrix XenServer
CHIPSET
    Intel® C600 Series Chipset
ON SYSTEM MANAGEMENT CHIPSET
    HP iLO (Firmware: HP iLO 4)
MEMORY
    • Type

    • DDR3 Load Reduced (LRDIMM), Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available

    • 24 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)

Maximum Capacity (LRDIMM)

    • 768GB (24 x 32GB LRDIMM @1066MHz)

Maximum Capacity (RDIMM)

    • 384GB (24x 16GB RDIMM @1333MHz)

Maximum Capacity (UDIMM)

    • 128GB (16 x 8GB UDIMM @1600MHz)

Maximum Capacity (HDIMM)

  • 768GB (24 x 32GB HDIMM @1333MHz)
NETWORK CONTROLLER
    • Entry Models

    • HP Ethernet 1Gb 4-port 331FLR Adapter

Base Models

    • HP Ethernet 1Gb 4-port 331FLR Adapter

25SFF Models

    • HP FlexFabric 10Gb 2-port 533FLR-T Adapter

Performance Models

    • HP Ethernet 10Gb 2-port 530FLR-SFP+ Adapter
    • HP Ethernet 1Gb 4-port 331FLR Adapter
    • HP FlexFabric 10Gb 2-port 533FLR-T Adapter

Energy Star Models

  • HP Ethernet 1Gb 4-port 331FLR Adapter
EXPANSION SLOTS
    • Primary Riser (Standard)
Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
1 PCIe 3.0 X16 X16 7 Full Length, Full Height
2 PCIe 3.0 X8 X8 10 Half Length, Full Height
3 PCIe 2.0 X4 X8 13 Half Length, Full Height

PCIe Riser (Optional 3-slot)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
4 PCIe 3.0 X16 X16 16 Full Length, Full Height
5 PCIe 3.0 X8 X8 20 Half Length, Full Height
6 PCIe 3.0 X8 X8 23 Half Length, Full Height

PCIe Riser (Optional 2-slot)

Expansion Slot # Technology Bus Width Connector Width Bus Number Form Factor
4 PCIe 3.0 X16 X16 16 Full Length, Full Height
5 PCIe 3.0 X16 X16 16 Half Length, Full Height
STORAGE CONTROLLER
    • Entry Models

    • HP Smart Array P420i/ZM (RAID 0/1/1+0)

Base Models

    • HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

25SFF Models

    • HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Performance Models

    • HP Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Energy Star Models

  • HP Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)
INTERNAL STORAGE DEVICES
    • Diskette Drive

    • None

Optical Drive

    • Ships standard in Performance Models
    • Optional: DVD-ROM, DVD-RW

Hard Drives

    • None ship standard

Drive Bays

  • Standard: 8SFF drive bays total with Optical Bay, 8 LFF drive bays total with Optical Bay, 12LFF drive bays total, or 25SFF drive bays total
  • Optional: +8SFF drive bay (total of 16SFF drive bays)
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 50.0TB 25 x 2TB (with optional SFF drive cage)
Hot Plug SFF SATA 50.0TB 25 x 2TB (with optional SFF drive cage)
Hot Plug LFF SAS 96.0TB 12 x 8TB (with optional LFF drive cage)
Hot Plug LFF SATA 96.0TB 12 x 8TB (with optional LFF drive cage)
Hot Plug SFF SAS SSD 48.0TB 25 x 1.92TB (with optional SFF drive cage)
Hot Plug SFF SATA SSD 96TB 25 x 3.84TB (with optional LFF drive cage)
Hot Plug LFF SAS SSD 19.2TB 12 x 1.6TB (with optional LFF drive cage)
Hot Plug LFF SATA SSD 46.08TB 12 x 3.84TB (with optional LFF drive cage)
INTERFACES
    • Serial

    • 1

Video

    • 2 (1 front, 1 back) not active simultaneously

FlexibleLOM Network Ports

    • Some models come standard with 4 x 1Gb ports while others come with 2 x 10Gb or 2 x 10Gb base-T ports

HP iLO Remote Management Network Port

    • 1 Gb Dedicated

SD slot

    • 1 Internal Secure

USB 2.0 Ports

  • Up to 7 total: up to 2 front, 4 back, 1 internal
SYSTEM FANS
  • 2P Models have (6) (N+1 redundancy standard)
  • 1P Models have (4) (N+1 redundancy standard)
GRAPHICS
  • Integrated Matrox G200 video standard
  • HP iLO 4 On System Management Memory
CHASSIS
    • 2U Rack

    • 8 SFF & 25SFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54″ (44.55 cm) Width x 27.5″ (69.85 cm) Length

    8 LFF & 12LFF Drive Bay Version: 3.44 (8.74 cm) Height x 17.54″ (44.55 cm) Width x 29.5″ (74.94cm) Length
ON SYSTEM MANAGEMENT
    HP iLO Management Engine:

  • HP iLO
  • HP Agentless Management
  • HP Active Health System
  • HP Intelligent Provisioning
  • HP iLO Mobile App
HP INSIGHT MANAGEMENT
    HP Service Pack for ProLiant (SPP)
SECURITY
  • Power-on password
  • Serial interface control
  • Administrator’s password
