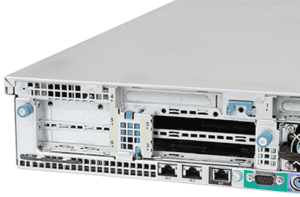

Servidor HP Proliant DL385 (G7)

Description

The HPE ProLiant DL385 Gen7 Server features dual processors and is ideal for memory-intensive applications such as virtualization projects, and other business needs. Administrators can put their data security concerns to rest with data encryption provided through HPE’s Trusted Platform Module (TPM). HPE’s Insight Control management provide Administrators with tools simplifying server management and increasing productivity.

Performance

This system can support up to two AMD Opteron 6100 or 6200 series processors. Administrators looking for a larger amount of cache should opt for the 6200 series of processors which offers 16 MB L3 cache compared to the 12 MB L3 cache supported with AMD’s 6100 series processors. Opteron 6200 series also provides a larger variety of core options than the 6100 series processors. Hot-plug redundant power supplies and hot plug redundant fans increase server uptime.

Memory

This server can support 24 DDR3 registered (RDIMM) or unbuffered (UDIMM) memory modules. With all 24 slots filled, UDIMM memory modules can provide a memory capacity of 64GB. For memory intensive applications, administrators can configure the system with RDIMM memory modules to provide a maximum memory capacity of 512GB. Administrators can turn off visible processor software cores with AMD’s Core Select when memory performance is more important than core count.

Storage

Depending on the configuration desired, this server can support 8 SFF, 16 SFF, or 6 LFF SAS/SATA hot plug drive bays. With the 8 SFF configuration, an optional slimline optical drive can be included with the HPE DL385 Gen7 but this upgrade is not available with other drive configurations. A maximum internal storage of 24TB is provided when using six 4TB drives. If desired, the embedded smart array controller allows administrators to add battery-backed write cache or flash-backed write cache to the system.

Expansion

This system provides a total of six PCI expansion slots, but only three slots are supported in a single-processor configuration. Eight different riser options (four primary and four secondary) are available to choose from depending on the technology, bus width, and form factor needed.

Management

Server downtime is reduced with HPE’s Smart Update Manager (HP SUM) which provides a simplified user interface to guide users through server analyses and updates. The systems Insight Control proactively monitors server performance and health and allows administrators to manage both virtual and physical IT through a single console. Dynamic Power Capping technologies optimize your power infrastructure, and improve server capacity by up to three times. To further increase productivity, hardware errors can be easily isolated with the DL385 Gen7’s front-accessible Systems Insight Display.

Summary

The HPE ProLiant DL385 Gen7 server provides an impressive amount of memory capacity with a sufficient internal storage to provide the perfect solution for a diverse range of applications. NIC features, along with the server’s integrated VMware and XenServer virtualization technology, allow for virtual machines to easily be deployed. A variety of different expansion riser options provide a great deal of I/O flexibility. The system’s energy efficiency, upgradability, and configuration flexibility enable it to meet the demands of small business as well as enterprise environments.

PROCESSOR – 2 SOCKETS

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

CHIPSET

MEMORY

• Type
  • DDR3 Registered (RDIMM) and Unbuffered (UDIMM)

Maximum (RDIMM)

• • 512GB

Maximum (UDIMM)

• 64GB

NETWORK CONTROLLER

EXPANSION SLOTS

• Primary Riser (Standard)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCIe 2.0	X8	X16	6	Full Length, Full Height
2	PCIe 2.0	X4	X8	12	Half Length, Full Height
3	PCIe 2.0	X4	X8	15	Half Length, Full Height

PCIe Riser (Optional Secondary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
4	PCIe 2.0	X8	X16	18	Full Length, Full Height
5	PCIe 2.0	X4	X8	24	Low Profile
6	PCIe 2.0	X4	X8	27	Low Profile

PCIe/PCI-X Riser (Optional Primary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCI-X	64-bit	N/A	7	Full Length, Full Height
2	PCI-X	64-bit	N/A	7	Half Length, Full Height
3	PCIe 2.0	X8	X8	11	Half Length, Full Height

PCIe/PCI-X (Optional Secondary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
4	PCI-X	64-bit	N/A	19	Full Length, Full Height
5	PCI-X	64-bit	N/A	19	Low Profile
6	PCIe 2.0	X8	X8	23	Low Profile

x16 PCIe Riser (Optional Primary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCIe 2.0	x16	x16	6	Full Length, Full Height

x16 PCIe Riser (Optional Secondary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCIe 2.0	x16	x16	18	Full Length, Full Height

(2) x8 PCI-E Riser (Optional Primary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCIe 2.0	x8	x16	6	Full Length, Full Height
2	PCIe Gen2	x8	x16	9	Half Length, Full Height

(2) x8 PCI-E Riser (Optional Secondary)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
4	PCIe 2.0	x8	x16	18	Full Length, Full Height
5	PCIe 2.0	x8	x16	21	Low Profile

STORAGE CONTROLLER

• Entry Models
  • HP Smart Array P410i/Zero Memory Controller

Base Models

• • HP Smart Array P410i/256 MB Controller
  • HP Smart Array P410i/512MB FBWC Controller

High Performance Models

• HP Smart Array P410i/1G FBWC Controller

INTERNAL STORAGE DEVICES

• Diskette Drive
  • None

Optical Drive

• • None Standard

Hard Drives

• • None Standard

Hard Drive Bays

• Standard (8) small form factor (SFF) hot-plug drive bays to support Serial-attached SCSI (SAS) and Serial ATA (SATA) drives
  • Optional second drive cage for additional (8) SFF drive bays (total 16)
  • Optional cage for (6) Large Form Factor SAS/SATA hard drive bays

MAXIMUM INTERNAL STORAGE

Hot Plug SFF SAS	19.2TB	16 x 1.2TB (with optional SFF drive cage)
Hot Plug LFF SAS	24TB	6 x 4TB (with optional LFF drive cage)
Hot Plug SFF SAS SSD	12.8TB	16 x 800GB (with optional SFF drive cage)
Hot Plug LFF SATA SSD	2.4TB	6 x 400GB (with optional LFF drive cage)
Hot Plug SFF SATA SSD	6.4TB	16 x 400GB (with optional SFF drive cage)

INTERFACES

• Serial
  • 1

Video

• • 2 (1 front, 1 back)

Network RJ-45 (Ethernet)

• • 4

iLO3 remote management port

• • 1

Keyboard

• • 1

Pointing Device (Mouse)

• • 1

Graphics

• • 1

USB 2.0 Ports

• 6 (2 front, 2 back, 2 inside – one for internal tape)

SYSTEM FANS

• Hot plug fans ship standard, N+1 fully redundant

GRAPHICS

• Integrated ATI ES1000, 64MB video standard

CHASSIS

HP INSIGHT MANAGEMENT

• HP Service Pack for ProLiant
• HP Insight Foundation
• HP Integrated Lights-Out(iLO) for ProLiant

INTELLIGENT MANAGEABILITY

• HP Systems Insight Manager software
• SmartStart
• Management Agent
• Redundant ROM
• Remote Flash ROM
• ROM-Based Setup Utility (RBSU)
• Integrated Management Log
• Automatic Server Recovery (ASR)
• Dynamic Sector Repairing (with Smart Array controller)
• Drive Parameter Tracking (with Smart Array controller)
• Pre-Failure Warranty (covers processors, SAS hard drives and memory)

SECURITY

• Power-on password
• Keyboard password
• QuickLock, Network Server Mode
• Serial interface control
• Administrator’s password
