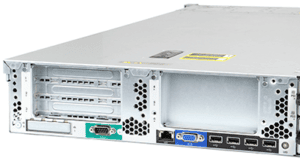

Servidor HP Proliant DL560 (G8)

Description

The HPE ProLiant DL560 is the first quad-socket server in HPE’s eighth generation server. The FlexibleLOM (LAN on motherboard) networking ports can support 1GbE and 10GbE, as well as QDR/FDR InfiBand connectivity. Using Intel’s power-sipping Xeon E5-4600 series processors, also provide Administrators with a more cost effective alternative than using Intel Xeon E7 processors.

Performance

A maximum of four Intel E5-4600 or E5-4600 v2 processors can be installed on the HPE DL560 Gen8. All eight variants of the Xeon E5-4600 processors are supported, including 95W, 115W, and 140W processors, which come with four, six, or eight cores. Intel’s E5-2600 v2 processors offer a 50% increase in cores and cache than the previous generation Xeon processors and reduces virtualization overhead to a mere 4% of CPU utilization by eliminating up to 50% of virtual machine exits.

Memory

With a four processor configuration, this system can support 48 DIMM sockets for an impressive maximum memory capacity of 1.5TB using 32GB LRDIMM memory modules. Flat cabling throughout the Gen8 servers, enhances overall cooling and makes access to the DIMM modules easier. HPE’s DDR3 SmartMemory modules, consume 20% less power than standard memory modules along with an increase in performance. SmartMemory modules also provide protection against failing DIMMs and data loss with HPE’s Online Spare memory technology.

Storage

This system can support up to 5 SFF SAS hot plug drive bays for a maximum internal storage of 6TB using 1.2TB drives. The system includes a Smart Array P420i RAID controller with an option for 512MB Flash Backed Write Cache (FBWC). This Smart Array provides up to six times better SSD performance than the P410i controller used in the ProLiant Gen7 servers. HPE’s new SmartDrive carriers feature an intuitive icon-based display to minimize human error when checking hard drive status.

Expansion

The DL560 Gen8’s design leaves plenty of room for expansion. The system can support a maximum of two PCIe risers with three slots each for a total of 6 PCIe expansion slots when both processors are installed. With a dual-processor configuration, users can choose between a three-slotted and a two-slotted riser card expansion. Using a second riser card gives users the option to add a maximum of three GPU coprocessors. Five of the six slots support PCIe Gen3, and the last slot supports PCIe 2.0 technology. Integrated graphics are handled by a Matrox G200 chip.

Management

Remote management is provided through HPE’s iLO Management Engine, standard on all HPE Gen8 servers. Agentless alerting capabilities and hardware monitoring are built into the server with HPE’s Agentless Management which starts working the second the power cord and the Ethernet cable are connected. 24×7 continuous health monitoring is provided through HPE Active Health System. For converged infrastructures, Administrators can implement additional tools for managing the network, like HPE’s Insight Cluster management.

Summary

The HPE ProLiant DL560 Gen8 server offers impressive memory capacity, reduced energy costs, and support for up to four processors. The system is easy to upgrade and service with a customer-inspired design and enhanced configuration flexibility. Server management features are accessible from a single screen making server management easier than previous ProLiant servers. The use of flat cabling and the retractable Systems Insight Display (SID) saves space throughout the system, further adding to the system’s simplicity for stress-free upgrades and serviceability.

PROCESSOR – 2 SOCKETS

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

CHIPSET

ON SYSTEM MANAGEMENT CHIPSET

MEMORY

• Type
  • DDR3 Load Reduced (LRDIMM), Registered (RDIMM)

DIMM Slots Available

• • 48 (12 DIMM slots per processor /4 channels per processor/3 DIMMs per channel)

Maximum Capacity

• (RDIMM) 1.5TB (48x 32GB RDIMM @1600MHz)
• (LRDIMM) 1.5TB (48x 32GB LRDIMM @1866MHz)

NETWORK CONTROLLER

• Entry Models
  • HPE Ethernet 1Gb 4-port 331FLR Adapter

Base Models

• • HPE Ethernet 1Gb 4-port 331FLR Adapter

High Performance

• HPE Ethernet 1Gb 4-port 331FLR Adapter
• HPE Ethernet 10Gb 2-port 530FLR-SFP+ Adapter

EXPANSION SLOTS

• Primary Riser (Standard)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
1	PCIe 3.0	X16	X16	7	Full Length, Full Height Slot
2	PCIe 3.0	X8	X8	10	Half Length, Full Height Slot
3	PCIe 2.0	X4	X8	13	Half Length, Full Height Slot

PCIe Riser (Optional 3-slot)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
4	PCIe 3.0	X16	X16	16	Full Length, Full Height slot
5	PCIe 3.0	X8	X8	20	Half Length, Full Height slot
6	PCIe 3.0	X8	X8	23	Half Length, Full Height slot

PCIe Riser (Optional 2-slot)

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
4	PCIe 3.0	X16	X16	16	Full Length, Full Height slot
5	PCIe 3.0	X16	X16	20	Half Length, Full Height slot

STORAGE CONTROLLER

• Entry Model
  • HPE Smart Array P420i/ZM (RAID 0/1/1+0)

Base Model

• • HPE Smart Array P420i/1GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

Performance Model

• HPE Smart Array P420i/2GB with FBWC (RAID 0/1/1+0/5/5+0/6/6+0)

INTERNAL STORAGE DEVICES

• Diskette Drive
  • None

Optical Drive

• • None ship standard
  • Optional: USB DVD-RW available

Hard Drives

• • None ship standard

Drive Bays

• Standard: 5SFF drive bays total

MAXIMUM INTERNAL STORAGE

Hot Plug SFF SAS	10.0TB	5 x 2.0TB
Hot Plug SFF SAS SSD	19.2TB	5 x 3.84TB
Hot Plug SFF SATA	10.0TB	5 x 2.0TB
Hot Plug SFF SATA SSD	19.2TB	5 x 3.84GB

INTERFACES

• Serial
  • 1

Video

• • 2 (1 front, 1 back) not active simultaneously

FlexibleLOM Network Ports

• • Some models come standard with 4 x 1GB ports while others come with 2 x 10GB ports (See HPE Networking section below for more details and options).

HPE iLO Remote Management Network Port

• • 1 Gb Dedicated

Micro SD slot

• • 1 Internal Secure

USB 2.0 Ports

• 7 total: 2 front, 4 back, 1 internal

SYSTEM FANS

• 6 fans (N+1 redundancy standard)

GRAPHICS

• Integrated Matrox G200 video standard
• HPE iLO 4 On System Management Memory

CHASSIS

• 2U Rack

ON SYSTEM MANAGEMENT

• HP iLO
• HP Agentless Management
• HP Active Health System
• HP Intelligent Provisioning
• HP iLO Mobile App

HP INSIGHT MANAGEMENT

SECURITY

• Power-on password
• Serial interface control
• Administrator’s password
• Trusted Platform Module
