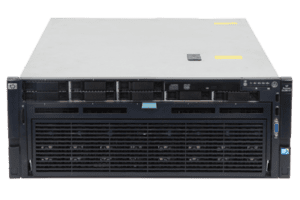

Servidor HP Proliant DL580 (G7)

Description

The HPE ProLiant DL580 Gen7 server is a quad-processor platform with 64 DIMM slots, 11 expansion slots, and 8 SFF drive bays, ideal for large databases applications that require scale-up computing processing, large memory, and I/O intensive applications. A total of six USB 2.0 ports can be found on the system with two inside the chassis and the remaining four evenly divided between the front and the back of the system. The system’s enhanced Reliability, Availability, and Serviceability (RAS) features remove performance bottlenecks and extend system uptime.

Performance

Built for complex IT environments, this system supports up to four Intel Xeon E7-4800, E7-8800 or X7500 series processors to provide up to 30MB L3 cache and processor speeds up to 2.6MHz. E7 processors support Enhanced Double Device Data Correction, Intel’s advanced memory correction technology that protects the system from memory chip failure.

Memory

This system supports 64 DDR3 registered (RDIMM) memory modules shared between four multi-core processors. With four processors, Xeon X7500 series processors will provide a maximum memory capacity of 1TB, but using Intel’s E7 processors it will support up 2TB using 32GB memory modules. RAS (Reliability, Availability, and Serviceability) features like HPE’s Memory Quarantine helps to ensure maximum uptime by notifies administrators when there are processor or memory errors.

Storage

Up to 8 SFF SAS drive bays are supported on the HPE DL580 Gen7, and deliver a maximum internal storage capacity of 9.6TB. If desired, an optional slimline optical drive can be added to the configuration. An internal SSD drive slot is available for greater storage capacity. HPE’s Smart Array controllers support Flash Backed Write Cache which increases cache data retention capabilities from two days of existing Battery-Backed Write Cache (BBWC) to infinite data retention.

Expansion

This system offers great expansion potential with support for eleven PCI expansion slots with the addition of an I/O expander—all full length/full height. Without the expander, five expansion slots are supported on the main I/O board. Administrators can choose between two I/O expanders, one of which offers support for legacy PCI-X technology whereas the other expander features PCIe Gen2 technology.

Management

HPE’s Service Pack for ProLiant (SPP) and Smart Update Manager (HP SUM) ensure maximum uptime and better operating stability. Server setup has been simplified from previous ProLiant generations with HPE’s Integrated Lights Out (iLO) technology, which also provides remote administration capabilities and power/thermal control that can be accessed from any location through a standard web browser. Automated monitoring tools provided through Proactive Insight prevent hardware problems before they cause problems, maximizing server uptime.

Summary

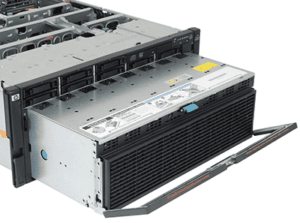

The HPE ProLiant DL580 Gen7 server has great expansion potential with support for a total of eleven PCI slots and an impressive 64 DIMM slots for high-performance workloads. Intel’s E7 processors provide a wide range of RAS features to reduce server downtime and improve performance. The chassis design includes a drawer to hold all four processors and memory that can be easily accessed with the press of a button for hassle-free upgrades and repairs. Remote management features are eight times faster with HPE’s iLO 3.0 management module, and Smart Array storage controllers provide support for Flash-Backed Write Cache improving data retention.

PROCESSOR – 4 SOCKETS

• Intel® Xeon® processor E7-4800 product family

• Intel® Xeon® processor E7-8800 product family

• Intel® Xeon® processor X7500 product family

• Intel® Xeon® processor L7500 product family

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• VMware
• Citrix XenServer

CHIPSET

MEMORY

• Memory Maximum
  • PC3-10600R DIMMs (DDR3)

Standard (2P Models)

• • 16GB (4 x 4GB)

Standard (4P Model – E7540)

• • 32GB (8 x 4GB)

Standard (4P Models – X7560, X7550)

• • 64GB (16 x 4GB)

Standard (2P Models – E7-4830, E7-4807)

• • 64 (8 x 8GB)

Standard (4P Models – E7-4870, E7-4850)

• • 128GB (16 x 8GB)

Maximum

• 2TB (64 x 32GB)

NETWORK CONTROLLER

EXPANSION SLOTS

• Expansion Slots (Main IO Board standard)

Expansion Slot #	Technology	Width	Connector Width	Bus / Dev Number	Form Factor
1	N/A	N/A	N/A	N/A	N/A
2	N/A	N/A	N/A	N/A	N/A
3	N/A	N/A	N/A	N/A	N/A
4	N/A	N/A	N/A	N/A	N/A
5	N/A	N/A	N/A	N/A	N/A
6	N/A	N/A	N/A	N/A	N/A
7	PCI Express Gen2	x4	x8	0/0A	FH/FL
8	PCI Express Gen2	x4	x8	0/09	FH/FL
9	PCI Express Gen2	x8	x16	0/07	FH/FL
10	PCI Express Gen2	x4	x8	0/01	FH/FL
11	PCI Express Gen2	x8	x16	0/05	FH/FL

Expansion Slots with IO Expander

Expansion Slot #	Technology	Width	Connector Width	Bus / Dev Number	Form Factor
1	PCI-X	64-bit	N/A	82/01	FH/FL
2	PCI-X	64-bit	N/A	82/02	FH/FL
3	PCI Express Gen2	x16	x16	80/07	FH/FL
4	PCI Express Gen2	x4	x8	80/01	FH/FL
5	N/A	N/A	N/A	N/A	N/A
6	PCI Express Gen2	x16	x16	80/03	FH/FL
7	PCI Express Gen2	x4	x8	0/0A	FH/FL
8	PCI Express Gen2	x4	x8	0/09	FH/FL
9	PCI Express Gen2	x8	x16	0/07	FH/FL
10	PCI Express Gen2	x4	x8	0/01	FH/FL
11	PCI Express Gen2	x8	x16	0/05	FH/FL

Expansion Slots Expansion Slots with I/O Expander (standard PCIe option)

Expansion Slot #	Technology	Width	Connector Width	Bus / Dev Number	Form Factor
1	PCI Express Gen1	x4	x8	80/00	FH/FL
2	PCI Express Gen2	x8	x16	80/09	FH/FL
3	PCI Express Gen2	x8	x16	80/07	FH/FL
4	PCI Express Gen2	x4	x8	80/01	FH/FL
5	PCI Express Gen2	x8	x16	80/05	FH/FL
6	PCI Express Gen2	x8	x16	80/03	FH/FL
7	PCI Express Gen2	x4	x8	0/0A	FH/FL
8	PCI Express Gen2	x4	x8	0/09	FH/FL
9	PCI Express Gen2	x8	x16	0/07	FH/FL
10	PCI Express Gen2	x4	x8	0/01	FH/FL
11	PCI Express Gen2	x8	x16	0/05	FH/FL

STORAGE CONTROLLER

• Base Models
  • HP Smart Array P410i/512 MB FBWC Controller

High Performance Models

• HP Smart Array P410i/1G FBWC Controller

INTERNAL STORAGE DEVICES

• Diskette Drive
  • None

Optional Optical Drive

• • HP Slim SATA DVD ROM Optical Drive

Hard Drives

• • None ship standard

Hard Disk Drive Backplane

• Internal SAS backplane supports up to eight SFF hard disk drives

MAXIMUM INTERNAL STORAGE

Hot Plug SFF SAS	9.6TB	8 x 1.2TB
Hot Plug SFF SATA	8.0TB	8 x 1TB
Hot Plug SFF SSD	960GB	8 x 120GB
Hot Plug SFF SAS SSD	6.4TB	8 x 800GB
Hot Plug SFF SATA SSD	3.2TB	8 x 400GB

INTERFACES

• Serial
  • 1

Video

• • 1 front; 1 rear

Network RJ-45

• • 4

iLO 3 Remote Management

• • 1

Keyboard

• • 1

Pointing Device (Mouse)

• • 1

SD Slot

• • 1

USB 2.0 Ports

• 6 total: 2 front; 2 rear; 2 internal

POWER SUPPLY

• HP 1200W Common Slot Platinum Hot Plug Power Supply Kit
• HP 1200W Common Slot Silver Hot Plug Power Supply Kit

SYSTEM FANS

GRAPHICS

CHASSIS

HP INSIGHT MANAGEMENT

• HP Service Pack for ProLiant
• HP Insight Foundation
• HP Integrated LightsOut (iLO)

INTELLIGENT MANAGEABILITY

• HP Systems Insight Manager
• SmartStart
• Redundant ROM
• Remote Flash ROM
• Management Agents
• Integrated Management Log (IML)
• Automatic Server Recovery-2 (ASR-2)
• ROM-Based Setup Utility (RBSU)
• Dynamic Sector Repairing (with Smart Array Controllers)
• Drive Parameter Tracking (with Smart Array Controllers)
• Pre-Failure Warranty (covers processors, SAS hard drives and memory)
• Redundant/adaptive load balancing NIC Support
• Hot Spare Boot

SECURITY

• Power-on password
• Keyboard password
• External USB port enable/disable
• Network Server Mode
• Serial interface control
• Administrator’s password
• Removable optical drive
