Servidor HP Proliant DL585 (G7)

Aluguel, locação e comodato
HP Proliant DL585 (G7)
Overview
Specification
Documentation

Description

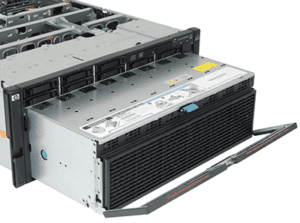

HPE DL585 Gen7 server front of the system

The HPE ProLiant DL585 Gen7 server removes performance bottlenecks with its four processors, extensive memory capacity, and large amount of storage. Efficient power supply options keep operational costs low without settling on performance. HPE’s Insight Control provides faster remote management capabilities than previous generations and proactively manages the health of the system.

Performance

This system uses AMD’s SR5690/SP5100 chipset and can support up to four AMD Opteron 6300 or 6200 processors. Administrators have their choice between 4, 8, 12, and 16 core processors that provide 16MB L3 cache. Depending on the model, processor frequencies can reach up to 3.5GHz.

Memory

Up to 48 DDR3 Registered DIMM slots are supported on the HPE DL585 Gen7 rack server. Supported DDR3 memory modules are low-voltage to improve performance, capacity, and efficiency. With all 48 DIMM slots filled using 32GB memory modules, this system supports a maximum memory capacity of 1.5TB making it the perfect solution for memory intensive applications.

Storage

There are a total of eight small form factor (SFF) drive bays on this system for a maximum internal storage capacity of 9.6TB when using 1.2TB SAS drives. The P410i controller can support Flash-Backed Write Cache for improved data retention and can provide RAID 6 capabilities when an advanced license is purchased. An internal SSD slot is available for a larger storage capacity, and an optional slimline optical drive can be added to the system.

Expansion

HPE DL585 Gen7 server expansion

Standard models support five PCIe expansion slots, but adding an I/O expander will provide an additional six slots. Depending on the technology desired, administrators can choose between two expanders- one of which offers a mixture of PCI-X and PCIe and the other with all slots dedicated to PCIe technology.

Management

Power consumption is improved and server deployment is easier than previous generations with HPE’s Insight Control. Remote management has also been improved from iLO 2.0 by 800% with HPE’s iLO 3.0 software. iLO is independent of the host server and operating system with its own microprocessor. An optional storage device and management software can be added to the system to enable hardware-specific configuration and performance modifications.

Summary

With 4 processors, 48 DIMMs, and 9.6TB of internal storage, the HPE ProLiant DL585 Gen7 server provides a lot of processing power, memory, and storage for demanding workloads. Operational costs are reduced with high-efficiency Common Slot power supplies and HPE’s Power Advisor which accurately estimates the power consumption of the server components. Management on the system has been improved from previous generations with the addition of HPE’s iLO3 which provides faster remote management and simplifies server setup.

PROCESSOR – 4 SOCKETS
    AMD Opteron™ processor 6200 and 6300 product families
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
  • Microsoft Windows Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • Oracle Solaris
  • VMware
  • Citrix XenServer
CHIPSET
    AMD SR5690/SP5100
MEMORY
    • Type

    • PC3-10600R Registered DDR3 (1333MHz)

Performance Models

    • 128GB (16x8GB) of PC3-10600R (DDR3-1333)
    • 64GB (8x8GB) of PC3-10600R (DDR3-1333)
    • 64GB (16x4GB) of PC3-10600R (DDR3-1333)
    • 32GB (8x4GB) of PC3-10600R (DDR3-1333)
    • 32GB (4x8GB) of PC3-10600R (DDR3-1333)
    • 32GB (8x4GB) of PC3-10600R (DDR3-1333)

Base Models

    • 32GB (8x4GB) of PC3-10600 (DDR3-1333)

Maximum

  • 1.5TB
NETWORK CONTROLLER
    HP Ethernet 1Gb 4-port 331i-SPI Adapter
EXPANSION SLOTS
    • Expansion Slots (Main IO Board standard)
Expansion Slot # Technology Bus Width Connector Width Form Factor
1 N/A N/A N/A N/A
2 N/A N/A N/A N/A
3 N/A N/A N/A N/A
4 N/A N/A N/A N/A
5 N/A N/A N/A N/A
6 N/A N/A N/A N/A
7 PCI-Express x8 x16 Full Length/ Full Height
8 PCI-Express x8 x16 Full Length/ Full Height
9 PCI-Express x16 x16 Full Length/ Full Height
10 PCI-Express x8 x16 Full Length/ Full Height
11 PCI-Express x16 x16 Full Length/ Full Height

Expansion Slots with IO Expander

Expansion Slot # Technology Bus Width Connector Width Form Factor
1 PCI-X 64-bit N/A Full Length/ Full Height
2 PCI-X 64-bit N/A Full Length/ Full Height
3 PCI-Express x4 x8 Full Length/ Full Height
4 PCI-Express x8 x16 Full Length/ Full Height
5 PCI-Express x8 x16 Full Length/ Full Height
6 PCI-Express x16 x16 Full Length/ Full Height
7 PCI-Express x8 x16 Full Length/ Full Height
8 PCI-Express x8 x16 Full Length/ Full Height
9 PCI-Express x16 x16 Full Length/ Full Height
10 PCI-Express x8 x16 Full Length/ Full Height
11 PCI-Express x16 x16 Full Length/ Full Height

Expansion Slots with I/O Expander (standard PCI-e option)

Expansion Slot # Technology Bus Width Connector Width Form Factor
1 PCI-Express x8 x16 Full Length/ Full Height
2 PCI-Express x8 x16 Full Length/ Full Height
3 PCI-Express x16 x16 Full Length/ Full Height
4 PCI-Express x8 x16 Full Length/ Full Height
5 PCI-Express x8 x16 Full Length/ Full Height
6 PCI-Express x16 x16 Full Length/ Full Height
7 PCI-Express x8 x16 Full Length/ Full Height
8 PCI-Express x8 x16 Full Length/ Full Height
9 PCI-Express x16 x16 Full Length/ Full Height
10 PCI-Express x8 x16 Full Length/ Full Height
11 PCI-Express x16 x16 Full Length/ Full Height
STORAGE CONTROLLER
    • Performance Models

    • HP Smart Array P410i/1G FBWC Controller

Base Models

  • HP Smart Array P410i/512MB FBWC or Zero Memory Controller
INTERNAL STORAGE DEVICES
    • Diskette Drive

    • None

Optical Drives

    • Optional Optical Drive – HP Slim SATA DVD ROM Optical Drive ejectable for security and serviceability

Hard Drives

    • None standard

Hard Disk Drive Backplane

    • Internal SAS backplane supports up to eight SFF hard disk drives

Drive Bays

  • Up to 8 Small Form Factor drive bays total
MAXIMUM INTERNAL STORAGE
Hot Plug SFF SAS 9.6TB 8 x 1.2TB
Hot Plug SFF SATA 8.0TB 8 x 1TB
Hot Plug SFF SAS SSD 6.4TB 8 x 800GB
Hot Plug SFF SATA SSD 6.4TB 8 x 800GB
INTERFACES
    • Serial

    • 1

Video

    • 1 front; 1 rear

Network RJ-45

    • 4

iLO 3 Remote Management

    • 1

Keyboard

    • 1

Pointing Device (Mouse)

    • 1

SD Slot

    • 1

USB 2.0 Ports

  • 6 total: 2 front; 2 rear; 2 internal
SYSTEM FANS
    4 Hot plug, redundant fans (individually removable)
GRAPHICS
    Integrated ATI RN-50 1600x1280x64K 16M color (32 MB DDR1 memory)
CHASSIS
    4U Rack
HP INSIGHT MANAGEMENT
  • HP Service Pack for ProLiant
  • HP Insight Foundation
  • HP Integrated LightsOut (iLO)
INTELLIGENT MANAGEABILITY
  • HP Systems Insight Manager software
  • SmartStart
  • Redundant ROM
  • Remote Flash ROM
  • Management Agents
  • Integrated Management Log (IML)
  • Automatic Server Recovery-2 (ASR-2)
  • ROM-Based Setup Utility (RBSU)
  • Dynamic Sector Repairing (with Smart Array Controllers)
  • Drive Parameter Tracking (with Smart Array Controllers)
  • Pre-Failure Warranty (covers processors, SAS hard drives and memory)
  • Redundant/adaptive load balancing NIC Support
SECURITY
  • Power-on password
  • Keyboard password
  • Diskette drive control enable/disable
  • Diskette boot control enable/disable
  • External USB port enable/disable
  • Network Server Mode
  • Serial interface control
  • Administrator’s password
  • Removable optical drive
