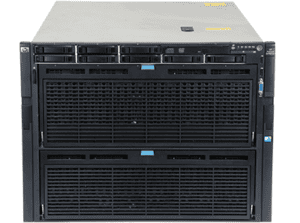

Servidor HP Proliant DL980 (G7)

Description

The HPE ProLiant DL980 Gen7 server is a scale-up x86 system that supports four or eight processors, 128 DIMM slots, and 7.2TB of internal storage. HPE’s PREMA Architecture combines Smart CPU Caching technology and a redundant system fabric to interconnect the system and reduce communication overhead. This system simplifies server management with the ability to consolidate 197 servers onto a single console. Expansion potential is impressive with 50% more I/O slots than previous generation, and HPE’s iLO 3.0 software provides remote management capabilities eight times faster than its predecessor.

Performance

This system features Intel’s 7500 chipset, which supports four or eight E7-2800 or E7-4800 processors, which can provide up to 30MB Level 3 cache memory per socket and speeds up to 2.26GHz depending on the model. HPE’s Smart CPU Caching technology reduces memory and I/O latency by minimizing inter-processor communication for faster transaction time. For enhanced networking performance, this system can be upgraded to include a 10-GbE networking port designed with an eight lane (x8) PCIe bus.

Memory

Using DDR3 load reduced (LRDIMM) 32GB memory modules in all 128 DIMM slots the system will support a maximum memory capacity of 4TB. Double Device Data Correction (DDDC) technology provides recovery from two consecutive DRAM failures on the memory DIMMs to improve system reliability by a factor of ten compared to systems using Single Device Data Correction (SDDC).

Storage

The HPE DL980 Gen7 can support up to eight SFF SAS HDD or SSD drives for a maximum internal storage capacity of 7.2TB. Unlike the SmartArray P410 storage controller, the Smart Array P410i storage controller has a dedicated slot and comes with an optional Flash-Backed Write Cache (FBWC), standard on four processor configurations.

Expansion

Up to 16 expansion slots are supported on this system. 11 full length/full height slots and five low profile slots. Five full height/full length I/O slots come standard on this system but Administrators can add an optional mezzanine riser board for an additional five or six full height/full length slots. For even greater expansion potential, a second mezzanine board will provide five extra low profile slots. I/O slots support PCIe 2.0 technology, but the system can be configured with an I/O expander that includes a mixture of both PCIe 2.0 and PCI-X technologies. Graphics are provided by an embedded ATI ES1000 with 16M color depth and 1280 x 1024 resolution.

Management

HPE’s iLO 3.0 reduces power cost by accurately measuring power consumption on actual usage, rather than rough estimates, and allows administrators to regulate power usage on a per workload basis. HPE’s Insight Control automates and reduces data center tasks up to 40% and features disaster recovery capabilities that allow application environments to be reactivated with the touch of a button.

Summary

The HPE ProLiant DL980 Gen7 server with PREMA architecture supports up to eight processors, 128 DIMMs, 7.2TB of internal storage, and significant I/O. With four times the memory, 50% more I/O slots, and remote management capabilities that are eight times faster than its predecessor, this system is a great solution for enterprise-class databases and virtualized environments that require mission-critical resiliency.

PROCESSOR

• Intel® Xeon® processor E7-2800 product family

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Microsoft Windows Server Hyper V
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• Oracle Solaris
• Oracle Linux
• VMware

CHIPSET

• Industry Standard Intel® 7500 Chipset

MEMORY

• Type
  • PC3-10600R Registered Low Voltage (1.35V) DIMMs (DDR3)

Maximum

• 4TB (128 x 32GB)

NETWORK CONTROLLER

• HP ProLiant DL980 NC375i SPI Board

EXPANSION SLOTS

• Expansion Slots with No Option Card

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
1	N/A	N/A	N/A	N/A	N/A
2	N/A	N/A	N/A	N/A	N/A
3	N/A	N/A	N/A	N/A	N/A
4	N/A	N/A	N/A	N/A	N/A
5	N/A	N/A	N/A	N/A	N/A
6	N/A	N/A	N/A	N/A	N/A
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL

Expansion Slots with Combination PCI-X, PCI-e and 300W GPU I/O Expander

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
1	PCI-X	64-bit	N/A	0x72 (Device 1)	FH/FL
2	PCI-X	64-bit	N/A	0x72 (Device 2)	FH/FL
3	PCI Express Gen2	x16	x16	0x76	FH/FL
4	PCI Express Gen2	x4	x8	0x79	FH/FL
5	N/A	N/A	N/A	N/A	N/A
6	PCI Express Gen2	x16	x16	0x84	FH/FL
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL

Expansion Slots with Standard PCI-e option I/O Expander

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
1	PCI Express Gen1	x4	x8	0x71	FH/FL
2	PCI Express Gen2	x8	x16	0x74	FH/FL
3	PCI Express Gen2	x8	x16	0x77	FH/FL
4	PCI Express Gen2	x4	x8	0x7A	FH/FL
5	PCI Express Gen2	x8	x16	0x84	FH/FL
6	PCI Express Gen2	x8	x16	0x87	FH/FL
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL

Expansion Slots with Low Profile I/O expander (PCIe option)

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL
12	PCI Express Gen2	x8	x16	0x71	LP
13	PCI Express Gen2	x8	x16	0x74	LP
14	PCI Express Gen2	x4	x8	0x77	LP
15	PCI Express Gen2	x8	x16	0x7A	LP
16	PCI Express Gen2	x8	x16	0x84	LP

Expansion Slots with Combination PCI-X, PCI-e and 300W GPU and Low Profile PCI-e I/O Expanders

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
1	PCI-X	64-bit	N/A	0x52 (Device 1)	FH/FL
2	PCI-X	64-bit	N/A	0x52 (Device 2)	FH/FL
3	PCI Express Gen2	x16	x16	0x56	FH/FL
4	PCI Express Gen2	x4	x8	0x59	FH/FL
5	N/A	N/A	N/A	N/A	N/A
6	PCI Express Gen2	x16	x16	0x5C	FH/FL
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL
12	PCI Express Gen2	x8	x16	0xA1	LP
13	PCI Express Gen2	x8	x16	0xA4	LP
14	PCI Express Gen2	x4	x8	0xA7	LP
15	PCI Express Gen2	x8	x16	0xAA	LP
16	PCI Express Gen2	x8	x16	0xAD	LP

Expansion Slots with Standard PCI-e and Low Profile PCI-e option I/O Expanders

Expansion Slot #	Technology	Width	Connector Width	Bus Number	Form Factor
1	PCI Express Gen1	x4	x8	0x51	FH/FL
2	PCI Express Gen2	x8	x16	0x54	FH/FL
3	PCI Express Gen2	x8	x16	0x57	FH/FL
4	PCI Express Gen2	x4	x8	0x5A	FH/FL
5	PCI Express Gen2	x8	x16	0x5D	FH/FL
6	PCI Express Gen2	x8	x16	0x60	FH/FL
7	PCI Express Gen2	x4	x8	0x05	FH/FL
8	PCI Express Gen2	x4	x8	0x08	FH/FL
9	PCI Express Gen2	x8	x16	0x0B	FH/FL
10	PCI Express Gen2	x4	x8	0x0E	FH/FL
11	PCI Express Gen2	x8	x16	0x11	FH/FL
12	PCI Express Gen2	x8	x16	0xA1	LP
13	PCI Express Gen2	x8	x16	0xA4	LP
14	PCI Express Gen2	x4	x8	0xA7	LP
15	PCI Express Gen2	x8	x16	0xAA	LP
16	PCI Express Gen2	x8	x16	0xAD	LP

STORAGE CONTROLLER

INTERNAL STORAGE DEVICES

• Diskette Drive
  • None

Optical Drives

• • Slimline DVD-RW Drive standard

Hard Drives

• • None ship standard

Hard Disk Drive Backplane

• Internal SAS backplane supports up to eight SFF hard disk drives

MAXIMUM INTERNAL STORAGE

Hot Plug SFF SAS	7.2TB	8 x 900GB
Hot Plug SFF SAS SSD	3.2TB	8 x 400GB

INTERFACES

• Serial
  • 1

Video

• • 1 front; 1 rear

SD Slot

• • 1

Network RJ-45

• • 4

iLO 3 Remote Management

• • 1

Keyboard

• • 1

Pointing Device (Mouse)

• • 1

USB 2.0 Ports

• 6 total: 2 front (video); 2 rear (video, NIC); 2 internal

POWER SUPPLY

• E7-2800 4P Model: (4) 1200W Common Slot Platinum Power Supplies (220VAC only)
• E7-4800 4P Model: (8) 1200W Common Slot Platinum Power Supplies (220VAC only)

SYSTEM FANS

GRAPHICS

CHASSIS

HP INSIGHT MANAGEMENT

• HP Insight Foundation
• HP Integrated Lights-Out (iLO)

INTELLIGENT MANAGEABILITY

• HP Systems Insight Manager
• SmartStart
• Redundant ROM
• Remote Flash ROM
• Management Agents
• Integrated Management Log (IML)
• Automatic Server Recovery-2 (ASR-2)
• ROM-Based Setup Utility (RBSU)
• Dynamic Sector Repairing (with Smart Array Controllers)
• Drive Parameter Tracking (with Smart Array Controllers)
• Pre-Failure Warranty (covers processors, SAS hard drives and memory)
• Redundant/adaptive load balancing NIC Support
• Hot Spare Boot

SECURITY

• Power-on password
• Keyboard password
• External USB port enable/disable
• Network Server Mode
• Serial interface control
• Administrator’s password
• Removable CD-ROM or DVD drive

HPE ProLiant DL980 Generation 7 (G7) Server QuickSpecs



HPE ProLiant DL980 Gen7 Server Maintenance and Service Guide



HPE ProLiant DL980 Gen7 Server User Guide
