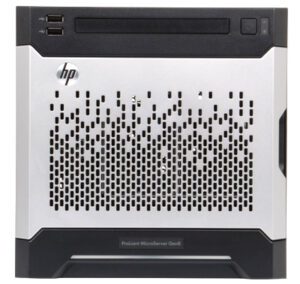

Servidor HP Proliant MicroServer (G8)

Description

The HPE MicroServer is an ultra-micro tower measuring a little over nine inches in length, width, and height. It supports enterprise-class reliability with Intel Xeon processors, ECC memory, and integrated RAID support. The case itself is easy to access for repair or upgrade and supports an optional purpose built HPE PS1810 switch and HPE PS110 wireless VPN router for increased efficiency and productivity—they also stack neatly on top of the MicroServer! The system is easy to set up and configure right out of the box.

Performance

HPE’s Gen8 MicroServer supports a single processor. Depending on your performance needs, choose from either an Intel Celeron, Pentium, Core, or Xeon processor. A maximum memory speed of 1600MHz is only available with either an Intel Core i3 or Intel Xeon processor. Power is provided by either a 150W or 200W non-hot plug, non-redundant power supply.

Memory

In total, the MicroServer Gen8 will support 16GB of DDR3 unbuffered (UDIMM) memory in two memory slots using a pair of 8GB memory modules. Memory from previous generation HPE servers are not fully compatible with the HPE MicroServer.

Storage

The HPE MicroServer can support up to four 3.5-inch 4TB SATA drives for a total of 16TB of storage. Storage bays one and two support transfer rates 6Gb/s, and bays three and four support 3Gb/s transfer speeds. An integrated HPE Dynamic Smart Array B120i controller supports RAID configurations of 0, 1, and 10. To enable RAID 5 you will need to install an HPE Smart Array P222 Controller with FBWC. Hot plug hard drives are not supported and a SATA DVD RW drive is optional.

Expansion

The HPE MicroServer supports a single x16 PCIe slot for a low-profile card. Using a Celeron or Pentium processor will provide PCIe 2.0 speeds. With a Xeon processor installed, PCIe 3.0 is available. Video is provided by an integrated Matrox G200 standard providing resolutions up to 1920 x 1200 that also supports iLO On System Management Memory. An integrated HPE 1GbE dual port 332i adapter provides network connectivity.

Management

Like other ProLiant servers, the HPE MicroServer comes with the iLO Management Engine, which can help manage the lifecycle of the server from deployment to general management and remote access. Integrated Lights Out (iLO 4.0) provides health monitoring and alerting functions independent of the OS. There’s also an optional shared RJ45 Ethernet iLO port, or you can go with the default dedicated iLO Remote Management Network Port with an internal microSD card that can be used to boot the system. Intelligent Provisioning helps users configure the system without the need for special setup disks or other additional media and also allows users to install an OS on a target device, like the MicroSD card. With the HPE iLO Mobile App, users can access, deploy, and manage the system anytime, anywhere from select mobile devices.

Summary

The HPE ProLiant MicroServer Gen8 has all the features you need to support your small business or home office. It provides all the essential components to help you reliably store and manage your network at an affordable price, and is very easy to set up using HPE’s integrated tools.

PROCESSOR – 1 SOCKET

• Intel® Celeron® G1610T (2.3Hz/2-core/2MB/35W) Processor
• Intel® Pentium® G2020T (2.5GHz/2-core/3MB/35W) Processor
• Intel® Core™ i3-3240 (3.4GHz/2-core/3MB/65W) Processor
• Intel® Xeon® E3-1220Lv2 (2.3GHz/2-core/3MB/17W) Processor

CHIPSET

ON SYSTEM MANAGEMENT PROCESSOR

MEMORY PROTECTION

MEMORY

• Type:
  • HPE SmartMemory

DIMM Slots Available:

• • 2

Standard:

• • 4GB (1 x 4GB) PC3L-12800E DDR3 UDIMM

Maximum (RDIMM):

• 16GB (2 x 8GB) PC3-12800E DDR3 UDIMM

NETWORK CONTROLLER

• HPE Ethernet 1Gb 2-port 332i Adapter

EXPANSION SLOTS

Expansion Slot #	Technology	Bus Width	Connector Width	Form Factor
1	PCIe 3.0/2.0	x16	x16	Low Profile

• NOTE: Processor dependent. Xeon is PCIe 3.0. Celeron and Pentium are PCIe 2.0.

STORAGE CONTROLLER

INTERNAL STORAGE DEVICES

• Optional: SATA DVD-RW drive

MAXIMUM INTERNAL STORAGE

INTERFACES

• Video:
  • 1 Rear standard video

HPE iLO Remote Management Network Port:

• • 1Gb Dedicated (default iLO4 configuration)

Micro SD slot:

• • 1 Internal

USB 2.0 Ports:

• • 5 total (2 front, 2 rear, 1 internal)

USB 3.0 Ports:

• • 2 total (2 rear)

Network RJ-45 (Ethernet):

• 2 (Port 1 shared for HPE iLO4 as optional configuration)

INDUSTRY STANDARD COMPLIANCE

• ACPI V2.0b Compliant
• PCIe 2.0 Compliant
• PXE Support
• WOL Support
• USB 2.0
• USB 3.0
• SATA Gen 2
• SATA Gen 3

POWER SUPPLY

• One (1) 150 Watts Non-Hot Plug, Non redundant Power Supply (AMS, APJ and PRC models)
• One (1) 200 Watts Non-Hot Plug, Non redundant Power Supply (EMEA models)

SYSTEM FANS

• One (1) – Non-redundant system fan shipped standard

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware

GRAPHICS

• Integrated Matrox G200 video standard

FORM FACTOR

ON SYSTEM MANAGEMENT

• HPE iLO Management Engine

HPE INSIGHT MANAGEMENT SOFTWARE

• HPE Service Pack for ProLiant (SPP)

SECURITY

• Setup password
