Servidor HP Proliant ML110 (G10)

Description

The HPE ProLiant ML110 Gen10 server tower is a 4.5U server tower that delivers enterprise level features at a relatively inexpensive price when compared to other systems with similar storage, memory, and processing options. This system is a great option if your business specializes in data management and other intensive computational tasks and many of the components are hot swap for easy system maintenance. HPE also provides its full suite of tools to manage this server from beginning to end of life.

Performance

The all new Intel Xeon Scalable processors are the backbone of this system. You can choose from the Bronze, Silver, or Gold level processors featuring 4 to14 cores. The processor supports DDR4 memory with six DIMM slots. Power is provided by either by a 350W, 550W, or 800W power supply. The 800W Flex Slot Platinum hot plug power supply requires the RPS Enablement kit.

Memory

One memory channel is allocated to each DIMM slot for a total of six channels and six memory slots. The system supports a maximum of 192GB of memory with all slots loaded with Registered 32GB DIMM modules. The memory speed clocks in at speeds ranging between 2133 MT/s and 2666 MT/s depending on the processor. The Bronze CPUs support memory speeds of 2133 MT/s, while Silver and certain Gold CPUs support 2400 MT/s. Only the Gold 5122 CPU supports the fastest speed of 2666 MT/s.

Storage

This system can accommodate many different configurations to support your storage needs and bolster your business. The HPE ML110 Gen10 server tower works with both 3.5-inch and 2.5-inch drives. 3.5-inch drive configuration support a maximum of 96TB, while the 2.5-inch option supports a maximum of 61TB. Hot plug SATA and SAS, HDDs and SSDs are supported on this system. Depending on the storage configuration you can install an optional DVD-ROM or DVD RW optical device. There are several HPE Smart Array storage controller to choose from including the integrated S140i for software RAID and other performance RAID controllers that support levels of 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM.

Expansion

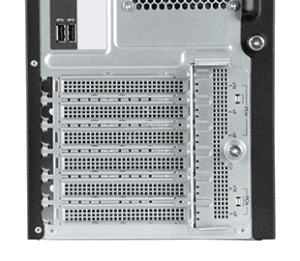

There are five PCIe 3.0 slots to expand your system capabilities for graphic processing or increased data transfer speeds. Three are x8 slots while the other two are x16 slots. The Smart Array storage controllers also connect through the PCIe slots providing RAID options for the storage devices.

Management

On system management is simplified with the standard iLO management port on the rear of the system and another on the front of the system. The HPE iLO 5 is supported by 32MB of memory and 4Gb DDR3 with ECC protection. To unlock more features, iLO can be upgraded to Advanced or Essential levels with the purchase of a license key.

Summary

Small and medium-sized businesses will find the HP ProLiant ML110 Gen10 server tower is a perfect fit for their needs at a very inexpensive price point. A small footprint also ensures your office space will remain uncluttered. For front office deployments, this flexible platform is also very quiet and will support both your current and future business needs.

PROCESSOR

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware
• ClearOS
• CentOS

CHIPSET

ON SYSTEM MANAGEMENT CHIPSET

MEMORY

• Type
  • HPE SmartMemory and Standard Memory DDR4 Registered (RDIMM)

DIMM Slots Available

• • 6 (6 DIMM slots per processor, 6 channels per processor, 1 DIMM per channel)

Maximum Capacity (LRDIMM)

• • 128GB (8 x 16GB LRDIMM @2133MHz)

Maximum Capacity (RDIMM)

• 192GB (6 x 32GB RDIMM @2133MHz)

NETWORK CONTROLLER

EXPANSION SLOTS

Expansion Slot #	Technology	Bus Width	Connector Width	Form Factor	Notes
5	PCIe 3.0	X4	X8	Full-height, half-length slot	PCH
4	PCIe 3.0	X16	X16	Full-height, half-length slot	Proc 1
3	PCIe 3.0	X8	X8	Full-height, half-length slot	Proc 1
2	PCIe 3.0	X4	X8	Full-height, half-length slot	Proc 1
1	PCIe 3.0	X16	X16	Full-height, 3/4 length (up to 9.5″) Slot	Proc 1

STORAGE CONTROLLER

• HPE Smart Array S100i SR Gen10 SW RAID
• HPE Smart Array E208i-p SR Gen10 Controller
• HPE Smart Array E208e-p SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller

INTERNAL STORAGE DEVICES

• Optical Drive
  • Optional SATA 9.5mm DVD-ROM Optical Drive
  • Optional SATA 9.5mm DVD RW Optical Drive

Hard Drive Bays

• • Up to 8 Non-hot plug SATA 3.5-inch drives
  • 4 Hot plug LFF SAS/SATA HDD bays; upgradable to 8
  • 8 Hot plug SFF SAS/SATA HDD bays; upgradable to 16

Hard Drives

• None ship standard

MAXIMUM INTERNAL STORAGE

Hot Plug LFF SAS	96TB	8 x 12TB
Hot Plug LFF SATA	96TB	8 x 12TB
Hot Plug SFF SAS	38.4TB	16 x 2.4TB
Hot Plug SFF SATA	32TB	16 x 2TB
Non Hot Plug LFF SATA	32TB	8 x 4TB
Hot Plug LFF SATA SSD	30.72TB	8 x 3.84TB
Hot Plug SFF SAS SSD	61.44TB	16 x 3.84GB
Hot Plug SFF SATA SSD	61.44TB	16 x 3.84TB

POWER SUPPLY

• HPE ML110 Gen10 350W ATX Power Supply Kit
• HPE ML110 Gen10 550W ATX Power Supply Kit
• HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

SYSTEM FANS

• 1 Default system fan module (92 x 32 mm)
• 1 Default PCIe fan module (92 X 32 mm)

INTERFACES

• 1 standard (at system rear)
• 2 standard (at system rear)
• 1 optional (at system rear)
• 1 standard (at system rear)
• 1 standard (at system front)
• 1 standard (at system internal)
• 5 (2 front, 2 rear, 1 internal)
• 3 (2 rear, 1 internal)

GRAPHICS

• Video modes up to 1920 x 1200 @60Hz (32 bpp)
• 16MB Video Memory
• 32MB Flash
• 4 Gbit DDR3 with ECC protection

CHASSIS

EMBEDDED MANAGEMENT

• HPE Integrated Lights-Out (HPE iLO)
• UEFI
• Intelligent Provisioning
• iLO RESTful API

SERVER UTILITIES

• Active Health System
• Active Health System Viewer
• Smart Update
• iLO Amplifier Pack
• HPE iLO Mobile Application
• RESTful Interface Tool
• Scripting Tools
• HPE OneView Standard
• HPE Systems Insight Manager (HPE SIM)

SECURITY

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation (iLO 5 certification in progress)
• Common Criteria certification (iLO 5 certification in progress)
• Configurable for PCI DSS compliance
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 1.2 option
