Servidor HP Proliant ML30 (G10)

Aluguel, locação e comodato
HP Proliant ML30 (G10)
Overview
Specification
Documentation





Description

The HPE ProLiant ML30 Gen10 server tower is an enterprise-class appliance that provides reliability and expandability for smaller businesses. It’s also and excellent choice for an on-premise hybrid cloud solution. There are a few different chassis configurations including 4x 3.5-inch drives or 8x 2.5-inch drives both of which support a single processor.

Performance

HPE ProLiant ML30 Gen10 Server Tower front view without bezel

You can choose from three different processor families. The system will support a single Intel Xeon E-2100 processor with four to six cores or a Core i3-8300 with four cores or a Pentium G5400 with two cores. Those last two only support memory speeds of 2400MT/s while the Xeon E-2100 will support memory speeds of up to 2666MT/s. the system is powered by either a 350W or 500W PSU with an extra slot for a redundant PSU.

Storage

There are two basic storage conditions for the HPE ML30 Gen10 server tower, either 4x 3.5-inch drive bays or 8x 2.5-inch drive bays. Another option is either hot-swap or non-hot-swap storage bays. The 3.5-inch bays can also be converted to support 2.5-inch drives using a drive tray converter. A single M.2 storage device is supported on the system board. Additional M.2 storage devices can be installed via PCIe lanes.

Memory

Memory speed will be dependent on the processor with the E-2100 providing the fastest memory speeds. Only DDR4 Unbuffered (UDIMM)memory modules are supported. Maximum memory capacity is using one 16GB memory module in each of the four slots for a total of 64GB.

Expansion

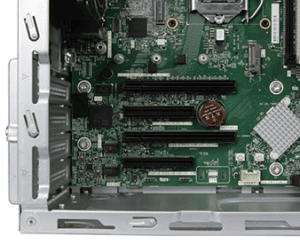

HPE ProLiant ML30 Gen10 Server Tower PCIe detail

The chassis features an embedded 2-port 1Gb Ethernet 332i Adapter but you can also install a PCIe card with a single 10Gb/s port using one of the four PCIe 3.0 ports. Only PCIe slot #1 supports a full length x16 slot along with a x16 Bus width.

Management

Integrated Lights Out (iLO) provides access to the server for health monitoring and management features, which include Active Health Systems and intelligent provisioning. HPE OneView can also be used for inventory, health monitoring, and alerting across multiple generations of HPE servers.

Summary

The HPE ProLiant ML30 Gen10 server tower is a great option for remote or branch offices offering a secure and reliable enterprise platform. You get a range of single processor options from three separate intel processor families and up to 64GB of unbuffered memory. With a storage capacity of up to 61TB this platform is also an ideal data storage solution.

PROCESSOR – 1 SOCKET
    Up to one:

  • Intel Xeon E Processor
  • Intel Core i3 Processor
  • Intel Pentium Processor
OPERATING SYSTEM
  • Microsoft Windows Server 2016 & 2019
  • Red Hat Enterprise Linux (RHEL) 7.5
  • SUSE Linux Enterprise Server (SLES) 12 SP3 and 15
  • VMware ESXi 6.5 U2 and 6.7
CHIPSET
    Intel C246
MEMORY
    • 4 DIMM slots



    • Compatible with: UDIMM (Unbuffered) DDR4 Standard Memory



    Maximum capacity: 64GB
GRAPHICS
    • Integrated Video Standard

    • Video modes up to 1920 x 1200 @60Hz (32 bpp)
    • 16MB Video Memory
    HPE Computation and Graphics Accelerators

  • HPE NVIDIA Quadro P2000 Graphics Accelerator
  • HPE AMD Radeon Pro WX4100 Graphics Accelerator
  • HPE AMD Radeon Pro WX2100 Graphics Accelerator
STORAGE
    3.5-inch Non Hot Plug HDDs and SSDs

  • SAS
  • SATA
INTERNAL STORAGE BAYS
    • 4 x 2.5-inch and 3.5-inch



    Maximum Capacity: 61.44 TB
STORAGE CONTROLLER
    • Embedded S100i SW RAID with 4 SATA ports



    Note: Field upgradeable to 6 ports by selecting drive enablement kits.
MANAGEABILITY
  • HPE iLO (Integrated Lights Out) with Intelligent Provisioning
  • HPE OneView Standard
  • HPE iLO Advanced
  • HPE iLO Advanced Premium Security Edition
  • HPE OneView Advanced
I/O PORTS

CHASSIS
    • 4U Tower
    • Dimensions: H: 14.50 in. ( 36.83 cm)



    • W: 6.89 in. (17.50 cm)



    D: 18.70 in. (47.50 cm)
OPTICAL DRIVE
    Optional:

  • SATA 9.5mm DVD-RW/DVD-ROM Optical Drive
POWER
    • HPE 350W E-Star 1.0 Power SUpply FIO Kit



    HPE 500W Flex Slot Platinum Hot Plug Low Halogen Redundant Power Supply
SECURITY OPTIONS
    UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-2 validation Common Criteria certification Configurable for PCI DSS compliance Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 1.2 option TPM (Trusted Platform Module) 2.0 option Front bezel key-lock feature, standard Padlock slot, standard Kensington Lock slot, standard Intel® SGX (Software Guard Extensions)
