Servidor HP Proliant ML350E (G8)

Description

The HPE ProLiant ML350e Gen8 tower server delivers high performance with an impressive amount of storage and memory capabilities. Part of HPE’s Project Voyager, the system’s enhanced configuration flexibility and user-inspired design make upgrades and serviceability hassle-free. New Smart Array Controllers are designed to enhance server uptime through fault tolerance features that allow the server to continue to run and process data, even during hard drive replacement.

Performance

A maximum of two processors from Intel’s Xeon E5-2400 family are supported on the ML350e Gen8 tower server and users can choose between four, six, or eight cores, depending on the desired processing power. Power consumption has been reduced compared to the previous generation with the addition of high efficiency redundant power supplies. When configured with HPE’s 94% efficient Common Slot Platinum Power Supply, the system will gain a 5% improvement in system power efficiency. The bank of fans cooling the system also consume less power than previous generations further reducing operational costs.

Memory

When configured with two processors, the HPE ML350e Gen8 tower server can support 12 DDR3 memory modules, or half that amount in a single-processor configuration. Both unbuffered (UDIMM) and registered (RDIMM) are supported in the ML350e Gen8. Load reduced (LRDIMM) memory modules are not supported. Using HPE RDIMM SmartMemory modules provides up to 192GB of memory. Unlike third-party memory modules, SmartMemory modules are fully vetted by HPE to deliver enhanced performance.

Storage

With room for either 18 large form factor (LFF) or 25 small form factor (SFF) storage devices the HPE ML350e tower server can support an impressive 54TB of internal storage. HPE’s SmartDrive carriers have LED lights to indicate drive status and visually show users which drives can be safely removed to prevent data loss from pulling drives prematurely. Businesses that need to comply with data retention and retrieval requirements can opt to add HPE’s Data Archive and Migration Software for additional data protection.

Expansion

This system has four PCIe gen3 and two PCIe gen2 expansion slots. A total of ten USB ports can be found on this system, with two internal ports and the remaining eight split evenly between the front and the back of the chassis. PCIe slots can be used for additional communications and to support external storage.

Management

HPE’s iLO 4.0 Management Engine automates common tasks and is embedded inside every ProLiant Gen8 server to support the server’s complete lifecycle. HPE’s Intelligent Provisioning allows administrators to deploy this system three times faster than previous generations of ProLiant servers and simplifies the process by eliminating the need for any physical media. With iLO Agentless Management, hardware monitoring is active as soon as the power cord and Ethernet cable are connected. For businesses running cloud applications, HPE offers an optional Insight Cluster Management Utility to streamline lifecycle management and support hyperscale clusters of Linux ProLiant systems. Server management is further simplified with all management tools and assets displayed on a single screen for easy access.

Summary

The HPE ProLiant ML350e Gen8 tower server is a great solution for both enterprise and SMB workloads with its flexible configuration capabilities. HPE’s iLO Management Engine, SmartDrive carriers, and tool-less access to components make this server easy to deploy, manage, and upgrade while Intel’s Xeon E5-2400 processors deliver high-performance computing power to handle a variety of workloads.

PROCESSOR – 2 SOCKETS

OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware

CHIPSET

ON SYSTEM MANAGEMENT CHIPSET

MEMORY

• Type
  • DDR3 Registered (RDIMM) or Unbuffered (UDIMM)

DIMM Slots Available

• • 12 DIMM slots (6 DIMM slots per CPU)

Standard (Entry Models)

• • 2GB (1 x 2GB) Unbuffered DIMMs PC3L-10600E

Standard (Base Models)

• • 4GB (1 x 4GB) Unbuffered DIMMs PC3L-10600E

Standard (Performance Models)

• • 8GB (2 x 4GB) Unbuffered DIMMs PC3L-10600E

Maximum (RDIMM)

• • 192 GB (12 x 16 GB) RDIMMM

Maximum (UDIMM)

• 96 GB (12 x 8 GB) UDIMM

NETWORK CONTROLLER

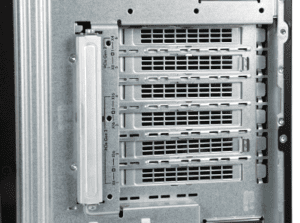

EXPANSION SLOTS

Expansion Slot #	Technology	Bus Width	Connector Width	Bus Number	Form Factor
6	PCIe 2.0	X1	X4	0	Half Length, Full Height
5	PCIe 2.0	X4	X8	0	Full Length, Full Height
4	PCIe 3.0	X8	X16	32	Full Length, Full Height
3	PCIe 3.0	X16	X16	32	Full Length, Full Height
2	PCIe 3.0	X16	X16	0	Full Length, Full Height
1	PCIe 3.0	X4	X8	0	Full Length, Full Height

STORAGE CONTROLLER

• Entry Models
  • HP Dynamic Smart Array B120i/Zero Memory SATA Controller (RAID 0,1,10)

Base Models

• • HP Dynamic Smart Array B120i/512MB FBWC SATA Controller (RAID 0,1, 5, 10)

Performance Models

• HP Smart Array P420/1GB FBWC Controller (RAID 0/1/1+0/5/5+0/6/6+0)

INTERNAL STORAGE DEVICES

• Optical Drives
  • HP Half-Height SATA DVD-ROM Optical Drive

Hard Drives

• • None ship standard

Hard Drive Bays

• Up to 24 SFF hard drive bays or 18 LFF hard drive bays

MAXIMUM INTERNAL STORAGE

Hot Plug LFF SAS	54TB	18 x 3TB
Hot Plug LFF SATA	54TB	18 x 3TB
Hot Plug SFF SAS	28.8TB	24 x 1.2TB
Hot Plug SFF SATA	24TB	24 x 1TB
Non-Hot Plug LFF SATA	12TB	4 x 3TB
Hot Plug SFF SAS SSD	2.4TB	24 x 100GB
Hot Plug LFF SATA SSD	1.8TB	18 x 100GB

INTERFACES

• Serial
  • 1

Video

• • 1 (rear)

Network RJ-45 (Ethernet)

• • 3 (1 dedicated for HP Integrated Lights-Out)

HP iLO Remote Management Network Port

• • 1 Gb Dedicated

SD slot

• • 1 (internal)

USB

• 10 (4 front, 4 rear, 2 internal)

SYSTEM FANS

GRAPHICS

• Integrated Matrox G200 video standard
• HP iLO 4 On System Management Memory

CHASSIS

• Tower 5U

ON SYSTEM MANAGEMENT

• HP iLO
• HP Agentless Management
• HP Active Health System
• HP Intelligent Provisioning
• HP iLO Mobile App

HP INSIGHT MANAGEMENT

SECURITY

• Power-on password
• Setup password
• Serial interface control
• Power switch security
• Administrator’s password
