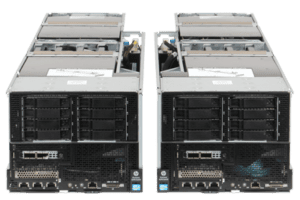

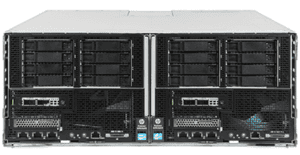

The HPE ProLiant SL270s Gen8 SE server node is a 4U, half-width blade that supports dual Intel Xeon E5-2600 v2 processors, that’s what the SE signifies. The other version without the “SE” only supports the Xeon E5-2600 v1 processors. There is a left and a right version of this compute node and must be ordered accordingly. The 4U ProLiant S6500 Chassis supports a number of different server nodes, including the SL270s Gen8 SE, and provides power, cooling, and centralized management for reduced operational costs. The HPE S6500 chassis will support only two of these server nodes and each server node supports up to eight GPU accelerators for extreme rack-level graphics processing. The GPUs are housed in a removable cage, while the memory modules and CPUs occupy the system board located under the GPU cage. This platform is ideal for high-performance computing applications in Oil & Gas, Life Sciences, Manufacturing, Research, and Finance.
A maximum of two Intel Xeon E5-2600 v2 processors with up to 12 cores are supported on the HPE SL270s Gen8 SE server node. E5-2600 v1 processors are not compatible with this platform, unless you get the non-SE version. You can start out with just a single processor and add another as business needs change. Each server module also supports up to eight GPU accelerators either from Nvidia or Intel.
Each node has 16 total DIMM slots and supports HPE SmartMemory unbuffered (UDIMM), registered (RDIMM), and Load Reduced (LRDIMM) memory modules. Use of 32GB LRDIMM modules in all 16 slots, in a dual processor configuration will provide the most memory capacity at 512GB. Using RDIMM modules the system will support up to 256GB using 16 x 16GB memory modules, or half that value when using 16 x 8GB UDIMM modules.
The front of each server blade supports eight front mounted small form factor SAS or SATA hot plug drives and supports a maximum storage capacity of 9.6TB using SAS SFF drives. Embedded on the system board is an HPE Dynamic Smart Array B320i controller but the system can also be ordered with the HPE Smart Array H220i Host Bus Adapter, which is standard equipment. If an HPE Smart Array controller is installed in the expansion card slot, the controller will default to a RAID configuration based on the number of drives installed. Flash-Backed Write Cache (FBWC) is supported on this server and includes a cache module and capacitor pack. In the event the system loses power, the capacitor will charge the system for up to 80 seconds while the controller transfers cached data from DDR to Flash memory.
A single PCIe 3.0 expansion slot is located on the front of the system and can support either a low profile card or FlexibleLOM card. Eight other PCIe 3.0 slots are located in the GPU cage and provide support for up to eight full-length, full-height GPUs. Graphics on this system are handled by an integrated Matrox G200 with integrated HPE iLO On System Management Memory of 16MB flash.
The HPE iLO Management Engine depends on the integrated iLO module to provide management features addressing the full lifecycle of the server including, initial deployment, ongoing management, plus service alerting and remote support. Optional features include HPE Insight Control for infrastructure management, HPE iLO Advanced for remote server management, and HPE iLO Scale-Out ideal for web/hosting/cloud service providers.
The HPE ProLiant SL270s Gen8 SE server node is specifically designed for rapid scale-out and supporting High-Performance and Hyperscale computing applications. When outfitted with dual processors and eight GPU accelerators it can deliver powerful performance for applications in the sciences, finance, and oil and gas exploration.
PROCESSOR – 2 SOCKETS
Intel® Xeon® processor E5-2600 and E5-2600 v2 product families
Intel C600 Series Chipset
ON SYSTEM MANAGEMENT PROCESSOR
HPE iLO (Firmware: HPE iLO 4)
Advanced ECC (multi-bit error protection)
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available:
16 total DIMM Slots available
Standard (Base Models)
8GB (2x 4G) Registered DIMMs (1333MHz)
Maximum (RDIMM) (per server tray)
256GB (16 x 16GB) Registered memory configurations
Maximum (UDIMM) (per server tray)
128GB (16 x 8GB)
Maximum (LRDIMM) (per server tray)
512GB (16 x 32GB) LRDIMM memory configurations
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 1866MHz, 1600MHz, 1333MHz, or 1066MHz.
HPE Ethernet 1Gb 2-port 361i Adapter
All 8 GPU Slots
Full-length, full height
HPE H220i Host Bus Adapter (B320i Dynamic Smart Array with FW update)
INTERNAL STORAGE DEVICES
Via USB through the SUV port, external support only
Via USB through the SUV port, external support only
None ship standard
MAXIMUM INTERNAL STORAGE
4U Half Width tray
Hot Plug SATA SFF 2.5″
8 x 1TB
Hot Plug SAS SFF 2.5″
8 x 1.2TB
Hot Plug SATA SSD 2.5″
8 x 800GB
Hot Plug SAS SSD 2.5″
8 x 800GB
Two 1GbE NIC ports
ProLiant Gen8 servers offer a new networking technology – Flexible Network Technology. The SL270s Gen8 server offers the customer the choice of 1Gigabit, 10Gigabit or InfiniBand FlexibleLOM solutions depending on workload. For further details on the choices, see FlexibleLOM in the Networking Section of this document for further details.
Serial USB Video Port (SUV)
HPE iLO Remote Management Network Port
1 Gb Dedicated
INDUSTRY STANDARD COMPLIANCE
ACPI 2.0b Compliant
PCIe 3.0 Compliant
Microsoft® Logo certifications
USB 1.1 and 2.0 Compliant
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORT FOR PROLIANT SERVERS
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
HPE s6500 Redundant Fan Kit
HPE s6500 Non-Redundant Fan Kit
Integrated Matrox G200 video standard
HP iLO 4 On System Management Memory
Fully configured SL270 is 4U, half-width
Fully configured s6500 chassis is 4U, full-width
ON SYSTEM MANAGEMENT
HP iLO Management Engine
HP INSIGHT MANAGEMENT SOFTWARE
HP Service Pack for ProLiant (SPP)
QuickLock, Network Server Mode
Serial interface control
iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption
