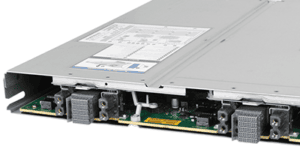

Servidor HP Superdome X BL920S (G9)

Description

The HPE Integrity Superdome X enclosure is a foundational building block for the Superdome X and can support one to eight HPE BL920 Gen9 server blades vertically. The modular design of the enclosure delivers superb scalability for mission critical computing, and provides the power, cooling, management, and networking for the supported server nodes. Each enclosure supports 15 fans, 12 power supplies, two Onboard Administrator (OA) modules, 2 Global Partitioning Service Modules (GPSM) and four HPE Crossbar Fabric Modules (XFMs). Hard partitioning or nPar physically separates cell boards, which in turn operate independently of other groups of cell boards and ensures that other partitions are not affected by single point failures caused by hardware or software events in other partitions. With Eight BL920s Gen9 server blades installed, each enclosure will support up to 16 processors, and up to 48TB of storage.

Performance

The HPE BL920 Gen9 server blade supports either one or two of Intel’s Xeon E7-8800 v3 or Xeon E7-8800 v4 processors. With v4 processors, the system will support up to 48 cores with two processors. Using Xeon E7-8800 v3 processors the system will only support up to 36 cores with dual processors.

Memory

Each blade supports up to 48 DDR3 (with v3 processors) or DDR4 (with v4 processors) with two CPUs installed, or 24 memory modules per processor. With a full complement of 128GB memory modules, each blade will support up to 6TB. A minimal configuration requires two 16GB memory modules for 32GB total. The blades support cache and double-chip spare, which is a firmware function that effectively detects and corrects memory errors, and is a more cost-effective alternative to memory mirroring.

Storage

Storage is not directly supported on the server blade but the Superdome X does support Fibre Channel data connectivity and boot support with a variety of HPE storage enclosures including the HPE 3PAR StoreServe 8400/7000/7450/and 10000, among others.

Expansion

The HPE Bl920s Gen9 features three Gen three PCIe mezzanine slots with one x8 slot and two x16 slots. There’s also two dual port Flexible LAN on Motherboard (FlexLOM) slots to connect up with external storage enclosures. Fibre channel and LAN connectivity is supported by the interconnect modules mounted in the rear of the enclosure and provide network access for data transfers. The IO cards mounted in the server blades must be matched to a complimentary interconnect module. Interconnect Modules have specific location numbering and connect to specific server bays on the front of the enclosure.

Combinations of server components and server firmware versions may be different depending on the supported operating system. Refer to the Firmware Matrix for HPE Integrity Superdome X servers for specific supported combinations.

Management

Management of the individual blades within the Superdome X enclosure is handled at the enclosure level with two Onboard Administrator (OA) modules, when fully outfitted with 8 server blades. The OA modules can monitor individual components or as a group using a remote terminal through a browser interface (GUI) or by the Command Line interface (CLI). An insight display panel on the front of the enclosure also provides health status for the enclosure and installed server blades.

Summary

The HPE Superdome X BL920s server blade is a high-density, two-socket platform designed specifically for implementation with the Superdome X Enclosure. It offers scalability to support a number of mission-critical applications.
