Servidor HP Synergy 480 (G10)

Aluguel, locação e comodato
HP Synergy 480 (G10)
Overview
Specification
Documentation

Description

HPE Synergy 480 Gen10 front

The HPE Synergy Frame 12000 can support up to 12 half-height compute nodes offering storage, plus compute and memory, all of which can be allocated at a moments’ notice with Synergy’s composable infrastructure. Both Gen9 and Gen10 Synergy compute and storage modules are supported. The composable infrastructure creates pools of compute, memory, and storage for rapid deployment of services. This system is also highly redundant ensuring high-availability of system resources. The HPE Synergy 480 Gen10 compute module offers high density with two processors and up to 3TB of memory for demanding workloads. Power and management of the system is provided at the chassis level by the 12000 Frame.

HPE Synergy 12000 Frame Compute, Storage, and Graphics Modules

Performance

You can install one or two 1st or 2nd generation Intel Xeon Scalable processors up to 28 cores. Each processor supports six memory channels with 12 memory module slots per processor.

Memory

Memory supported on the HPE 480 Gen10 depends on your choice of processors with options for 1TB, 2TB and 4.5TB, per socket for up to 9TB. Memory supported on 1st generation Intel Xeon Scalable processors will operate at speeds of up to 2666Mhz, while 2nd generation Intel Xeon Scalable processors support memory speeds of up to 2933MHz and much higher memory capacities.

Storage

There are two storage bays on the front of the system that will support SATA, SAS or 2.5-inch NVMe drives depending on the model. Expansion cards can be used to connect this system to additional storage. There are two options for installing M.2 drives on this system. One uses a 2.5-inch adapter option that supports two M.2 SATA drives. One HPE SFF flash adapter can be installed in each of the two front drive bays but will also require the premium backplane. The other way, is by adding an M.2 flash drive adapter board, which also supports two M.2 drives on a circuit board that is mounted inside towards the front of the chassis, under the drive trays. RAID is supported either by the integrated HPE Smart Array S100i SR Gen10 SW RAID, which is off by default, or another HPE Smart Array.

Expansion

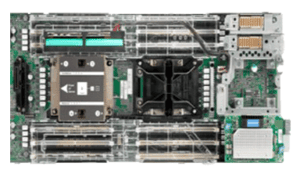

HPE Synergy 480 Gen10 motherboard

Three x16 PCIe 3.0 expansion slots provide options for additional storage and networking, including optional Smart Array storage cards to support SAS storage devices.

Management

Management of the system is handled by the HPE Frame 12000 chassis, which supports an HPE Synergy Composer module powered by HPE OneView in conjunction with integrated Lights Out (iLO) Standard. Two Composers are recommended for redundancy.

Summary

The HPE Synergy 480 Gen10 Compute module is a worthy successor to the Gen9 version with support for significantly more, and faster, memory from the 2nd generation Intel Xeon Scalable processors. The HPE Frame 12000 Chassis also supports both Gen9 and Gen10 compute and storage nodes to help extend the useful life of your network hardware.

PROCESSOR – 2 SOCKET
  • Intel Xeon Scalable Family processors
  • Choice of Generation 1 or 2 Series: 8100/8200 6100/6200 5100/5200 4100/4200 3100/3200
CACHE MEMORY
  • Up to 38.5 MB
CHIPSET
    Intel C621 Series Chipset
MEMORY PROTECTION
  • Advanced ECC
  • Memory Mirroring
  • Memory Online Spare Mode (Rank Spare Mode)
MEMORY
    Type

  • HPE DDR4-2666 or 2933 SmartMemory
  • DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
  • DIMM Slots Available

  • 24 (12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)
  • Maximum (LRDIMM)

  • 3 Tb (24 x 128GB)
  • Maximum (RDIMM)

  • 1.5 Tb (24 x 64GB)
  • This compute module does not support mixing LRDIMMs and RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS initialization.
NETWORK CONTROLLER
    Synergy 6810C 25/50Gb Converged Network Adapter 2 Ports per controllerSynergy 3820C 10/20Gb Converged Network AdapterSynergy 2820C 10Gb Converged Network Adapter
MEZZANINE CONNECTORS
    Three (3) I/O expansion mezzanine connectors:

  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards) (mezzanine connector 1)
  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards (mezzanine connector 2)
  • x16 PCIe 3.0 Type C (supports Type C mezzanine cards) (mezzanine connector 3)
  • Mezzanine options include:

  • HPE Synergy 2820C 10Gb Converged Network Adapter
  • HPE Synergy 3820C 10/20Gb Converged Network Adapter
  • HPE Synergy 4610C 10/25Gb Ethernet Adapter
  • HPE Synergy 4820C 10/20/25Gb Converged Network Adapter
  • HPE Synergy 6410C 25/50Gb Ethernet Adapter
  • HPE Synergy 6810C 25/50Gb Ethernet Adapter
STORAGE CONTROLLER
    Choice of:

  • HPE Smart Array P204i-c Gen10 12G SAS Modular Controller
  • HPE Smart Array P416ie-m SR Gen10
  • HPE FIO Enable Smart Array SW RAID
  • HPE Synergy Compute Chipset SATA FIO Board Kit
STORAGE
Hot Plug SFF SAS SSD 30.6TB 2 x 15.3TB
Hot Plug SFF SATA SSD 7.68TB 2 x 3.84TB
Hot Plug SFF NVMe SSD 15.6TB 2 x 7.8TB
Hot Plug uFF SATA SSD 1.3TB 2 x 340GB
INTERFACES
    Micro SDHC Slot

  • 1 x internal Micro Secure Digital High Capacity (Micro SDHC) card slot
  • USB 3.0 Port

  • 1 x internal USB 3.0 connector for USB flash media drive keys
  • USB 3.0 Port

  • 1 x external USB 3.0 connector for USB flash media drive keys
  • iLO Port

  • 1 x external USB port for direct iLO access to compute
ENCLOSURES
    HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

  • Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)
  • Up to 5 half-height double-wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)
  • One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen9 Compute Modules
GRAPHICS
    Integrated matrix G200eH2 video standard with 16MB of video RAM
OPERATING SYSTEMS AND VIRTUALIZATION
  • Microsoft Windows Server
  • Microsoft Hyper-V Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware ESXi
  • VMware vSphere
  • Citrix Xenserver 7.0, 7.1 (Primary use for HPE GPU options/XENDesktop)
