Servidor HP Synergy 480 (G10) MXM

Aluguel, locação e comodato
HP Synergy 480 (G10) MXM
Overview
Specification
Documentation

Description

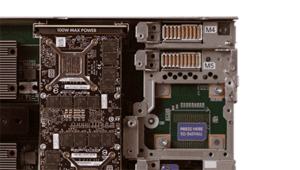

HPE Synergy 480 Gen10 Multi-MXM Graphics Expansion Module detail view

There are three different configurations for the HPE Synergy 480 Gen10 Multi-MXM Graphics Expansion Module. One that supports two full-height, full-length, double-wide 300W GPUs. Another that supports four full-height, full-length, single-wide GPUs. And this version, which features up to six MXM graphics cards from Nvidia. Up to four Synergy Frame 12000 chassis can be hosted in each rack and can provide thousands of user sessions per rack. Two pass-thru mezzanine slots on the Graphics module provide a pass-thru connection to the compute module, which is attached to the graphics module with two screws. The Synergy Frame 12000 supports both Synergy 480 and 660 Gen10 compute and storage modules.

HPE Synergy 12000 Frame Compute, Storage, and Graphics Modules

  • HPE Synergy 12000 Frame
  • HPE Synergy 660 Gen10 Compute Module
  • HPE Synergy 480 Gen10 Compute Module
  • HPE Synergy 480 Gen9 Compute Module
  • HPE Synergy D3940 Storage Module

Performance

The HPE Multi-MXM Graphics Expansion Module only houses the GPUs, while the attached compute module does the processing with dual Intel Xeon Scalable processors supporting up to 2TB with both processors installed. Both 1st and 2nd generation Intel Xeon Scalable processors are supported and support memory speeds of up to 2666MT/s or 2966MT/s, respectively. Each processor supports 6x memory channels and 12x memory module slots.

Memory

With two 2nd generation Intel Xeon Scalable processors (Cascade Lake) installed the system will support up to 9TB using CPUs with an “L” suffix. Using 1st generation intel Xeon Scalable processors the system can support a maximum of 3TB using Load-Reduced (LRDIMM) memory modules or 1.5TB using Registered (RDIMM) memory modules but only with CPUs featuring an “M” suffix. Regular 1st generation processors will support only 780GB each for a total of 1.5TB. Non-Volatile (NVDIMM) memory modules, and Intel Optane Data Centric Persistent memory modules (DCPMM) are also supported, using the appropriate processors.

Storage

The Synergy 480 Gen10 compute modules has two 2.5-inch front drive bays. Additional storage can be added in the form of a M.2. It is also compatible with uFF drives that feature two M.2 SSDs per HD tray for a total of 4x uFF drives. SATA drives are supported natively, while SAS and uFF drives will require a discrete HD/RAID controller, which mounts just under the drive bays. You can also install a P416ie-m SR Gen 10 Smart Array Controller to access the Synergy D3940 storage module, which supports up to 40x 2.5-inch storage devices. The P416ie-m can also be used to support the drives in the front storage bays with an appropriate HD cable.

Expansion

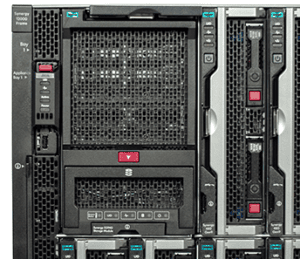

HPE Synergy 480 Gen10 in HPE Synergy 12000 Frame

The MXM Graphics Expansion module can support six MXM form factor GPUs. Two PCIe connectors connect the graphics mezzanine to the compute module. Additional HD/RAID controllers can also be installed for support of SAS and uFF drive types. Optional dual port Fibre Channel mezzanine cards provide redundant Storage Area Network (SAN) connections.

Management

System management leverages the integrated Lights Out module in each compute node accessible from the HPE Synergy console on the front of the Synergy 12000 Frame or from the Frame Link Module on the rear of the chassis. A custom version of HPE’s OneView provides one to many systems management either at the chassis or remotely with an advanced license. Additionally, The Synergy Image Streamer supports the composable nature of the system allowing rapid image/application changes using software defined intelligence from the HPE Synergy Composer, which manages all of the physical resources on the system.

Summary

The HPE Synergy 480 Gen10 Multi-MXM Graphics Expansion module is an excellent addition to the Synergy 12000 Frame offering graphic support for applications in engineering, architecture and financial analysis. The unique composable architecture offered by the 12000 Frame provides an agile and resilient network that’s easy to provision virtual and physical aspects of compute, memory, and storage.

PROCESSOR – 2 SOCKET
  • Intel Xeon Scalable Family Processors Gen1
  • intel Xeon Scalable Family Processors Gen2
CHIPSET
    Intel C621 Series Chipset
MEMORY PROTECTION
  • Advanced ECC
  • Online Spare
  • Memory Online Spare Mode (Rank Spare Mode)
MEMORY
    Type

  • HPE DDR4-2666
  • 2933 SmartMemory
  • DIMM Slots Available

  • 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
  • Maximum (Processor Department)

  • 1 TB
  • 2 TB
  • 4.5 TB
NETWORK CONTROLLER
    HPE Synergy 3820C 10/20G Converged Network Adapter
MEZZANINE CONNECTORS
    Three (3) I/O expansion mezzanine connectors:

  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards) (mezzanine connector 1)
  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards (mezzanine connector 2)
  • x16 PCIe 3.0 Type C (supports Type C mezzanine cards) (mezzanine connector 3)
  • Mezzanine options include:

  • HPE Synergy 3820C 10/20Gb Converged Network Adapter
  • HPE Synergy 2820C 10GbE Converged Network Adapter
  • HPE Synergy 4820C 10/20/25Gb CNA
  • HPE Synergy 4610C 10/25Gb Ethernet Adptr
  • HPE Synergy 6810C 25/50Gb Ethernet
  • HPE Synergy 6410C 25/50Gb Ethernet
  • HPE Synergy 5330C 32G Fibre Channel Host Bus Adapters
  • HPE Synergy 5830C 32G Fibre Channel Host Bus Adapters
  • HPE Synergy 3530C 16G Fibre Channel Host Bus Network Adapter
  • HPE Synergy 3830C 16G Fibre Channel Host Bus Network Adapter
STORAGE CONTROLLER
    Software RAID

  • HPE Smart Array S100i SR Gen10 SW RAID
  • Essential RAID Controller

  • HPE Smart Array E208i-c SR Gen10 12G SAS Modular Controller
  • Performance RAID Controller

  • HPE Smart Array P204i-c SR Gen10 12G SAS Modular Controller
  • HPE Smart Array P416ie-m SR Gen10 12G SAS Mezzanine Controller
STORAGE
Hot Plug SFF SAS SSD 30.6TB 2 x 15.3TB
Hot Plug SFF SATA SSD 7.68TB 2 x 3.84TB
Hot Plug SFF SATA/SAS HDD 4.0TB 2 x 2.0TB
Hot Plug SFF NVMe SSD 15.6TB 2 x 7.8TB
Hot Plug uFF SATA SSD 1.3TB 4 x 340GB
M.2 SATA SSD Option Drives 1.9TB 2 x 960GB
INTERFACES
    Micro SDHC Slot

  • 1 x internal Micro Secure Digital High Capacity (Micro SDHC) card slot
  • USB 3.0 Port

  • 1 x internal USB 3.0 connector for USB flash media drive keys
  • USB 3.0 Port

  • 1 x external USB 3.0 connector for USB flash media drive keys
  • iLO Port

  • 1 x external USB port for direct iLO access to compute
ENCLOSURES
    HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

  • Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)
  • Up to 5 half-height double-wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)
  • One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen9 Compute Modules
GRAPHICS
    Integrated Matrox G200eH2 video standard with 16 MB of Video RAM

  • 1280 x 1024 (32 bpp)
  • 1920 x 1200 (16 bpp)
  • Up to 6 x MXM Form Factor GPUs

GRAPHICS ACCELERATORS
  • HPE Synergy 480 Gen10 Multi MXM FIO expansion module
  • HPE SY 480 NVIDIA Tesla P6 Multi MXM option
OPERATING SYSTEMS AND VIRTUALIZATION
  • Microsoft Windows Server
  • Microsoft Hyper-V Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware ESXi
  • VMware vSphere
  • Citrix Xenserver
