Servidor HP Synergy 480 (G9)

Aluguel, locação e comodato
HP Synergy 480 (G9)
Overview
Specification
Documentation

Description

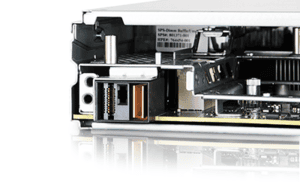

HPE Synergy 480 Gen9 Compute Module front view

All of HPE’s Synergy compute modules are supported on the HPE Synergy 12000 Frame. The compute modules provide the compute, memory, and storage, while the Synergy 12000 Frame provides redundant power, cooling, networking, and management features. Up to 6 full-height modules, 12 half-height modules or a combination of the two can be installed. The HPE Synergy 480 Gen9 Compute Module performs well when tasked with demanding workloads. The module has a half-height form factor and supports both Load Reduced and Registered DIMMs, with maximum capacities of 1.5TB and 768GB, respectively. It supports a massive 7.68TB of storage.

HPE Synergy 12000 Frame Compute, Storage, and Graphics Modules

Performance

Featuring Intel’s C610 Series chipset, the HPE 480 Gen9 can support a maximum of two Intel Xeon E5-2600 v4 processors with up to 22 cores each. Each processor supports four memory channels with three DIMM modules per channel and 12 DIMM slots per processor total.

Memory

There are 24 DIMM slots supporting either Load Reduced (LRDIMM) or Registered (RDIMM) DDR4 memory modules. The maximum capacity for LRDIMMs is 1.5TB using 24 x 64GB memory modules. Using RDIMMs memory modules, the system will support a maximum of 768GB using 24 x 32GB memory modules. Advanced ECC is also available along with Memory Mirroring and Memory Online Spark Mode offering additional data protection.

Storage

There are two drive bays located on the front of the system that support only hot-plug 2.5-inch drives. A wide range of different drive types are supported, including SFF SAS and SATA HDDs and SSDs. To protect your stored data and increase resiliency, you can choose from several storage controllers. HPE’s Smart Array P240nr Controller offers RAID levels of 0, 1, 10, 5, 6, and 1 with Advanced Data Mirroring (ADM). Meanwhile the HPE Smart Array P542D Controller supports RAID 0, 1, 5, 50, 60, 1 ADM, and 10 ADM.

Expansion

HPE Synergy 480 Gen9 Compute Module rear view

To expand the capabilities of this system there are three x16 PCIe 3.0 I/O mezzanine connectors. The mezzanine connectors support Type C and Type D mezzanine cards. Options include dual-port 10/20 Gb compute module mezzanine adapters and dual-port 16 Gb Fibre Channel HBA options. In addition to the mezzanine connectors, this system is also compatible with a network controller. Options include, HPE Synergy 3820C 10/20 Gb, 3520C 10/20 Gb, and 2820C 10/20 Gb Converged Network Adapters. An iLO Network Controller is also standard on this system.

Management

HPE integrated Lights Out (iLO) with 4GB NAND is the Swiss army knife of HPE’s system management tools and provides out-of-band management of the system. Additional tools such as the HPE Synergy Composer with HPE OneView provide even more tools to manage the system. HPE iLO helps you monitor the system with alerts, reports, and remote management features.

Summary

The HPE Synergy 480 Gen9 supports a generous memory component at up to 1.5TB and can provide your business with a flexible infrastructure that can scale on the fly, just by adding more compute modules. With an assortment of different processor options to choose from, you can configure a system that works best for you and your workload. HPE’s exceptional integrated management tools and software can also help you manage your system from the beginning, to end of life.

PROCESSOR – 2 SOCKET
  • Intel Xeon E5-2699 v4 (2.2GHz/22-core/55MB/145W)
  • Intel Xeon E5-2698 v4 (2.2GHz/20-core/50MB/135W)
  • Intel Xeon E5-2697 v4 (2.3GHz/18-core/45MB/145W)
  • Intel Xeon E5-2697A v4 (2.6GHz/16-core/40MB/145W)
  • Intel Xeon E5-2695 v4 (2.1GHz/18-core/45MB/120W)
  • Intel Xeon E5-2690 v4 (2.6GHz/14-core/35MB/135W)
  • Intel Xeon E5-2683 v4 (2.1GHz/16-core/40MB/120W)
  • Intel Xeon E5-2680 v4 (2.4GHz/14-core/35MB/120W)
  • Intel Xeon E5-2667 v4 (3.2GHz/8-core/25MB/135W)
  • Intel Xeon E5-2660 v4 (2.0GHz/14-core/35MB/105W)
  • Intel Xeon E5-2650 v4 (2.2GHz/12-core/30MB/105W)
  • Intel Xeon E5-2650L v4 (1.7GHz/14-core/35MB/65W)
  • Intel Xeon E5-2643 v4 (3.4GHz/6-core/20MB/135W)
  • Intel Xeon E5-2640 v4 (2.4GHz/10-core/25MB/90W)
  • Intel Xeon E5-2637 v4 (3.5GHz/4-core/15MB/135W)
  • Intel Xeon E5-2630 v4 (2.2GHz/10-core/25MB/85W)
  • Intel Xeon E5-2630L v4 (1.8GHz/10-core/25MB/55W)
  • Intel Xeon E5-2623 v4 (2.6GHz/4-core/10MB/85W)
  • Intel Xeon E5-2620 v4 (2.1GHz/8-core/20MB/85W)
  • Intel Xeon E5-2609 v4 (1.7GHz/8-core/20MB/85W)
  • Intel Xeon E5-2603 v4 (1.7GHz/6-core/15MB/85W)
CACHE MEMORY
  • 55MB (1x55MB) L3 cache)
  • 50MB (1x50MB) L3 cache)
  • 45MB (1x45MB) L3 cache)
  • 40MB (1x40MB) L3 cache)
  • 35MB (1x35MB) L3 cache)
  • 30MB (1x30MB) L3 cache)
  • 25MB (1x25MB) L3 cache)
  • 20MB (1x20MB) L3 cache)
  • 15MB (1x15MB) L3 cache)
  • 10MB (1x10MB) L3 cache )
CHIPSET
    Intel® C610 Series Chipset
MEMORY PROTECTION
  • Advanced ECC
  • Memory Mirroring
  • Memory Online Spare Mode (Rank Spare Mode)
MEMORY
    Type

  • HPE SmartMemory
  • DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
  • DIMM Slots Available

  • 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
  • Maximum (LRDIMM)

  • 1.5 Tb (24 x 64GB)
  • Maximum (RDIMM)

  • 768 Gb (24 x 32GB)
NETWORK CONTROLLER
    HPE Synergy 3820C 10/20 Gb Converged Network AdapterHPE Synergy 3520C 10/20 Gb Converged Network AdapterHPE Synergy 2820C 10/20 Gb Converged Network AdapterStandard iLO Network Controller:

  • One (1) 1 Gb/s port for the HPE iLO 4 to HPE Frame Link Module connection.
MEZZANINE CONNECTORS
    Three (3) I/O expansion mezzanine connectors:

  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards) (mezzanine connector 1)
  • x16 PCIe 3.0 Type D (supports Type C and Type D mezzanine cards (mezzanine connector 2)
  • x16 PCIe 3.0 Type C (supports Type C mezzanine cards) (mezzanine connector 3)
  • Mezzanine options include:

  • Dual-port 10/20 Gb compute module mezzanine adapter options for additional network ports
  • Dual-port 16 Gb Fibre Channel HBA options for SAN connectivity.
STORAGE CONTROLLER
    Choice of:

  • HPE Smart Array P240nr Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0, 1, 10, 5, 6, and 1 ADM
  • HPE Smart Array P542D Controller with 2GB Flash-Backed Write Cache (FBWC) supporting RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM, and 10 ADM
  • HPE H240nr Smart HBA supporting RAID 0, 1, 10, 5
  • HPE B140i (chipset SATA)
STORAGE
Hot Plug SFF SAS 4.0TB 2 x 2.0TB
Hot Plug SFF SATA 4.0TB 2 x 2.0TB
Hot Plug SFF SAS SSD 7.68TB 2 x 3.84TB
Hot Plug SFF SATA SSD 3.2TB 2 x 1.6TB
Hot Plug SFF NVMe SSD 4.0TB NVMe 2 x 2.0TB NVMe
Hot Plug uFF SATA SSD 1.36TB 4 x 340GB
INTERFACES
    Micro SDHC Slot

  • 1 x internal Micro Secure Digital High Capacity (Micro SDHC) card slot
  • USB 3.0 Port

  • 1 x internal USB 3.0 connector for USB flash media drive keys
  • USB 3.0 Port

  • 1 x external USB 3.0 connector for USB flash media drive keys
ENCLOSURES
    HPE Synergy 12000 Frame, is the base for all Synergy products and supports:

  • Up to 12 half-height, 6 full-height single-wide, or 3 full-height double-wide Compute Modules (mixing allowed)
  • Up to 5 half-height double-wide HPE Synergy D3940 Storage Modules (mixing with compute modules in any to any ratio allowed)
  • One HPE Synergy 12000 Frame will support up to twelve (12) HPE Synergy 480 Gen9 Compute Modules
GRAPHICS
    Integrated Matrox G200eh video controller
OPERATING SYSTEMS AND VIRTUALIZATION
  • Microsoft Windows Server
  • Microsoft Hyper-V Server
  • Red Hat Enterprise Linux (RHEL)
  • SUSE Linux Enterprise Server (SLES)
  • VMware ESXi
