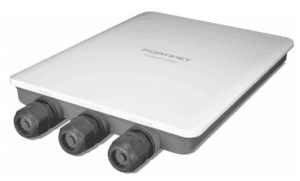

FortiAP 234F Revenda Fortinet

2x2 Wi-Fi 6 (802.11ax), Outdoor wireless AP: Tri radio, Internal antenna, 2 x GE RJ45 ports
Overview
Specifications
Documentation

Overview:

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiAP Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for protecting your LAN Edge from the campus to branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a single pane-of-glass management console and protects your network from the latest security threats.

Unified Management

Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance.

Advanced Security Protection

Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.

Built-in Wi-Fi Security

Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

Highlights

This enterprise class Wi-Fi 6 outdoor AP provides three radios with internal antennas as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

Specifications:

  FortiAP-234F
Hardware
Hardware Type Outdoor AP
Number of Radios 3 + 1 BLE
Number of Antennas 2 dual band WiFi + 1 dual band scanning + 1 single band 2.4 GHz BLE/ZigBee
Antenna Type and Peak Gain Directional patch antenna
Single band antennas: 10 dBi in 2.4 GHz band, 10 dBi in 5.0 GHz band
Scanning radio: 3.5 dBi in 2.4 GHz band and 4.5 dBi in 5 GHz band
BLE antenna: 3.5 dBi in 2.4 GHz band
Frequency Bands (GHz) 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service
Radio 2 Capabilities Frequency band: 5.0GHz
Channel width: 20/40/80MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2×2 Service
Radio 3 Capabilities Frequency bands: 2.4GHz and 5.0GHz
MIMO Chains: 1×1 Frequency Scanning
Maximum Data Rate Radio 1: up to 574 Mbps
Radio 2: up to 1200 Mbps
Radio 3: Frequency scanning only
Bluetooth Low Energy Radio Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces 2x 10/100/1000 Base-T RJ45, 1x Type 2.0 USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) 1 x 802.3at PoE default
Operational modes: powered by 2 x 802.af PoE – full functionality support; 1 port 802.3af – operates in reduced power (17dBm) R1 & R2
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™, WPA2™, and WPA3™ with 802.1x or preshared key, WEP, Web Captive Portal, MAC blocklist & allowlist
Maximum Tx Power (Conducted) Radio 1: 2.4GHz: 23 dBm / 200 mW (2 chains combined)
Radio 2: 5GHz: 22 dBm / 158 mW (2 chains combined)
Radio 3: NA
Kensington Lock Yes
IEEE Standards 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
SSID Types Supported Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity Up to 512 clients per radio (Radio1 and Radio2)
Cellular Co-existence Yes
LED Off Mode Yes
Advanced 802.11 Features
OFDMA Yes (UL and DL)
Spatial Reuse (BSS Coloring) Yes
UL MU-MIMO 802.11ax mode Yes
DL-MU-MIMO Yes
Enhanced Target Wake Time (TWT) Yes
ZeroWait DFS/Agile DFS Yes
Wireless Monitoring Capabilities
Rogue Scan radio modes Background, Dedicated
WIPS / WIDS radio modes Background, Dedicated (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 12.45 x 8.6 x 1.66 inches (316 x 218 x 42 mm)
Weight 2.88 lbs (1.307 kg)
Package (shipping) Weight 7.93 lbs (3.6 kg)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Standard Mount kit for Ceiling, T-Rail, and Wall
Environment
Power Supply 802.3at PoE: GPI-130; ships with PoE Injector (reset functionality)
Power Consumption (Maximum) 15.5 W
PSE functionality No
Humidity 10 – 90% non condensing
Operating / Storage Temperature -22–140°F (-30 – 60°C) / -40–176°F (-40–80°C)
Directives Low Voltage Directive • RoHS
UL2043 Plenum Material No
Mean Time Between Failures > 10 Years
IP Rating IP67
Surge Protection Built In Yes
Hit-less PoE Failover N/A
Certifications
WiFi Alliance Certified No
DFS CE
Warranty
Limited Lifetime Warranty Yes

Documentation:

 Download the Fortinet FortiAP Series Datasheet (PDF).

Como Comprar, Part Numbers, SKU

Hardware e Licenças
Hardware | FortiAP 234F Base Appliance
FortiAP 234F #FAP-234F-A
Licença | FortiAP 234F FortiCare Premium Support
1 ano – FortiAP 234F 1 Year FortiCare Premium Support #FC-10-P234F-247-02-12
3 anos – FortiAP 234F 3 Year FortiCare Premium Support #FC-10-P234F-247-02-36
5 anos – FortiAP 234F  5 Year FortiCare Premium Support #FC-10-P234F-247-02-60
Licença | FortiAP 234F FortiCare Elite Support
1 ano – FortiAP 234F 1 Year FortiCare Elite Support #FC-10-P234F-284-02-12
3 anos – FortiAP 234F  3 Year FortiCare Elite Support #FC-10-P234F-284-02-36
5 anos – FortiAP 234F 5 Year FortiCare Elite Support #FC-10-P234F-284-02-60
Licença | FortiAP 234F Upgrade FortiCare Premium to Elite
1 ano – FortiAP 234F 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) #FC-10-P234F-204-02-12
3 anos – FortiAP 234F 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) #FC-10-P234F-204-02-36
5 anos – FortiAP 234F 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) #FC-10-P234F-204-02-60
