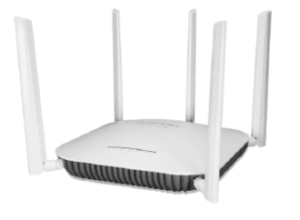

This high throughput enterprise class 802.11ax indoor AP provides three radios and 8 spatial streams. This top-of-the line access point supports OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.
Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance.
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats.
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.
| FortiAP-431F | FortiAP-433F | |
|---|---|---|
| Hardware | ||
| Hardware Type | Indoor AP | Indoor AP |
| Number of Radios | 3 + 1 BLE | 3 + 1 BLE |
| Number of Antennas | 5 Internal + 1 BLE Internal | 5 External (RP-SMA) + 1 BLE Internal |
| Antenna Type and Peak Gain | PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
Omni directional rubber duck antenna: 4 dBi for 2.4 GHz, 6 dBi for 5 GHz |
| Frequency Bands (GHz) | 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 | |
| Radio 1 Capabilities | Frequency Band: 2.4 GHz Channel width: 4×4 20/40 MHz Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 MIMO chains: 4×4 service |
|
| Radio 2 Capabilities | Frequency Band: 5.0 GHz Channel width: 4×4 20/40/80MHz and 2×2 160MHz contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024 Mimo chains: 4×4 service |
|
| Radio 3 Capabilities | Frequency band: 2.4/5.0 GHz MIMO chains: 1×1 frequency scanning | |
| Maximum Data Rate | Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only |
Radio 1: up to 1147 Mbps Radio 2: up to 2402 Mbps Radio 3: scan only |
| Bluetooth Low Energy Radio | Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power | |
| Interfaces | 1x 100/1000/2500 Base-T RJ45, 1 x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port |
|
| Power over Ethernet (PoE) | 802.3at PoE default 1 port powered by 802.3at or 2 ports powered by 802.3af – Full System functionality + USB support 1 port is connected to 802.3af – No USB support, Operate in 2×2 mode with reduced power R1/R2 17dBm(Tx power) |
|
| Simultaneous SSIDs | Up to 16 (14 if background scanning enabled) | |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST | |
| User/Device Authentication | WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist | |
| Maximum Tx Power (Conducted) | Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)* Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)* Radio 3: NA |
|
| Kensington Lock | Yes | Yes |
| IEEE Standards | 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz |
|
| SSID Types Supported | Local-Bridge, Tunnel, and Mesh | Local-Bridge, Tunnel, and Mesh |
| Per Radio Client Capacity | 512 clients per radio (Radio1 and Radio2) | 512 clients per radio (Radio1 and Radio2) |
| Cellular Co-existence | Yes | Yes |
| LED Off Mode | Yes | Yes |
| Reset Button | Yes | Yes |
| Advanced 802.11 Features | ||
| OFDMA | Yes (UL and DL) | Yes (UL and DL) |
| 2.4 GHz OFDMA | Yes | Yes |
| Spatial Reuse (BSS Coloring) | Yes | Yes |
| UL MU-MIMO 802.11ax mode | Yes | Yes |
| DL-MU-MIMO | Yes | Yes |
| HE-MU-MIMO | Yes | Yes |
| Enhanced Target Wake Time (TWT) | Yes | Yes |
| ZeroWait DFS/Agile DFS | No | No |
| Wireless Monitoring Capabilities | ||
| Rogue Scan radio modes | Background, Dedicated | Background, Dedicated |
| WIPS / WIDS radio modes | Background, Dedicated (recommended) | |
| Packet Sniffer Mode | Yes | Yes |
| Spectrum Analyzer | Yes | Yes |
| Dimensions | ||
| Length x Width x Height | 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm) | |
| Weight | 2.16 lbs (0.98 kg) | 2.19 lbs (0.995 kg) |
| Mounting Options | Ceiling, T-Rail, and Wall | Ceiling, T-Rail, and Wall |
| Included Accessories | Mount kit for Ceiling, T-Rail and Wall | Mount kit for Ceiling, T-Rail and Wall. 5 RP-SMA Male dual-band dipole antenna |
| Environment | ||
| Power Supply | SP-FAP400-PA-XX or GPI-130 | SP-FAP400-PA-XX or GPI-130 |
| Power Consumption (Maximum) | 24.5 W | |
| Humidity | 5 – 90% non condensing | |
| Operating / Storage Temperature | 32–113°F (0–45°C) / -31–-94°F (-35–70°C) | |
| Directives | Low Voltage Directive • RoHS | |
| UL2043 Plenum Material | No | No |
| Mean Time Between Failures | > 10 Years | > 10 Years |
| Surge Protection Built In | Yes | Yes |
| Hit-less PoE Failover | Yes | Yes |
| Certifications | ||
| WiFi Alliance Certified | Yes | Yes |
| DFS | FCC, IC, CE, Japan, Korea, Taiwan | |
| Warranty | ||
| Limited Lifetime Warranty | Yes | Yes |

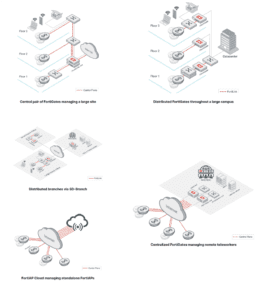

FortiAPs allow for a versatile collection of installation topologies with options to fit any enterprise.
Download the Fortinet FortiAP Series Datasheet (PDF).
| Hardware | FortiAP 433F Base Appliance | |
|---|---|
| FortiAP 433F | #FAP-433F-A |
| Licença | FortiAP 433F FortiCare Premium Support | |
| 1 ano – FortiAP 433F 1 Year FortiCare Premium Support | #FC-10-F433F-247-02-12 |
| 3 anos – FortiAP 433F 3 Year FortiCare Premium Support | #FC-10-F433F-247-02-36 |
| 5 anos – FortiAP 433F 5 Year FortiCare Premium Support | #FC-10-F433F-247-02-60 |
| Licença | FortiAP 433F FortiCare Elite Support | |
| 1 ano – FortiAP 433F 1 Year FortiCare Elite Support | #FC-10-F433F-284-02-12 |
| 3 anos – FortiAP 433F 3 Year FortiCare Elite Support | #FC-10-F433F-284-02-36 |
| 5 anos – FortiAP 433F 5 Year FortiCare Elite Support | #FC-10-F433F-284-02-60 |
| Licença | FortiAP 433F Upgrade FortiCare Premium to Elite | |
| 1 ano – FortiAP 433F 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F433F-204-02-12 |
| 3 anos – FortiAP 433F 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F433F-204-02-36 |
| 5 anos – FortiAP 433F 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F433F-204-02-60 |
