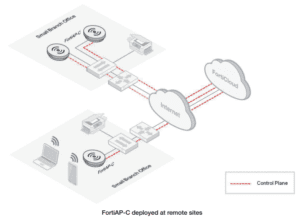

The FortiAP-C series are entry-level cloud-managed Access Points offering Zero-Touch provisioning to support enterprises with remote sites requiring basic wireless LAN connectivity. The FortiAP-C series are managed through the FREE FortiCloud provisioning and management portal, eliminating the CAPEX and complexity of having to deploy onsite WLAN controllers and management servers.
Cloud Management
No wireless controller required, reducing upfront CAPEX and providing the convenience of cloud management.
Ease of Deployment
Zero-touch deployments, with no requirement for onsite IT staff.
Simple Pricing
No recurring per AP licenses for full-featured cloud-management nor hidden costs.

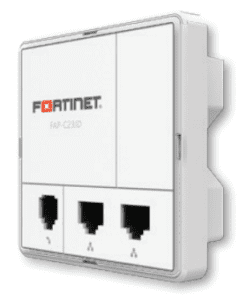

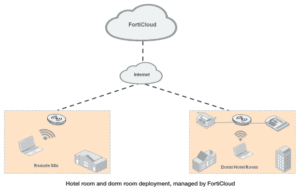

The FAP-C23JD is a cost-effective in-room high-speed WiFi service over existing in-room telephone lines access point, suitable for hotel and dorm rooms. This access point can be installed in minutes, right over the existing wall plate.
| FortiAP C23JD Specifications | |
|---|---|
| Hardware | |
| Hardware Type | Indoor Wall Plate AP |
| Number of Radios | 1 |
| Number of Antennas | 2 Internal |
| Peak Antenna Gain | 2 dBi for 2.4 GHz |
| Frequency Bands (GHz) * | 2.400–2.4835 |
| Frequency of Radio 1 | 2.4 GHz 802.11b/g/n (2×2:2 stream) 20/40 MHz |
| Frequency of Radio 2 | N/A |
| Maximum Data Rate | 300 Mbps (2.4 G) |
| Ethernet Ports | 3x FE RJ45 (1x 802.3af PoE back, 2 front) |
| USB Port | N/A |
| Serial Console Port | N/A |
| Power over Ethernet (PoE) | 1x PoE RJ45 port for 802.3af (15.4 W) |
| Simultaneous SSIDs | 4 (can be expanded to 8 later by SW) |
| EAP Type(s) | EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST |
| User/Device Authentication | WPA and WPA2 with 802.1x or Preshared key, WEP and Web Captive Portal |
| Maximum Tx Power | 20 dB |
| Physical Security | No |
| IEEE Specifications | 802.11b/g/n |
| FortiPresence Capable | No |
| Wireless Mesh Capable | No |
| Management Systems | FortiGate or FortiCloud |
| SSID Types Supported | Local-Bridge, Tunne |
| FortiDeploy & FortiCloud Key | No |
| Maximum Concurrent Clients per Radio | 12 |
| LED Off Mode | LED covered by front cover |
| Advanced 802.11 Features | |
| 802.11n Features | 20 Mhz and 40 Mhz High-Throughput (HT) Support Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation Conserve power via Dynamic MIMO power save |
| Low-density parity check (LDPC) encoding | Yes |
| Maximum Ratio Combining (MRC) | Yes |
| A-MPDU and A-MSDU Packet Aggregation | Yes |
| MIMO Power Save | Yes |
| Short Guard Interval | Yes |
| WME Multimedia Extensions | Yes |
| Dimensions | |
| Length x Width x Height | 3.4 x 3.4 x 1.38 inches (86 x 86 x 35 mm) |
| Weight | 1.02 lb (0.46 kg) |
| Package (shipping) Weight | 1.3 lb (0.6 kg) |
| Mounting Options | Wall |
| Included Accessories | None |
| Environment | |
| Power Supply | PoE 802.3af (15.4 W) |
| Maximum FAP Power Consumption with 802.3af PoE | 5 W |
| Humidity | 10–90% non condensing |
| Operating Temperature | 32–122°F (0–50°C) |
| Storage Temperature | -40–158°F (-40–70°C) |
| Mean Time Between Failures | >10 Years |
| IP Rating | N/A |
| Certifications | |
| CCC (China) | Yes |
| SRRC (China) | Yes |
| Warranty | |
| Limited Lifetime Warranty | Yes |
* Frequency selection and power may be restricted to abide by regional regulatory compliance laws
| FortiAP C23JD | ||
|---|---|---|
| Radio 1 | ||
| 2.4 GHz | ||
| 802.11 a/b/g | Average TX Power (dBm) | RX Sensitivity (dBm) |
| 6 Mbps | 20 | -92 |
| 9 Mbps | 20 | -92 |
| 12 Mbps | 20 | -90 |
| 18 Mbps | 20 | -88 |
| 24 Mbps | 20 | -87 |
| 36 Mbps | 20 | -82 |
| 48 Mbps | 19 | -77 |
| 54 Mbps | 17 | -76 |
| 802.11 HT20 | ||
| MSC 0/8/16 (BPSK) | 19 | -91 |
| MSC 1/9/17 (QPSK) | 19 | -89 |
| MSC 2/10/18 (QPSK) | 19 | -86 |
| MSC 3/11/19 (16-QAM) | 19 | -84 |
| MSC 4/12/20 (16-QAM) | 19 | -78 |
| MSC 5/13/21 (64-QAM) | 18 | -73 |
| MSC 6/14/22 (64-QAM) | 17 | -72 |
| MSC 7/15/23 (64-QAM) | 16 | -72 |
| 802.11 HT40 | ||
| (BPSK) | 19 | -89 |
| MSC 1/9/17 (QPSK) | 19 | -87 |
| MSC 2/10/18 (QPSK) | 19 | -84 |
| MSC 3/11/19 (16-QAM) | 18 | -82 |
| MSC 4/12/20 (16-QAM) | 18 | -77 |
| MSC 5/13/21 (64-QAM) | 18 | -72 |
| MSC 6/14/22 (64-QAM) | 17 | -71 |
| MSC 7/15/23 (64-QAM) | 17 | -70 |
Maximum capability of the Hardware provided (Excluding antenna gain)
