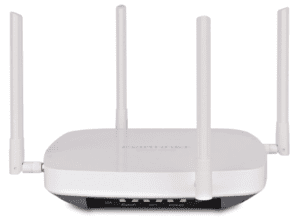

FortiAP U223EV Revenda Fortinet

802.11ac Wave 1 2x2 MIMO Universal Access Point With Dual Radios, External Antennas
Overview
Deployment
Specifications
RF RX/TX Table
Radiation Patterns
Documentation

The Fortinet U221EV and U223EV access points support the latest 802.11ac Wave 1 standard, with a client association rate of up to 867 Mbps. These APs feature two 2×2:2 radios, supporting client devices transmitting up to two spatial streams.

  • 802.11ac Wave 1
  • Dual Radio 2.4 & 5 GHz
  • 4 Interior/Exterior Antennas
  • 2×2 MIMO
  • Up to 300 + 867 Mbps

Universally Manageable Access Points

Fortinet’s FortiAP-U Series offers a wide range of Access Points capable of being managed by any of Fortinet’s controller and management options: Cloud, FortiOS, or WLAN Controller. Access Points are available across the performance spectrum up to the fastest 802.11ac Wave 2 4×4:4 devices.

Universal Access Management
Ability to intelligently support stand-alone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management options, establish a new benchmark in flexibility, performance and security.

Latest WiFi technologies
802.11ac Wave 2 technology with data rates of up to 3.5 Gbps and multi-user MIMO (MU-MIMO) improves client throughput and range.

Unmatched Security Protection
Integrates with Fortinet’s Security Fabric providing unparalleled cybersecurity protection at the network edge.

Fortinet Universal access points are designed to support a variety of deployments from small sites, to medium to large offices, schools, universities, hospitals, hotels, and large retail stores. The Universal access points can serve such a wide range of applications because they can be managed by any of Fortinet’s control and management offerings: FortiGate, FortiWLC, and FortiCloud.

Education

The Education sector is at rising risk from cyber attacks. This in conjunction with requirements to protect minors from inappropriate materials can make deploying wireless a challenge. Our integrated secure wireless controller (FortiGate) ensures secure student access to learning resources while FortiGuard services provides cybersecurity protection.

Healthcare

Patient safety is priority one. Fortinet Universal APs empower hospitals to improve patient safety by enabling life-critical applications such as telemetry requiring low bandwidth but exceptionally high reliability. Our dedicated wireless controllers (FortiWLC) connected to our Universal access points ensures patient safety remains paramount, while providing improved performance for wireless enabled medical devices.

Small/Medium Business

Retailers can streamline WiFi store deployments through the combination of Universal APs and FortiCloud management. This, in combination with FortiDeploy for zero-touch provisioning and deployment offers a cost effective solution for retail IT.



  FortiAP-U221EV
Hardware
Hardware Type Indoor AP
Number of Radios 2 + 1 BT/BLE
Number of Antennas 4 Internal + 1 BT/BLE internal
Antenna Type and Peak Gain Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities 2.4 GHz b/g/n (2×2:2 stream) 20/40 MHz (64 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (2×2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 300 Mbps
Radio 2: up to 867 Mbps
Bluetooth Low Energy (BT/BLE) Radio Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces 1x 10/100/1000 Base-T RJ45, 1x Type A USB
Power over Ethernet (PoE) IEEE 802.3af or 802.3.at
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 25 dBm / 316 mW (2 chains combined)*
5 GHz: 23 dBm/ 200 mW (2 chains combined)*
Kensington Lock Yes
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Tunnel & Mesh
Per Radio Client Capacity Up to 128
Cellular Co-existence Yes
LED Off Mode Yes
Advanced 802.11 Features
802.11ac Wave 2 MU-MIMO No
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes
Wireless Monitoring Capabilities
Rogue Scan Radio Modes Background, Full-time
WIPS / WIDS Radio Modes Background, Full-time (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 7.87 x 7.87 x 1.5 inches (200 x 200 x 40 mm)
Weight 1.2 lbs (0.55 kg)
Package (shipping) Weight 2.5 lbs (1.15 kg)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kits for Ceiling, T-Rail, and Wall
Environment
Power Supply SP-FAP200-PA-XX, GPI-115, or GPI-130
Power Consumption (Max.) 12.5 W
Humidity 5% to 90% non-condensing
Operating Temperature 32 to 122°F (0–50°C)
Storage Temperature -40 to 158˚F (-40 to 70˚C)
Directives Low Voltage Directive • RoHS2
UL2043 Plenum Material No
Mean Time Between Failures >30 Years
IP Rating
Surge Protection Built In
Hit-less PoE Failover No
Certifications
WiFi Alliance Certified Yes
DFS FCC, IC, CE, Japan
Certifications
Limited Lifetime Warranty Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.



  FortiAP U221EV and U223EV
  Radio 1 — 2.4 GHz Radio 2 — 5 GHz
802.11 a/b/g Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
1 Mbps 22 -97
6 Mbps 22 -91 20 -90
9 Mbps 22 -90 20 -89
12 Mbps 22 -87 20 -86
18 Mbps 22 -86 20 -85
24 Mbps 22 -81 20 -80
36 Mbps 22 -76 19 -75
48 Mbps 22 -75 19 -74
54 Mbps 19 -74 18 -73
802.11 HT20
MCS 0 (BPSK) 21 -90 19 -90
MCS 1 (QPSK) 21 -86 19 -87
MCS 2 (QPSK) 20 -83 19 -85
MCS 3 (16-QAM) 19 -82 18 -82
MCS 4(16-QAM) 19 -77 17 -80
MCS 5 (64-QAM) 18 -75 17 -77
MCS 6 (64-QAM) 18 -73 17 -74
MCS 7 (64-QAM) 17 -70 16 -71
MCS 8 (256-QAM) 16 -66
MCS 9 (256-QAM)
802.11 HT40
MCS 0 (BPSK) 21 -87 18 -88
MCS 1 (QPSK) 20 -87 18 -85
MCS 2 (QPSK) 20 -84 18 -85
MCS 3 (16-QAM) 19 -83 18 -80
MCS 4(16-QAM) 19 -78 18 -78
MCS 5 (64-QAM) 18 -73 17 -74
MCS 6 (64-QAM) 18 -72 17 -71
MCS 7 (64-QAM) 18 -71 15 -68
MCS 8 (256-QAM) 15 -64
MCS 9 (256-QAM) 15 -61
802.11 HT80
MCS 0 (BPSK) 18 -83
MCS 1 (QPSK) 17 -80
MCS 2 (QPSK) 17 -78
MCS 3 (16-QAM) 16 -75
MCS 4(16-QAM) 16 -73
MCS 5 (64-QAM) 15 -75
MCS 6 (64-QAM) 15 -72
MCS 7 (64-QAM) 15 -69
MCS 8 (256-QAM) 15 -61
MCS 9 (256-QAM) 15 -58

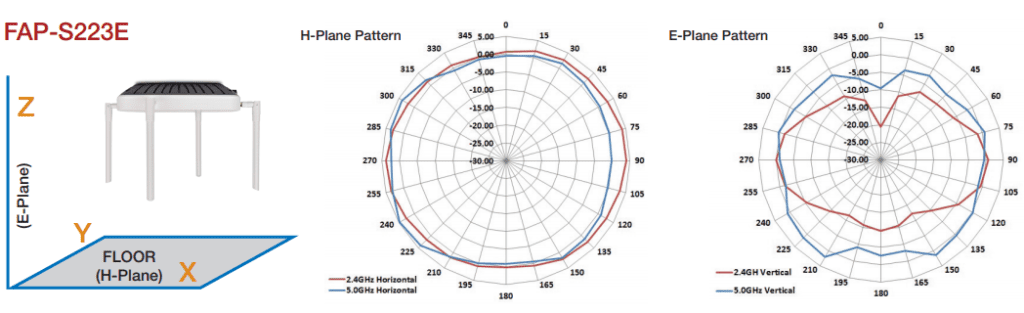

Antenna Radiation Patterns
