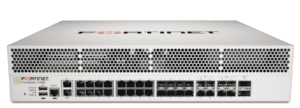

FortiGate 1101E Revenda Fortinet

High Performance, Top-rated Network Security for Mid-sized Enterprises
Overview
Hardware
features
Specifications
Documentation

The FortiGate 1100E series delivers high performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, superior security efficacy and high throughput of the 1100E series keeps your network connected and secure.

Security

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

  • Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic

Certification

  • Independently tested and validated best security effectiveness and performance
  • Received unparalleled third-party certifications from NSS Labs

Networking

  • Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
  • Delivers high-density, flexible combination of various highspeed interfaces to enable best TCO for customers for data center and WAN deployments

Management

  • Includes management console that is effective, simple to use, and provides comprehensive network automation & visibility.
  • Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
  • Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
Firewall IPS NGFW Threat Protection Interfaces
80 Gbps 12.5 Gbps 9.8 Gbps 7.1 Gbps Multiple GE RJ45, GE SFP, 10 GE SFP+, 25 GE SFP28, and 40 GE QSFP+ slots
FortiGate 1100E deployment in large campus networks (NGFW, Intent-based Segmentation)



FortiGate 1100E deployment in data center (IPS/NGFW, Intent-based Segmentation)

Next Generation Firewall (NGFW)

  • Reduce complexity by combining threat protection security capabilities into single high-performance network security appliance
  • Identify and stop threats with powerful intrusion prevention beyond port and protocol that examines the actual applications in your network traffic
  • Delivers industry’s highest SSL inspection performance using industrymandated ciphers while maximizing ROI
  • Proactively blocks newly discovered sophisticated attacks in real-time with advanced threat protection

Segmentation

  • Intent-based Segmentation builds robust security framework while proactively reducing risk, cost and complexity
  • Integrates with Security Fabric seamlessly to allow third party solutions and continuous trust assessment and thereby prevent sophisticated attacks
  • Protects critical business applications and helps implement any compliance without network redesigns

IPS

  • Highly cost-effective mitigation of unpatched vulnerability for hard-topatch systems such as IOT, ICS, and Scada
  • Protect sensitive data to achieve various regulatory compliance such as PCI, HIPPA, PII, GDPR
  • Multiple inspection engines, threat intelligence feeds and advanced threat protection options to defend against unknown threats in real-time
  • Best of breed intrusion prevention with high-performance SSL inspection

Mobile Security for 4G, 5G and IOT

  • SGi LAN security powered by multiple SPUs to provide high performance CGNAT and accelerate IPv4 and IPv6 traffic
  • RAN Access Security with highly scalable and best performing IPsec aggregation and control security gateway (SecGW)
  • Various high-speed interfaces to enable deployment flexibility

Hardware

Network Processor

Fortinet’s new, breakthrough SPU NP6 network processor works inline with FortiOS functions delivering:

  • Superior firewall performance for IPv4/IPv6, SCTP and multicast traffic with ultra-low latency down to 2 microseconds
  • VPN, CAPWAP and IP tunnel acceleration
  • Anomaly-based intrusion prevention, checksum offload and packet defragmentation
  • Traffic shaping and priority queuing

Content Processor

Fortinet’s new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:

  • Enhanced IPS performance with unique capability of full signature matching at SPU
  • SSL Inspection capabilities based on the latest industry mandated cipher suites
  • Encryption and decryption offloading

High Speed Connectivity

High speed connectivity is essential for network security segmentation at the core of data networks. The FortiGate 1100E series provides 40 GE and 25 GE interfaces, simplifying network designs without relying on additional devices to bridge desired connectivity.

Fortinet Security Fabric

Security Fabric

The Security Fabric delivers broad visibility, integrated AI-driven breach prevention, and automated operations, orchestration, and response across all Fortinet and its ecosystem deployments. It allows security to dynamically expand and adapt as more and more workloads and data are added. Security seamlessly follows and protects data, users, and applications as they move between IoT, devices, and cloud environments throughout the network. All this is ties together under a single pane of glass management for significantly thereby delivering leading security capabilities across your entire environment while also significantly reducing complexity.

FortiGates are the foundation of Security Fabric, expanding security via visibility and control by tightly integrating with other Fortinet security products and Fabric-Ready Partner solutions.

FortiOS

Control all security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce complexity, costs, and response time with a truly consolidated next-generation security platform.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

  • A truly consolidated platform with a single OS and pane-of-glass for all security and networking services across all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives, and ICSA validated security and performance. Ability to leverage latest technologies such as deception-based security.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings in addition to true TLS 1.3 support.
  • Prevent, detect, and mitigate advanced attacks automatically in minutes with integrated AI-driven breach prevention and advanced threat protection.
  • Fulfil your networking needs with extensive routing, switching, and SD-WAN capabilities along with intent-based segmentation.
  • Utilize SPU hardware acceleration to boost security capability performance

FortiCare™ Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East, and Asia, FortiCare offers services to meet the needs of enterprises of all sizes.

  FORTIGATE 1100E FORTIGATE 1101E
Interfaces and Modules
Hardware Accelerated 40 GE QSFP+ Slots 2
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ Slots 4
Hardware Accelerated 10 GE SFP+ Slots 4
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated GE RJ45 Ports 16
GE RJ45 Management / HA Ports 2
USB Ports (Client / Server) 1 / 2
Console Port 1
Onboard Storage 0 2x 480 GB SSD
Included Transceivers 2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 2 12.5 Gbps
NGFW Throughput 2,4 9.8 Gbps
Threat Protection Throughput2,5 7.1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) 80 / 80 / 45 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) 80 / 80 / 45 Gbps
Firewall Latency (64 byte, UDP) 3 μs
Firewall Throughput (Packet per Second) 67.5 Mpps
Concurrent Sessions (TCP) 8 Million
New Sessions/Second (TCP) 500,000
Firewall Policies 100,000
IPsec VPN Throughput (512 byte)1 48 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 20,000
Client-to-Gateway IPsec VPN Tunnels 100,000
SSL-VPN Throughput 8.4 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 3 10.0 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3 6,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 780,000
Application Control Throughput (HTTP 64K)2 26 Gbps
CAPWAP Throughput (HTTP 64K) 43 Gbps
Virtual Domains (Default / Maximum) 10 / 250
Maximum Number of FortiSwitches Supported 128
Maximum Number of FortiAPs (Total / Tunnel) 4,096 / 1,024
Maximum Number of FortiTokens 20,000
Maximum Number of Registered FortiClients 20,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 3.5 x 17.44 x 17.62
Height x Width x Length (mm) 88.9 x 443 x 447.4
Weight 24.9 lbs (11.3 kg) 25.4 lbs (11.55 kg)
Form Factor Rack Mount, 2 RU
AC Power Supply 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) 217 W / 336 W 222 W / 346 W
Current (Maximum) [email protected], [email protected]
Heat Dissipation 1147 BTU/h 1181 BTU/h
Redundant Power Supplies Yes, Hot swappable
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level 66.7 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.

  1. . IPsec VPN performance test uses AES256-SHA256.
  2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
  3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
  4. NGFW performance is measured with Firewall, IPS and Application Control enabled.
  5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.



Documentation:

 Download the Fortinet FortiGate 1101E Series DataSheet (PDF).

Como Comprar, Part Numbers, SKU

Proteção UTM 8x5
Proteção UTM 24x7
FortiCare 8x5
FortiCare 24x7
FortiCloud

Assinatura 8×5 dos serviços de Proteção UTM, Suporte Abrangente do Fabricante, Garantia e Substituição de Hardware no próximo dia útil (NBD), Atualizações e Upgrades de Firmware, VPN, Gerenciamento de Tráfego, Conjunto de Serviços UTM, Controle de Aplicações, Detecção e Prevenção de Intrusos, Antivirus, Controle de Acesso aos Sites, Proteção de Dispositivos Móveis (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services)

#FC-10-01502-900-02-12 1 Ano – FortiGate-1500DT 1 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-01502-900-02-36 3 Anos – FortiGate-1500DT 3 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-01502-900-02-60 5 Anos – FortiGate-1500DT 5 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)

Assinatura 24×7 dos serviços de Proteção UTM, Suporte Abrangente do Fabricante, Garantia e Substituição de Hardware no próximo dia útil (NBD), Atualizações e Upgrades de Firmware, VPN, Gerenciamento de Tráfego, Conjunto de Serviços UTM, Controle de Aplicações, Detecção e Prevenção de Intrusos, Antivirus, Controle de Acesso aos Sites, Proteção de Dispositivos Móveis (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services)

#FC-10-01502-950-02-12 1 Ano – FortiGate-1500DT 1 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-01502-950-02-36 3 Anos – FortiGate-1500DT 3 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-01502-950-02-60 5 Anos – FortiGate-1500DT 5 Year Unified (UTM) Protection
(24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)

Serviços de Suporte 8×5 com Garantia e Substituição de Hardware, Atualizações e Upgrades de Firmware, VPN e Gerenciamento de Tráfego

#FC-10-01502-311-02-12 1 Ano – FortiGate-1500DT 1 Year 8×5 FortiCare Contract
#FC-10-01502-311-02-36 3 Anos – FortiGate-1500DT 3 Year 8×5 FortiCare Contract
#FC-10-01502-311-02-60 5 Anos – FortiGate-1500DT 5 Year 8×5 FortiCare Contract

Serviços de Suporte 24×7 com Garantia e Substituição de Hardware no próximo dia útil (NBD), Atualizações e Upgrades de Firmware, VPN e Gerenciamento de Tráfego

#FC-10-01502-247-02-12 1 Ano – FortiGate-1500DT 1 Year 24×7 FortiCare Contract
#FC-10-01502-247-02-36 3 Anos – FortiGate-1500DT 3 Year 24×7 FortiCare Contract
#FC-10-01502-247-02-60 5 Anos – FortiGate-1500DT 5 Year 24×7 FortiCare Contract

Assinatura dos Serviços de Nuvem Fortinet para Gerenciamento, Administração e Análise de Relatórios FortiCloud, além da retenção de Logs de seu Firewall por 1 Ano e Backup das Configurações na Nuvem. A retenção de até 7 dias de Log está disponível para degustação/trial para todos os clientes e equipamentos FortiGate.

#FC-10-01502-131-02-12 1 Ano – FortiGate-1500DT 1 Year FortiCloud Management, Analysis and 1 Year Log Retention
#FC-10-01502-131-02-36 3 Anos – FortiGate-1500DT 3 Year FortiCloud Management, Analysis and 1 Year Log Retention
#FC-10-01502-131-02-60 5 Anos – FortiGate-1500DT 5 Year FortiCloud Management, Analysis and 1 Year Log Retention

*** Importante, o período de retenção de Logs é sempre 1 Ano, mesmo ao adquirir 3 ou 5 anos de Gerenciamento e Administração FortiCloud, após o primeiro ano os registros/Logs mais antigos são eliminados a medida que novos são gerados. ***
