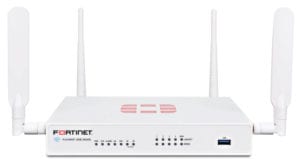

High Performance UTM for Small Networks
The FortiGate/FortiWiFi 30E-3G4G sports an embedded wireless WAN module for 3G/4G mobile data applications. The advanced FortiOS software on the FortiGate facilitates rapid failover from the wired connection to the 3G/4G LTE Wireless WAN connection in the event of a wired failure.
Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 30E series provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With our FortiGuard® security subscription services you’ll have automated protection against today’s sophisticated threats.
The FortiGate/FortiWiFi 30E series offers beyond the industry’s best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.
| Firewall Performance | IPS Performance | Interfaces |
|---|---|---|
| 950 Mbps | 600 Mbps | Multiple GE RJ45 |
Interfaces
The FortiExplorer wizard enables easy setup and configuration coupled with easy-to-follow instructions. FortiExplorer runs on popular mobile devices like Android and iOS. Using FortiExplorer is as simple as starting the application and connecting to the appropriate USB port on the FortiGate. By using FortiExplorer, you can be up and running and protected in minutes.
The FortiGate/FortiWiFi 30E-3G4G includes built-in 3G/4G modem that allows additional WAN connectivity or a redundant link for maximum reliability.
Designed for small environments, you can simply place the FortiGate/FortiWiFi 30E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 30E and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual- band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.
Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.
| FortiGate 30E-3G4G | |
|---|---|
| Hardware Specifications | |
| GE RJ45 Switch Ports | 4 |
| GE RJ45 WAN Port | 1 |
| USB Port | 1 |
| Console (RJ45) | 1 |
| System Performance | |
| Firewall Throughput | 950 Mbps |
| Firewall Latency (64 byte UDP packets) | 130 μs |
| Firewall Throughput (Packets Per Second) | 180 Kpps |
| Concurrent Sessions (TCP) | 900,000 |
| New Sessions/Second (TCP) | 15,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte packets) | 75 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 35 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum) | 80 |
| IPS Throughput (HTTP / Enterprise Mix) | 600 / 240 Mbps |
| SSL Inspection Throughput | 200 Mbps |
| NGFW Throughput | 150 Mbps |
| CAPWAP Throughput | 950 Mbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 2 / 2 |
| Maximum Number of FortiTokens | 20 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.44 x 5.5 x 8.52 |
| Height x Width x Length (mm) | 36.5 x 140 x 216 |
| Weight | 1.982 lbs (0.899 kg) |
| Form Factor | Desktop |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz (External DC Power Adapter) |
| Maximum Current | 110 V / 0.55 A, 220 V / 0.47 A |
| Power Consumption (Average / Maximum) | 16.1 / 19.3 W |
| Heat Dissipation | 66 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 20–90% non-condensing |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | |
| Regulatory Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | |
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
| FG-30E-3G4G | |
| Regional Compatibility | |
| United States, Canada and Mexico | |
| Modem Model | Sierra Wireless EM7355 |
| LTE | Bands: 2, 4, 5, 13,17, 25 |
| UMTS/HSPA+ | Bands:1, 2, 4, 5, 8 Bands: 1, 2, 5, 8 |
| WCDMA | Bands: 1, 2, 5, 8 |
| CDMA 1xRTT/EV-DO Rev A | BC0,BC1,BC10 |
| GSM/GPRS/EDGE | Quad Band 850/900/1800/ 1900 MHz |
| Module Certifications | FCC, PTCRB, NCC CE, GCF, NCC, FCC |
| Diversity | Yes |
| MIMO | Yes |
| GNSS Bias | Yes |
| XLTE (band bonding) | Yes |
| Carrier Certifications | Verizon Wireless (in process), Verizon Wireless DMNR PTCRB for use with AT&T and mostNorth American carriers (in process) |
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1. NGFW performance is measured with Flow AV (Full Mode), IPS and Application Control enabled, based on Enterprise Traffic Mix. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256SHA. CAPWAP performance is based on 1444 byte UDP packets
Download the Fortinet FortiGate/FortiWiFi 30E-3G4G Data Sheet (PDF).
| Licença | FortiGate-30E-3G4G-GBL Enterprise Protection | |
|---|---|
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, Industrial Security, FortiConverter Svc, and FortiCare Premium) | #FC-10-F30EG-810-02-12 |
| Licença | FortiGate-30E-3G4G-GBL Unified Threat Protection (UTP) | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-F30EG-950-02-12 |
| Licença | FortiGate-30E-3G4G-GBL FortiCare Premium Support | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiCare Premium Support | #FC-10-F30EG-247-02-12 |
| Licença | FortiGate-30E-3G4G-GBL FortiCare Elite Support | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiCare Elite Support | #FC-10-F30EG-284-02-12 |
| Licença | FortiGate-30E-3G4G-GBL Upgrade FortiCare Premium to Elite | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F30EG-204-02-12 |
| Licença | FortiGate-30E-3G4G-GBL Advanced Threat Protection | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-F30EG-928-02-12 |
| Licença | FortiGate-30E-3G4G-GBL Services | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service | #FC-10-F30EG-100-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGuard IPS Service | #FC-10-F30EG-108-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGuard URL, DNS & Video Filtering Service | #FC-10-F30EG-112-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGuard Industrial Security Service | #FC-10-F30EG-159-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGuard Security Rating Service | #FC-10-F30EG-175-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiConverter Service for one time configuration conversion service | #FC-10-F30EG-189-02-12 |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGuard SD-WAN Underlay Bandwidth and Quality Monitoring Service | #FC-10-F30EG-288-02-12 |
| Licença | FortiGate Cloud | |
| 1 ano – FortiGate-30E-3G4G-GBL 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention | #FC-10-F30EG-131-02-12 |
