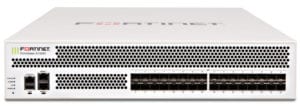

Today’s data centers require security appliances that deliver exceptional performance, deployment flexibility and extensive security features, to protect the most demanding network environments. The FortiGate 3100D device is ideally suited for network segmentation and internal network threat protection in data centers with its 32 10 GE interfaces.
The FortiGate 3100D appliance provides up to 80 Gbps of firewall throughput through the use of innovative FortiASIC processors and the latest generation of multi-core CPUs. Impressive consolidated security performance and support for a variety of configurations ensure that essential security functions keep up with the rest of your network.
The system also provides technologies that include robust networking capabilities and extensible security features, all managed from an intuitive management console with deep insight offerings, enabling you to keep pace with your evolving network.
Fortinet’s new, breakthrough FortiASIC NP6 network processor works inline with FortiOS functions delivering:
The FortiASIC CP8 content processor works outside of the direct flow of traffic, providing high-speed cryptography and content inspection services including:
High speed connectivity is essential for network security segmentation at the core of data networks. The FortiGate 3000D provides the highest 10 GE port densities in the market, simplifying network designs without relying on additional devices to bridge desired connectivity.
FortiOS Managment UI — FortiView and Application Control Panel
FortiGuard™ Security Services
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
FortiOS
FortiOS helps you protect your organization against advanced threats, configure and deploy your network security faster and see deep into what’s happening inside your network. It enables organization to set up policies specific to types of devices, users and applications with industry-leading security capabilities. FortiOS leverages custom FortiASICs and the Optimum Path Processing architecture of FortiGate to deliver 5 times faster throughput performance. In essence, FortiOS delivers:
FortiCare™ Support Services
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
FortiGate 3100D Specifications | |
---|---|
Interfaces and Modules | |
10 GE SFP+ / GE SFP Slots | 32 |
GE RJ45 Management Ports | 2 |
USB Ports (Client / Server) | 1 / 1 |
Console Port | 1 |
Internal Storage | 480 GB |
Included Transceivers | 2x SFP+ (SR 10 GE) |
System Performance and Capacity | |
Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 50 Gbps |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 50 Gbps |
Firewall Latency (64 byte, UDP) | 3 µs |
Firewall Throughput (Packet per Second) | 75 Mpps |
Concurrent Sessions (TCP) | 50 Million |
New Sessions/Second (TCP) | 400,000 |
Firewall Policies | 100,000 |
IPsec VPN Throughput (512 byte) | 50 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
Client-to-Gateway IPsec VPN Tunnels | 64,000 |
SSL-VPN Throughput | 8 Gbps |
Concurrent SSL-VPN Users (Recommended Maximum) | 30,000 |
IPS Throughput | 14 Gbps |
Antivirus Throughput | 5.7 Gbps |
Virtual Domains (Default / Maximum) | 10 / 500 |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 4,096 / 1,024 |
Maximum Number of FortiTokens | 5,000 |
Maximum Number of Registered FortiClients | 20,000 |
High Availability Configurations | Active/Active, Active/Passive, Clustering |
Dimensions amd Power | |
Height x Width x Length (inches) | 3.5 x 17.4 x 21.9 |
Height x Width x Length (mm) | 88 x 442 x 555 |
Weight | 37.69 lbs (17.1 kg) |
Form Factor | 2 RU |
AC Power Supply | 100–240V AC, 50–60 Hz |
DC Power Supply (FG-3100D-DC) | 40.5–57V DC |
Power Consumption (Average / Maximum) | 337 W / 520 W |
Heat Dissipation | 1775 BTU/h |
Redundant Power Supplies | Yes, Hot Swappable |
Operating Environment and Certifications | |
Operating Temperature | 32–104°F (0–40°C) |
Storage Temperature | -31–158°F (-35–70°C) |
Humidity | 10–90% non-condensing |
Operating Altitude | Up to 7,400 ft (2,250 m) |
Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Download the Fortinet FortiGate 3100D Series Datasheet (PDF).
Licença | FortiGate 3100D-DC Enterprise Protection | |
---|---|
1 ano – FortiGate-3100D-DC 1 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium) | #FC-10-03101-811-02-12 |
Licença | FortiGate 3100D-DC Unified Threat Protection (UTP) | |
1 ano – FortiGate-3100D-DC 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-03101-950-02-12 |
Licença | FortiGate 3100D-DC FortiCare Premium Support | |
1 ano – FortiGate-3100D-DC 1 Year FortiCare Premium Support | #FC-10-03101-247-02-12 |
Licença | FortiGate 3100D-DC FortiCare Elite Support | |
1 ano – FortiGate-3100D-DC 1 Year FortiCare Elite Support | #FC-10-03101-284-02-12 |
Licença | FortiGate-3100D-DC Upgrade FortiCare Premium to Elite | |
1 ano – FortiGate-3100D-DC 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-03101-204-02-12 |
Licença | FortiGate 3100D-DC Advanced Threat Protection | |
1 ano – FortiGate-3100D-DC 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-03101-928-02-12 |
Licença | FortiGate 3100D-DC Services | |
1 ano – FortiGate-3100D-DC 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service | #FC-10-03101-100-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiGuard IPS Service | #FC-10-03101-108-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiGuard URL, DNS & Video Filtering Service | #FC-10-03101-112-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiGuard Industrial Security Service | #FC-10-03101-159-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiGuard Security Rating Service | #FC-10-03101-175-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiGuard SD-WAN Underlay Bandwidth and Quality Monitoring Service | #FC-10-03101-288-02-12 |
1 ano – FortiGate-3100D-DC 1 Year FortiConverter Service for one time configuration conversion service | #FC-10-03101-189-02-12 |
Licença | FortiGate Cloud | |
1 ano – FortiGate-3100D-DC 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention | #FC-10-03101-131-02-12 |
