The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
| Firewall | IPS | NGFW | Proteção contra ameaças | Interfaces |
|---|---|---|---|---|
| 5 Gbps | 1 Gbps | 800 Mbps | 600 Mbps | Múltiplos GE RJ45 | Variantes Wi-Fi | 3G4G/LTE |

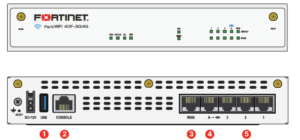

Interfaces
The FortiGate/FortiWiFi 40F-3G4G Series includes built-in 3G4G/LTE modem that allows additional WAN connectivity or a redundant link for maximum reliability.
Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.
| Next Generation Firewall (NGFW) | Secure SD-WAN |
|---|---|
|
|
| FORTIGATE 40F-3G4G | FORTIWIFI 40F-3G4G | |
|---|---|---|
| Interfaces and Modules | ||
| Hardware Accelerated GE RJ45 WAN Ports | 1 | |
| Hardware Accelerated GE RJ45 Internal Ports | 3 | |
| Hardware Accelerated GE RJ45 FortiLink Ports | 1 | |
| Cellular Modem | 3G4G / LTE | |
| Wireless Interface | – | Single Radio (2.4GHz/5GHz), 802.11 a/b/g/n/ac-W2 |
| Antenna Ports (SMA) | 3 | 6 |
| USB Ports | 1 | |
| SIM Slots (Nano SIM) | 2 | |
| Console (RJ45) | 1 | |
| Internal Storage | – | |
| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput | 1 Gbps | |
| NGFW Throughput | 800 Mbps | |
| Threat Protection Throughput | 600 Mbps | |
| System Performance and Capacity | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 2.97 μs | |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps | |
| Concurrent Sessions (TCP) | 700,000 | |
| New Sessions/Second (TCP) | 35,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 250 | |
| SSL-VPN Throughput | 490 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps | |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 | |
| Application Control Throughput (HTTP 64K) | 990 Mbps | |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 8 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 | |
| Maximum Number of FortiTokens | 500 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.6 x 8.5 x 6.3 | |
| Height x Width x Length (mm) | 40.5 x 216 x 160 | |
| Weight | 2.2 lbs (1 kg) | |
| Form Factor | Desktop | |
| Input Rating | 12Vdc, 3A | |
| Power Required | Powered by external DC power adapter 100-240V AC, 50/60 Hz | |
| Current (Maximum) | 100V AC / 0.3A, 240V AC / 0.2A | |
| Power Consumption (Average / Maximum) | 15.8 W / 18.6 W | 18.6 W / 19.8 W |
| Heat Dissipation | 63.5 BTU/h | 67.6 BTU/h |
| Operating Environment and Certifications | ||
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 10–90% non-condensing | |
| Noise Level | Fanless 0 dBA | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |
| Radio Specifications | ||
| Multiple (MU) MIMO | – | 3×3 |
| Maximum Wi-Fi Speeds | – | 1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz |
| Maximum Tx Power | – | 20 dBm |
| Antenna Gain | – | 3.5 dBi @ 5 GHz, 5 dBi @ 2.4 GHz |
The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.
FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.
Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.
Download the Fortinet FortiGate 40F-3G4G Series Data Sheet (PDF).
| Hardware | FortiGate 40F 3G4G | |
|---|---|
|
FortiGate-40F-3G4G
|
#FG-40F-3G4G |
| Licença | FortiGate 40F-3G4G Enterprise Protection | |
|
1 ano – FortiGate-40F-3G4G 1 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium) |
#FC-10-F40FG-811-02-12 |
|
3 anos – FortiGate-40F-3G4G 3 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
|
#FC-10-F40FG-811-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium) | #FC-10-F40FG-811-02-60 |
| Licença | FortiGate 40F-3G4G SMB Protection | |
| 1 ano – FortiGate-40F-3G4G 1 Year SMB Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium) | #FC-10-F40FG-879-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year SMB Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium) | #FC-10-F40FG-879-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year SMB Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium) | #FC-10-F40FG-879-02-60 |
| Licença | FortiGate 40F-3G4G Unified Threat Protection (UTP) | |
| 1 ano – FortiGate-40F-3G4G 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-F40FG-950-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-F40FG-950-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-F40FG-950-02-60 |
| Licença | FortiGate 40F-3G4G FortiCare Essential Support | |
| 1 ano – FortiGate-40F-3G4G 1 Year FortiCare Essential Support | #FC-10-F40FG-314-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year FortiCare Essential Support | #FC-10-F40FG-314-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year FortiCare Essential Support | #FC-10-F40FG-314-02-60 |
| Licença | FortiGate 40F-3G4G FortiCare Premium Support | |
| 1 ano –FortiGate-40F-3G4G 1 Year FortiCare Premium Support | #FC-10-F40FG-247-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year FortiCare Premium Support | #FC-10-F40FG-247-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year FortiCare Premium Support | #FC-10-F40FG-247-02-60 |
| Licença | FortiGate 40F-3G4G FortiCare Elite Support | |
| 1 ano – FortiGate-40F-3G4G 1 Year FortiCare Elite Support | #FC-10-F40FG-284-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year FortiCare Elite Support | #FC-10-F40FG-284-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year FortiCare Elite Support | #FC-10-F40FG-284-02-60 |
| Licença | FortiGate-40F-3G4G Upgrade FortiCare Premium to Elite | |
| 1 ano – FortiGate-40F-3G4G 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F40FG-204-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F40FG-204-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-F40FG-204-02-60 |
| Licença | FortiGate 40F-3G4G Advanced Threat Protection | |
| 1 ano – FortiGate-40F-3G4G 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-F40FG-928-02-12 |
| 3 anos – FortiGate-40F-3G4G 3 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-F40FG-928-02-36 |
| 5 anos – FortiGate-40F-3G4G 5 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-F40FG-928-02-60 |
| Licença | FortiGate 40F-3G4G Services | |
|
1 ano – FortiGate-40F-3G4G 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service
|
#FC-10-F40FG-100-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard IPS Service
|
#FC-10-F40FG-108-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard URL, DNS & Video Filtering Service
|
#FC-10-F40FG-112-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard Industrial Security Service
|
#FC-10-F40FG-159-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard Security Rating Service
|
#FC-10-F40FG-175-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard IoT Detection Service
|
#FC-10-F40FG-231-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard SD-WAN Underlay Bandwidth and Quality Monitoring Service
|
#FC-10-F40FG-288-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiAnalyzer Cloud with SOCaaS: cloud-based central logging & analytics. Include all FortiGate log types, IOC Service, Security Automation Service, FortiGuard Outbreak Detection Service and SOCaaS.
|
#FC-10-F40FG-464-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiConverter Service for one time configuration conversion service
|
#FC-10-F40FG-189-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGuard AI-based Inline Sandbox Service
|
#FC-10-F40FG-577-02-12 |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiAnalyzer Cloud: cloud-Based central logging & analytics. Include All FortiGate log types, IOC Service, Security Automation Service and FortiGuard Outbreak Detection Service.
|
#FC-10-F40FG-585-02-12 |
| Licença | FortiGate Cloud | |
|
1 ano – FortiGate-40F-3G4G 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
|
#FC-10-F40FG-131-02-12 |
|
3 anos – FortiGate-40F-3G4G 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
|
#FC-10-F40FG-131-02-36 |
|
5 anos – FortiGate-40F-3G4G 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
|
#FC-10-F40FG-131-02-60 |
| 1 ano – FortiGate Cloud / FortiLAN Cloud – 1 Year MultiTenancy Account | #FCLE-10-FCLD0-161-02-12 |
|
Enables zero touch bulk provisioning for your FortiGate, FortiWifi, or FortiAP products.
|
#FDP-SINGLE-USE |
| Licença | FortiGate-40F-3G4G Managed FortiGate service, available 24×7, with Fortinet NOC experts performing device setup, network, and policy change management | |
|
1 ano – FortiGate-40F-3G4G 1 Year Managed FortiGate service, available 24×7, with Fortinet NOC experts performing device setup, network, and policy change management
|
#FC-10-F40FG-660-02-12 |
