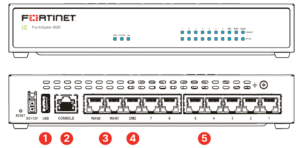

FORTIGATE 60E |

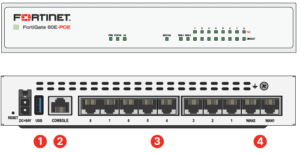

FORTIGATE 60E POE |
GE RJ45 WAN / DMZ Ports |
2/1 |
2 |
GE RJ45 Internal Ports |
7 |
– |
GE RJ45 PoE/+ Ports |
– |
8 |
Wireless Interface |
– |
– |
USB Ports |
1 |
Console (RJ45) |
1 |
Internal Storage |
– |
IPS Throughput |
400 Mbps |
NGFW Throughput |
250 Mbps |
Threat Protection Throughput |
200 Mbps |
Firewall Throughput (1518 / 512 / 64 byte UDP packets) |
3/3/3 Gbps |
Firewall Latency (64 byte UDP packets) |
3 μs |
Firewall Throughput (Packets Per Second) |
4.5 Mpps |
Concurrent Sessions (TCP) |
1.3 Million |
New Sessions/Second (TCP) |
30,000 |
Firewall Policies |
5,000 |
IPsec VPN Throughput (512 byte) |
2 Gbps |
Gateway-to-Gateway IPsec VPN Tunnels |
200 |
Client-to-Gateway IPsec VPN Tunnels |
500 |
SSL-VPN Throughput |
150 Mbps |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
SSL Inspection Throughput (IPS, avg. HTTPS) |
135 Mbps |
SSL Inspection CPS (IPS, avg. HTTPS) |
135 |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
75,000 |
Application Control Throughput (HTTP 64K) |
650 Mbps |
CAPWAP Throughput (HTTP 64K) |
890 Mbps |
Virtual Domains (Default / Maximum) |
10 / 10 |
Maximum Number of FortiSwitches Supported |
16 |
Maximum Number of FortiAPs (Total / Tunnel Mode) |
30 / 10 |
Maximum Number of FortiTokens |
500 |
High Availability Configurations |
Active – Active, Active – Passive, Clustering |
Height x Width x Length (inches) |
1.5 x 8.5 x 6.3 |
Height x Width x Length (mm) |
38 x 216 x 160 |
Weight |
1.9 lbs (0.9 kg) |
2.2 lbs (1.0 kg) |
Form Factor |
Desktop |
Input Rating |
12Vdc, 3A |
12Vdc, 7A |
Power Required |
Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz |
Current (Maximum) |
115V AC / 0.7 A, 230V AC / 0.48 A |
0.8A |
Total Available PoE Power Budget |
– |
75 W |
Power Consumption (Average / Maximum) |
11.5 / 14 W |
20 / 95 W |
Heat Dissipation |
48 BTU/h |
324 BTU/h |
Operating Temperature |
32–104°F (0–40°C) |
Storage Temperature |
-31–158°F (-35–70°C) |
Humidity |
10–90% non-condensing |
Noise Level |
Fanless 0 dBA |
Operating Altitude |
Up to 7,400 ft (2,250 m) |
Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
