The FortiGate 94D-POE and 98D-POE are high port density, all-in-one security appliances that deliver Fortinet’s Connected UTM. Ideal for remote, customer premise equipment (CPE) and retail networks, these FortiGates offer the network security, connectivity, and performance you need at a single low per-device price.
You get advanced threat protection, including firewall, application control, advanced threat protection, IPS, VPN, and web filtering, all from one device that’s easy to deploy and manage. With its comprehensive management console, remote provisioning and wide range of connectivity options you have an easy-to-deploy, easy-to-manage solution that’s great for a centrally managed infrastructure.
You’ll appreciate features like WAN Optimization, Data Archiving and VDOMs for your distributed networks. VDOMs on the FortiGate let you segment networks to enable guest and employee access, or protect things like cardholder data to meet compliance standards like PCI and HIPAA.
Built on the foundation of the FortiASIC System on a Chip 2 (SoC2) and FortiOS 5, the FortiGate provides an integrated set of essential security technologies to protect all of your applications and data. You get the industry’s best firewall plus the latest in Advanced Threat Protection, Intrusion Protection, Web-filtering and many new features like Sandboxing, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

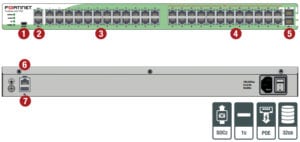

Interfaces
The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate and FortiWiFi platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.
The FortiGate/FortiWiFi 90D Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.
Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.
| FortiGate Model | FortiGate 94D-POE | FortiGate 98D-POE |
|---|---|---|
| Hardware Specifications | ||
| GE RJ45 WAN Ports | 2 | 2 |
| GE RJ45 Switch Ports | 24 | 72 |
| FE RJ45 PoE Ports | 24 | 24 |
| GE SFP DMZ Slots | 2 | 4 |
| Included Transceivers | 0 | 0 |
| USB Ports (Client / Server) | 1 / 1 | 1 / 1 |
| Console (RJ45) | 1 | 1 |
| Internal Storage | 32 GB | 32 GB |
| System Performance | ||
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3.5 / 3.5 / 3.5 Gbps | |
| Firewall Latency (64 byte UDP packets) | 4 μs | |
| Firewall Throughput (Packets Per Second) | 5.3 Mpps | |
| Concurrent Sessions (TCP) | 2 Million | |
| New Sessions/Second (TCP) | 4,000 | |
| Firewall Policies | 5,000 | |
| IPsec VPN Throughput (512 byte packets) | 1 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 | |
| Client-to-Gateway IPsec VPN Tunnels | 1,000 | |
| SSL-VPN Throughput | 35 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 | |
| IPS Throughput (HTTP / Enterprise Mix) 1 | 275 / 41 Mbps | |
| SSL Inspection Throughput 2 | 35 Mbps | |
| Application Control Throughput 3 | 34 Mbps | |
| NGFW Throughput 4 | 25 Mbps | |
| Threat Protection Throughput 5 | 22.5 Mbps | |
| CAPWAP Throughput 6 | 260 Mbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 | |
| Maximum Number of FortiTokens | 100 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.72 x 17 x 10.51 | 3.48 x 11.56 x 17.20 |
| Height x Width x Length (mm) | 44 x 432 x 277 | 88.5 x 293.6 x 437 |
| Form Factor | 1 RU | 2 RU |
| Weight | 10.6 lbs (4.8 kg) | 14.8 lbs (6.7 kg) |
| Environment | ||
| Power Required | 110–240V AC, 50–60 Hz | 110–240V AC, 50–60 Hz |
| Maximum Current | 110 V / 5.4 A, 220 V / 2.9 A | 110 V / 6 A, 220 V / 3 A |
| Total Available PoE Power Budget* | 200 W | 200 W |
| Power Consumption (Average / Maximum) | 156 / 256 W | 163 / 278W |
| Heat Dissipation | 874 BTU/h | 949 BUT/h |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 20–90% non-condensing | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | ||
| FCC Part 15 Class B/A, C-Tick, VCCI, CE, UL/cUL, CB | ||
| Certifications | ||
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | ||
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
Download the Fortinet FortiGate 94D-POE and 98D-POE Datasheet (PDF).
