While traditional security solutions are designed and intended for the world of offices and corporations, the FortiGate Rugged Series offers industrially-hardened, all-in-one security appliance that delivers specialized threat protection for securing critical industrial and control networks against malicious attacks.
Ruggedized Protection for Harsh Environments
The ruggedized FortiGate meets all required performance and reliability standards for operating in demanding industrial settings. It was designed from the outset to operate reliably in harsh electrical and environmental conditions, including those with high levels of electrical and radio frequency interference and at wide ambient temperature ranges.
Industrial Network Security
Fortinet’s FortiOS operating system running on the ruggedized platform provides specialized protections for industrial networks such as antivirus and Intrusion Protection (IPS).
Features & Benefits
Ruggedized design — fanless and use of robust components ensure reliable operation in harsh industrial environments.
Consolidated security architecture — FortiGate consolidated security offers better protection and lower cost of ownership than multiple point products.
Ease of management — robust management systems that allow rapid provision and deployment, monitoring of device and threat status while providing actionable reports.
Firewall Performance
IPS Performance
Interfaces
30D
900 Mbps
230 Mbps
Multiple GE RJ45
35D
550 Mbps
230 Mbps
Multiple GE RJ45 and GE RJ45 PoE
60D
1.5 Gbps
200 Mbps
Multiple GE SFP and GE RJ45 and a DB9 Serial
90D
2 Gbps
1.1 Gbps
Multiple GE SFP and GE RJ45, GE RJ45 bypass port pair and DB9 Serial
Hardware:
FortiGateRugged60D
1x USB Port
4x GE RJ45 Ports
2x GE SFP Slots
2x DB9 Serial Interface/Console
FortiGateRugged35D
3x GE RJ45 Po

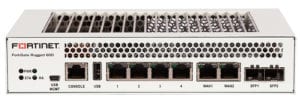

FortiGateRugged60D
USB Management Port for FortiExplorer
Console Port (RJ45)
4x GE RJ45 Ports
2x Shared Media (GE RJ45 Ports / GE SFP Slots) Pairs
1x DB9 Serial Interface
FortiGateRugged90D
2x DB9 Serial Interface/Console
2x GE SFP Slots
1x GE RJ45 Bypass Pair
3x GE RJ45 ports
2x USB interfaces
Wireless and 3G/4G WAN Extensions
The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.
Compact, Ruggedized and Reliable Form Factor
Designed for confined spaces and harsh environments, the ruggedized FortiGate can be mounted within an enclosure, on a wall or on a DIN rail. It is small and lightweight yet highly reliable with superior Mean Time Between Failure (MTBF), minimizing the chance of a network disruption. The hardware components used meet high standards in both EMI and vibration tolerance with a wide thermal operating range supported
Software:
FortiOS
Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.
FortiOS
A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.
Services:
FortiGuard Security Services
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet’s network security platform is tested and validated by the world’s leading third-party testing labs and customers globally.
FortiCare Support Services
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
Enhanced Support — For customers who need support during local business hours only.
Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.
Enterprise Bundle
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.
Specifications:
FGR-30D
FGR-35D
FGR-60D
FGR-90D
Interfaces and Modules
GE RJ45 Interfaces
4
3
4
3
GE RJ45 Bypass Pair
–
–
–
1
GE SFP Slots
2
–
–
2
Shared Media Pairs (GE RJ45 / GE SFP)
–
–
2
–
DB9 Serial Interface
2
–
1
2
USB (Client / Server)
1
–
1/1
1
RJ45 Console Port
–
–
1
–
Included Transceivers
None
None
None
None
System Performance and Capacity
IPv4 Firewall Throughput (1518 UDP)
900 Mbps
550 Mbps
1.5 Gbps
2 Gbps
Firewall Latency (64 byte, UDP)
70 μs
90 μs
4 μs
51 µs
Firewall Throughput (Packets Per Second)
87 Kpps
52.5 Kpps
2.2 Mbps
84 Kbps
Concurrent Sessions (TCP)
750,000
750,000
500,000
2.5 Million
New Sessions/Sec (TCP)
5,000
5,000
4,000
20,000
Firewall Policies
5,000
5,000
5,000
5,000
IPsec VPN Throughput (512 byte)
45 Mbps
45 Mbps
1 Gbps
84 Mbps
Gateway-to-Gateway IPsec VPN Tunnels
200
200
200
200
Client-to-Gateway IPsec VPN Tunnels
250
250
500
1,000
SSL-VPN Throughput
25 Mbps
25 Mbps
30 Mbps
115 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)
80
80
100
200
IPS Throughput (HTTP)
230 Mbps
230 Mbps
200 Mbps
1.1 Gbps
Virtual Domains (Default / Maximum)
5 / 5
5 / 5
10 / 10
10 / 10
Maximum Number of FortiAPs (Total / Tunnel)
2 / 2
2 / 2
10 / 5
32 / 16
Maximum Number of FortiTokens
20
20
100
100
Maximum Number of Registered FortiClients
200
200
200
200
High Availability Configurations
Active-Active, Active-Passive, Clustering
Active-Active, Active-Passive, Clustering
Active-Active, Active-Passive, Clustering
Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)
5.49 x 4.13 x 2.36
3.07 x 10.04 x 10.04
1.73 x 8.50 x 6.10
2.11 x 7.32 x 6.30
Height x Width x Length (mm)
139.5 x 105 x 60
78 x 255.09 x 255.09
44 x 216 x 155
53.5 x 186 x 160
Weight
1.46 lbs (0.668 kg)
3.986 lbs (1.808 kg)
3.5 lbs (1.6 kg)
2.4 lbs (1.08 kg)
Form Factor
Desktop
Outdoor mountable, IP67
Desktop
Desktop, IP40
Power Supply
Dual input, total 6 pin terminal block (12–48V DC) AC adapter not included.*
Terminal block (12–48V DC)
-48V DC power supply and external 12V DC power adapter connection. AC adapter not included.*
Dual input, total 6 pin terminal block (12–48V DC) AC adapter included.
* Power supplies do not operate in redunant mode. Third-party AC adapter is required and may affect systems compliance with Industrial standards.
** Excludes supplied power adapter which operates at smaller temperature range.
Note: All performance values are “up to” and vary depending on system configuration. IPS performance is measured using 1 Mbyte HTTP files. IPsec VPN performance is based on 512 byte UDP packets using AES256+SHA1.
For complete, up-to-date and detailed feature set, please refer to the Administration Handbook and FortiOS Datasheet.
Alta Disponibilidade (High Availability, HA)
Através da aquisição de um segundo Firewall FortiGate de mesmo modelo e licenças, são instalados 02 Firewalls interligados para formar um conjunto de alta disponibilidade (HA) capaz de oferecer proteção contra falhas de hardware em ambientes e redes de missão crítica. Nesse modelo os clientes precisam instalar um Switch ou VLAN para os links de internet (WAN) serem disponibilizados aos 02 Firewalls do conjunto HA que podem operar em modo Ativo-Ativo ou Ativo-Passivo.
Balanceamento, Failover e FortiGate secure SD-WAN
Gerencie facilmente múltiplos links de internet WAN conforme a necessidade de seu negócio, obtenha melhor aproveitamento de seus links e balanceamento de utilização de suas aplicações de modo automático, contrate links de diferentes operadoras e largura de banda, pare de pagar por um link parado (failover) e aproveite os recursos SD-WAN de NGFW para manter sua empresa e seus negócios sempre online.
Controle e Filtragem de Sites (Web Filtering)
Funcionalidade oferecida através da assinatura dos serviços UTM, capaz de realizar filtro e bloqueio de conteúdo, sites, portais de notícias, compras, marketplace, games e rádios online através de um conjunto de categorias pré-definidas e atualizadas regularmente pelo fabricante sem a necessidade de montar listas de URLs, endereços IP, domínios ou subdomínios utilizados pelos portais e sites. Você ainda poderá montar as famosas “WhiteLists” e “BlackLists” se achar necessário.
Controle de Aplicações (Application Control)
Funcionalidade oferecida através da assinatura dos serviços UTM, capaz de realizar bloqueio de aplicações como Skype, WhatsApp, TeamViewer, DropBox, TOR Browser (Deep Web), além da detecção e prevenção de aplicações maliciosas através de um conjunto de categorias pré-definidas e atualizadas regularmente pelo fabricante, sem a necessidade de conhecer os protocolos, endereços IP ou portas utilizadas por tais aplicações.
Integração com Microsoft Active Directory e OpenLDAP
Controle facilmente os acessos de sua empresa através da participação em Grupos do Active Directory (AD) ou OpenLDAP, utilize os grupos que já possui em seu ambiente de rede para controlar os acessos aos Sites, Aplicações, VPN, Acesso Remoto e até para gerenciamento (management) do Firewall FortiGate. Com os recurso de logon único (Single Sign On, SSO) os usuários são identificados automaticamente ao fazer logon sem a necessidade de instalações adicionais (agent) nos computadores da rede.
Integração Matriz-Filial, VPN Site-to-Site e Client-to-Site
Transforme o seu negócio através dos recursos de conectividade VPN Fortinet, conecte as filiais de sua empresa com a Matriz, com o DataCenter, com sua Nuvem (Cloud) Privada ou Pública, e o melhor, todos conectados simultaneamente de modo seguro e gerenciado. Precisa integrar sistemas com potenciais Clientes e Fornecedores, implantar tuneis VPN IPSec ou oferecer acesso remoto para diretores, gerentes e colaboradores através de VPN SSL, todas estas opções estão disponíveis nos equipamentos Fortinet FortiGate, incluindo ambientes com altos níveis de segurança, necessidades de PKI e autenticação com dois ou múltiplos fatores (Multiple-Factor Authentication, MFA) e FortiTokens OTP físicos (hardware) e móveis (software).
Assinatura 8×5 dos serviços de Proteção UTM, Suporte Avançado do Fabricante, Garantia e Substituição de Hardware, Atualizações e Upgrades de Firmware, VPN, Gerenciamento de Tráfego, Conjunto de Serviços UTM, Controle de Aplicações, Detecção e Prevenção de Intrusos, Antivirus, Controle de Acesso aos Sites, Proteção de Dispositivos Móveis (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services)
1 Ano – FortiGate-Rugged-60D 1 Year Unified (UTM) Protection (8×5 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
3 Anos – FortiGate-Rugged-60D 3 Year Unified (UTM) Protection (8×5 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
5 Anos – FortiGate-Rugged-60D 5 Year Unified (UTM) Protection (8×5 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
Assinatura 24×7 dos serviços de Proteção UTM, Suporte Abrangente do Fabricante, Garantia e Substituição de Hardware no próximo dia útil (NBD), Atualizações e Upgrades de Firmware, VPN, Gerenciamento de Tráfego, Conjunto de Serviços UTM, Controle de Aplicações, Detecção e Prevenção de Intrusos, Antivirus, Controle de Acesso aos Sites, Proteção de Dispositivos Móveis (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services)
1 Ano – FortiGate-Rugged-60D 1 Year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
3 Anos – FortiGate-Rugged-60D 3 Year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
5 Anos – FortiGate-Rugged-60D 5 Year Unified (UTM) Protection (24×7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
Serviços de Suporte 8×5 com Garantia e Substituição de Hardware, Atualizações e Upgrades de Firmware, VPN e Gerenciamento de Tráfego
5 Anos – FortiGate-Rugged-60D 5 Year 8×5 FortiCare Contract
Serviços de Suporte 24×7 com Garantia e Substituição de Hardware no próximo dia útil (NBD), Atualizações e Upgrades de Firmware, VPN e Gerenciamento de Tráfego
5 Anos – FortiGate-Rugged-60D 5 Year 24×7 FortiCare Contract
Assinatura dos Serviços de Nuvem Fortinet para Gerenciamento, Administração e Análise de Relatórios FortiCloud, além da retenção de Logs de seu Firewall por 1 Ano e Backup das Configurações na Nuvem. A retenção de até 7 dias de Log está disponível para degustação/trial para todos os clientes e equipamentos FortiGate.
5 Anos – FortiGate-Rugged-60D 5 Year FortiCloud Management, Analysis and 1 Year Log Retention
*** Importante, o período de retenção de Logs é sempre 1 Ano, mesmo ao adquirir 3 ou 5 anos de Gerenciamento e Administração FortiCloud, após o primeiro ano os registros/Logs mais antigos são eliminados a medida que novos são gerados. ***
Precisa comprar, renovar licença, instalar ou migrar seu equipamento ? Planejamos sua aquisição, instalação, implantação ou migração, para mais informações faça contato com a TND Brasil através do telefone (11) 3717-5537 , e-mail [email protected] ou envie uma mensagem.
