The FortiGate/FortiWiFi 50E series provides an application-centric, scalable, and secure SDWAN solution in a compact fanless desktop form factor for enterprise branch offices and midsized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
| Firewall | IPS | NGFW | Threat Protection | Interfaces |
|---|---|---|---|---|
| 2.5 Gbps | 350 Mbps | 220 Mbps | 160 Mbps | Multiple GE RJ45 | WiFi variants | Variants with internal storage |
Interfaces
Interfaces
The FortiExplorer wizard enables easy setup and configuration coupled with easy-to-follow instructions. FortiExplorer runs on popular mobile devices like Android and iOS. Using FortiExplorer is as simple as starting the application and connecting to the appropriate USB port on the FortiGate. By using FortiExplorer, you can be up and running and protected in minutes.
The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.
Designed for small environments, you can simply place the FortiGate/FortiWiFi 50/51E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 50E and provides speedy 802.11ac wireless access. The dual-band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

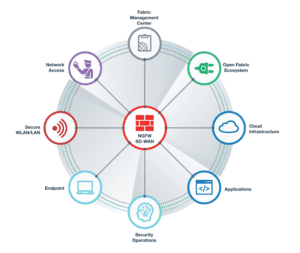

The Security Fabric is the cybersecurity platform that enables digital innovations. It delivers broad visibility of the entire attack surface to better manage risk. Its unified and integrated solution reduces the complexity of supporting multiple-point products, while automated workflows increase operational speeds and reduce response times across the Fortinet deployment ecosystem. The Fortinet Security Fabric overs the following key areas under a single management center:
FortiGates are the foundation of the Fortinet Security Fabric — the core is FortiOS. All security and networking capabilities across the entire FortiGate platform are controlled with one intuitive operating system. FortiOS reduces complexity, costs, and response times by truly consolidating next-generation security products and services into one platform.
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.
FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East, and Asia, FortiCare offers services to meet the needs of enterprises of all sizes.

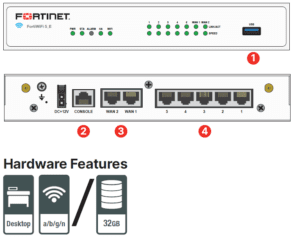

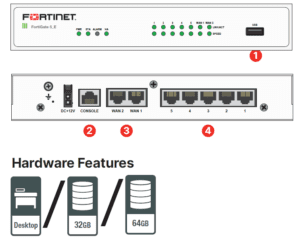

| FWF-50E | FG-51E | FWF-51E | |
|---|---|---|---|
| Hardware Specifications | |||
| GE RJ45 Switch Ports | 5 | 5 | 5 |
| GE RJ45 WAN Ports | 2 | 2 | 2 |
| USB Ports | 1 | 1 | 1 |
| Console (RJ45) | 1 | 1 | 1 |
| Wireless Interface | 802.11 a/b/g/n | – | 802.11 a/b/g/n |
| Internal Storage | — | 32 GB SSD | 32 GB SSD |
| System Performance — Enterprise Traffic Mix | |||
| IPS Throughput | 350 Mbps | ||
| NGFW Throughput | 220 Mbps | ||
| Threat Protection Throughput | 160 Mbps | ||
| System Performance | |||
| Firewall Throughput | 2.5 Gbps | ||
| Firewall Latency (64 byte UDP packets) |
180 μs | ||
| Firewall Throughput (Packets Per Second) | 375 Kpps | ||
| Concurrent Sessions (TCP) | 1.8 Million | ||
| New Sessions/Second (TCP) | 21,000 | ||
| Firewall Policies | 5,000 | ||
| IPsec VPN Throughput(512 byte packets) | 90 Mbps | ||
| Gateway-to-Gateway IPsecVPN Tunnels | 200 | ||
| Client-to-Gateway IPsecVPN Tunnels | 250 | ||
| SSL-VPN Throughput | 100 Mbps | ||
| Concurrent SSL-VPN Users(Recommended Maximum) | 200 | ||
| SSL Inspection Throughput 2 | 150 Mbps | ||
| SSL Inspection CPS 2 | 140 | ||
| SSL Inspection Concurrent sessions 2 | 75000 | ||
| Application Control Throughput 3 | 450 Mbps | ||
| CAPWAP Throughput 6 | 1.2 Gbps | ||
| Maximum Number of FortiSwitches Supported | 8 | ||
| Virtual Domains (Default / Maximum) | 5 / 5 | ||
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 | ||
| Maximum Number ofFortiTokens | 500 | ||
| Maximum Number ofRegistered FortiClients | 200 | ||
| High Availability Configurations | Active/Active, Active/Passive, Clustering | ||
| Dimensions | |||
| Height x Width x Length (inches) | 1.44 x 8.52 x 5.5 | ||
| Height x Width x Length (mm) | 36.5 x 216 x 140 | ||
| Weight | 2.04 lbs (0.925 kg) |
2.04 lbs (0.925 kg) |
2.04 lbs (0.925 kg) |
| Form Factor | Desktop | ||
| Radio Specifications | |||
| Maximum Wi-Fi Speeds | 300 Mbps | – | 300 Mbps |
| Maximum Tx Power | 21 dBm | – | 21 dBm |
| Antenna Gain | 2 dBi @ 5 GHz, 2.4dBi @ 2.4 GHz |
– | 2 dBi @ 5 GHz, 2.4dBi @ 2.4 GHz |
| Environment | |||
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz | ||
| Maximum Current | 100 V / 0.6 A, 240 V / 0.4 A | ||
| Power Consumption (Average / Maximum) | 18 / 22 W | 16 / 20 W | 19 / 23 W |
| Heat Dissipation | 75 BTU/h | 67 BTU/h | 79 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) | ||
| Storage Temperature | -31–158°F (-35–70°C) | ||
| Humidity | 10–90% non-condensing | ||
| Operating Altitude | Up to 7,400 ft (2,250 m) | ||
| Compliance | |||
| Regulatory Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB | ||
| ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN | |||
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
Download the Fortinet FortiGate/FortiWiFi 51E Series Data Sheet (PDF).
| Licença | FortiWifi-51E Unified Threat Protection | |
|---|---|
| 1 ano – FortiWifi-51E 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-00056-950-02-12 |
| Licença | FortiWifi-51E FortiCare Premium Support | |
| 1 ano – FortiWifi-51E 1 Year FortiCare Premium Support | #FC-10-00056-247-02-12 |
| Licença | FortiWifi-51E Upgrade FortiCare Premium to Elite | |
| 1 ano – FortiWifi-51E 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-00056-204-02-12 |
| Licença | FortiWifi-51E Elite Support | |
| 1 ano – FortiWifi-51E 1 Year FortiCare Elite Support | #FC-10-00056-284-02-12 |
| Licença | FortiWifi-51E Advanced Threat Protection | |
| 1 ano – FortiWifi-51E 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-00056-928-02-12 |
| Licença | FortiWifi-51E Services | |
| 1 ano – FortiWifi-51E 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service | #FC-10-00056-100-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiGuard IPS Service | #FC-10-00056-108-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiGuard URL, DNS & Video Filtering Service | #FC-10-00056-112-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiGuard Industrial Security Service | #FC-10-00056-159-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiGuard Security Rating Service | #FC-10-00056-175-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiGuard SD-WAN Underlay Bandwidth and Quality Monitoring Service | #FC-10-00056-288-02-12 |
| 1 ano – FortiWifi-51E 1 Year FortiConverter Service for one time configuration conversion service | #FC-10-00056-189-02-12 |
| Licença | FortiWifi-51E Cloud | |
| 1 ano – FortiWiFi-51E 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention | #FC-10-00056-131-02-12 |
