The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.
The FortiGate family of network appliances represents the industry’s broadest range of enterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integrated architecture that provides extremely high throughput and exceptionally low latency, while delivering industry-leading security effectiveness and consolidation which is routinely validated by independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E series contains consolidated security and networking functionality, various connectivity options along with Industry’s best performance in a compact form factor.
Firewall | IPS | NGFW | Threat Protection | Interfaces | |
---|---|---|---|---|---|
Enterprise Traffic Mix | |||||
FG/FWF-60E | 3 Gbps | 350 Mbps | 250 Mbps | 180 Mbps | Multiple GE RJ45 |
Interfaces
The FortiGate/FortiWiFi 60E Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.
Designed for small environments, you can simply place the FortiGate/FortiWiFi 30E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 30E and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual- band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.
Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

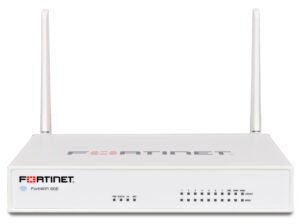

FortiGate 60E | FortiWiFi 60E | FortiGate 61E | FortiWiFi 61E | |
---|---|---|---|---|
Hardware Specifications | ||||
GE RJ45 WAN Ports | 2 | 2 | 2 | 2 |
GE RJ45 Internal Ports | 7 | 7 | 7 | 7 |
GE RJ45 PoE Ports | – | – | – | – |
GE RJ45 DMZ Ports | 1 | 1 | 1 | 1 |
Wireless Interface | – | 802.11 a/b/g/n/ac | – | 802.11 a/b/g/n/ac |
USB Ports | 1 | 1 | 1 | 1 |
Console (RJ45) | 1 | 1 | 1 | 1 |
Internal Storage | – | – | 128 GB | 128 GB |
System Performance | ||||
Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 3 / 3 / 3 Gbps | |||
Firewall Latency (64 byte UDP packets) | 3 μs | |||
Firewall Throughput (Packets Per Second) | 4.5 Mpps | |||
Concurrent Sessions (TCP) | 1.3 Million | |||
New Sessions/Second (TCP) | 30,000 | |||
Firewall Policies | 5,000 | |||
IPsec VPN Throughput (512 byte packets) | 2 Gbps | |||
Gateway-to-Gateway IPsec VPN Tunnels | 200 | |||
Client-to-Gateway IPsec VPN Tunnels | 500 | |||
SSL-VPN Throughput | 150 Mbps | |||
Concurrent SSL-VPN Users (Recommended Maximum) | 100 | |||
IPS Throughput (HTTP / Enterprise Mix) 1 | 1,400 / 350 Mbps | |||
SSL Inspection Throughput 2 | 340 Mbps | |||
Application Control Throughput 3 | 550 Mbps | |||
NGFW Throughput 4 | 250 Mbps | |||
Threat Protection Throughput 5 | 180 Mbps | |||
CAPWAP Throughput 6 | 1.5 Gbps | |||
Virtual Domains (Default / Maximum) | 10 / 10 | |||
Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 | |||
Maximum Number of FortiTokens | 100 | |||
Maximum Number of Registered FortiClients | 200 | |||
High Availability Configurations | Active / Active, Active / Passive, Clustering | |||
Dimensions | ||||
Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 | |||
Height x Width x Length (mm) | 38 x 216 x 160 | |||
Weight | 1.9 lbs (0.9 kg) | |||
Form Factor | Desktop | |||
Environment | ||||
Power Required | 100–240V AC, 50–60 Hz | |||
Maximum Current | 110 V / 1.5 A, 220 V / 0.75 A | 110 V / 1.5 A, 220 V / 0.75 A | 115V AC / 0.9A, 230V AC / 0.6A |
115V AC / 0.9A, 230V AC / 0.6A |
Power Consumption (Average / Maximum) | 11.7 / 14 W | 12.6 / 15.2 W | 11.9 / 14.3 W | 13 / 16 W |
Heat Dissipation | 40 BTU/h | 52 BTU/h | 49 BTU/h | 55 BTU/h |
Operating Temperature | 32–104°F (0–40°C) | |||
Storage Temperature | -31–158°F (-35–70°C) | |||
Humidity | 20–90% non-condensing | |||
Operating Altitude | Up to 7,400 ft (2,250 m) | |||
Compliance | ||||
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | ||||
Certifications | ||||
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Note: All performance values are “up to” and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).
Download the Fortinet FortiGate/FortiWiFi 60E Data Sheet (PDF).
Licença | FortiWiFi-60E Enterprise Protection | |
---|---|
1 ano – FortiWiFi-60E 1 Year Enterprise Protection (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium) | #FC-10-W060E-811-02-12 |
Licença | FortiWifi-60E Unified Threat Protection | |
1 ano – FortiWifi-60E 1 Year Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium) | #FC-10-W060E-950-02-12 |
Licença | FortiWifi-60E FortiCare Premium Support | |
1 ano – FortiWifi-60E 1 Year FortiCare Premium Support | #FC-10-W060E-247-02-12 |
Licença | FortiWifi-60E Upgrade FortiCare Premium to Elite | |
1 ano – FortiWifi-60E 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium) | #FC-10-W060E-204-02-12 |
Licença | FortiWifi-60E Elite Support | |
1 ano – FortiWifi-60E 1 Year FortiCare Elite Support | #FC-10-W060E-284-02-12 |
Licença | FortiWifi-60E Advanced Threat Protection | |
1 ano – FortiWifi-60E 1 Year Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium) | #FC-10-W060E-928-02-12 |
Licença | FortiWifi-60E Services | |
1 ano – FortiWifi-60E 1 Year Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service | #FC-10-W060E-100-02-12 |
1 ano – FortiWifi-60E 1 Year FortiGuard IPS Service | #FC-10-W060E-108-02-12 |
1 ano – FortiWifi-60E 1 Year FortiGuard URL, DNS & Video Filtering Service | #FC-10-W060E-112-02-12 |
1 ano – FortiWifi-60E 1 Year FortiGuard Industrial Security Service | #FC-10-W060E-159-02-12 |
1 ano – FortiWifi-60E 1 Year FortiGuard Security Rating Service | #FC-10-W060E-175-02-12 |
1 ano – FortiWifi-60E 1 Year FortiGuard SD-WAN Underlay Bandwidth and Quality Monitoring Service | #FC-10-W060E-288-02-12 |
1 ano – FortiWifi-60E 1 Year FortiConverter Service for one time configuration conversion service | #FC-10-W060E-189-02-12 |
1 ano – FortiWiFi-60E 1 Year FortiAnalyzer Cloud: cloud-Based central logging & analytics. Include All FortiGate log types, IOC Service, Security Automation Service and FortiGuard Outbreak Detection Service. | #FC-10-W060E-585-02-12 |
Licença | FortiWifi-60E Cloud | |
1 ano – FortiWiFi-60E 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention | #FC-10-W060E-131-02-12 |
