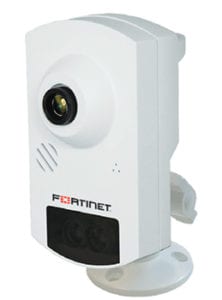

FortiCam MB40 Revenda Fortinet

Video Security IP Camera


Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, lowlight night vision, fixed and motorized zoom lenses and 2-way audio, there’s a FortiCam that fits every environment. All FortiCams deliver crisp, high-resolution HDTV-quality images to any FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to set up, license-free

With FortiCameras, installation is a breeze. They support PoE, eliminating the need for AC power. Just connect the camera to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and, unlike using third-party cameras, no license fees.

The Power to See Everything: the Complete Video Security Solution

Combined with the FortiRecorder NVR, FortiCameras give you everything you need for complete facility video security.

  • Scheduled and manual recording
  • Motion detection and continuous recordings
  • Snapshot notifications and alerts
  • Web-based interface (no software installation required)
  • Camera live view and video playback
  • Event monitor with timeline
  • RADIUS, LDAP, SNMP and remote data storage support for flexible network integration
  • Powerful Windows client FortiRecorder Central
  • Mobile access on iOS and Android
Key Features & Benefits
Clear high-definition visuals, even in the dark Your security footage won’t be much use if you can’t see what’s going on. HDTV-quality and advanced low-light and infrared ensure that you can see the details.
Continuous or event-based surveillance Capture everything or capture selectively based on events including motion detection, sound detection or scheduled times.
Auto-discovery by FortiRecorder NVRs Setup is a snap: plug into FortiRecorder network and the rest is automatic.


FortiCamera FD40

FortiCamera FD40

A flagship of Fortinet’s Network camera lineup this model has it all. High-performance 4MP resolution at 30 fps captures the smallest detail through a precision motorized 3x autofocus zoom lens. Complicated or low light situations are mastered with ease using True Shutter Ultra-WDR (>120 dB) and excellent low light sensitivity (0.01lx in b/w). In case this is not enough, a long range 130-foot IR spot will brighten the darkest scene. Triple-axis wall or ceiling mount plus 3/4” EMT conduit compatibility are the professional choice for installation. This rugged camera is designed to IK10 rating for vandalism and is suitable for extreme temperatures from -55°C to +55°C while still using standard PoE 802.3af.

FortiCamera FD20

This fixed dome camera is a popular configuration and delivers outstanding flexibility and utility at an affordable price. The crisp 1080p resolution image can cover up to 91degrees horizontal making it perfect for left to right corner views. Its direct wall mountable triple-axis modular design allows mounting flexibility by installing the baseplate and housing first while adding the camera module later. Rated IK10 for vandalism, removable sun shield and indoor/outdoor capabilities with good 100-foot IR range round this versatile camera model.

FortiCamera FD20
FortiCamera MD20

FortiCamera MD20

With smooth lines and unobtrusive size, this camera looks good indoors and it is tough enough for sheltered outdoor positions. Despite the small package it has full HD 1080p resolution at 30 fps. The easy to adjust eyeball design can point the 70-degree view fixed lens at doors, customer areas, reception desks or hallways. When the lights go out a high powered IR LED steps in giving you carefree 24/7 surveillance.

FortiCamera CB20

The FortiCam CB20 offers great quality video in almost any situation. It’s compact design looks good indoors and out. The wide angle varifocal lens delivers crisp panoramic views or zoomed-in views for details. Advanced infrared LED technology delivers an extended 100-foot range at night. Mounting in any direction is a breeze with the sturdy cable-managed bracket. A no-frills approach and focus on core features makes this model a price/performance winner.

FortiCamera CB20
FortiCamera SD20

FortiCamera SD20

Any video surveillance project will benefit from the addition of professional-grade FortiCamera FCM-SD20 high-speed dome cameras in strategic positions. Its 360-degree continuous pan operation and above-horizon tilt provides a watch-tower overview. Quickly look around and smoothly follow incidents with precision mechanics and high-quality autofocus. Then narrow it down utilizing ultra-fine adjustment/positioning.

View close-up detail, identify faces and read license plates at long distances with 2MP HD digital clarity. The superior optical 30x zoom range is supported by electronic image stabilization to allow steady shots at long range even if wind or vibration is present.

For ease of mind, true wide dynamic range (shutter WDR >96dB) masters tricky light situations while 0.09lx night sensitivity generates great images even in dimly lit areas.

FortiAPCam 214B

Integrating a camera plus WiFi access point, the FortiAPCam 214B cuts clutter and simplifies the installation of your security and your wireless systems by combining the two. It delivers the high-security wireless networking that Fortinet’s access points are known for in the body of a high-resolution day and night security camera with a wide dynamic range, passive infrared sensor, DI/DO and tamper detection.

Wide dynamic range (WDR) technology compensates for lighting imbalances, capturing detail that other cameras can miss. Built-in infrared LED lights allow it to see in the dark up to 45 feet away. Varifocal lens with wide viewing angle to match almost any situation. The passive infrared (PIR) sensor detects motion up to 15 feet away, automatically activating the infrared lights. The built-in wireless access point delivers secure, identity-driven WiFi access. Managed by a FortiGate or FortiWiFi platform with its integrated wireless controller, the FortiAPCam 214B allows you to deploy a comprehensive integrated security solution for your wireless and wired networks. The access point is 802.11 a/b/g/n standards-based and operates on both 2.4 GHz b/g/n and 5 GHz a/n.

FortiCamera 214B


Description Ultra-WDR Day/Night IP Video Security Camera Versatile Day/Night IP Video Security Camera Day/Night IP Video Security Camera
Format Fixed Dome, Indoor/Outdoor, vandal Fixed Dome, Indoor/Outdoor, vandal Mini Dome, Indoor/Outdoor
Sensor Type 4 mega-pixel, 1/3″ Progressive CMOS 2 mega-pixel, 1/2.8” Sony CMOS 2 mega-pixel, 1/2.8” Sony CMOS
Iris F1.6, P-Iris F1.4, fixed F1.4, fixed
Optical Zoom 3x 4x
Digital Zoom
Focal Length 3–9 mm (motorized, autofocus) f = 2.8 mm–12 mm varifocal f = 3.6 mm
View Angle H: 109°–33° H: 91°–31° V: 79°–23° D: 138°–40° H: 70° V: 59° D: 107°
Minimum Illumination 0.1 Lux (Color), 0.01Lux (B/W) @ F1.2 0.05 Lux (Color), 0.01Lux (B/W) @ F1.4 0.05 Lux (Color), 0.01Lux (B/W) @ F1.4
Wide Dynamic Range Shutter WDR (>120 dB) Digital Digital
Streaming Protocols RTSP RTSP RTSP
Video Compression MJPEG / H.264 (MPEG-4 Part 10/AVC) Baseline / Main / High Profile H.264 H.264
Image Resolution 2688 x 1512 at 30 frames per second
Full HD 1080P / SXGA / 720P / XGA / SVGA / D1 / VGA / CIF
1920 x 1080 at 25 frames per second
1280 x 720 at 25 frames per second
1920 x 1080 at 25 frames per second
1280 x 720 at 25 frames per second
Audio Line in/out Line in/out
Interface 1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps 1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps RJ45 Ethernet 10/100 Mbps
Mounting Wall, ceiling, 3/4″ Conduit Wall, ceiling, 3-axis, optional sunshield Wall, ceiling, 3-axis
Pan / Tilt
Presets / Accuracy / Speed
IRLED / IRC 40m / Yes 30m / Yes 25m / Yes
EIS / DNR – / 3DNR – / 3DNR – / Yes
Height x Width x Length (inches) 4.6 x 5.2 x 5.2 6.3 x 4.5 x 4.5 2.6 x 4.8 x 5.0
Height x Width x Length (mm) 117 x 134 x 134 161 x 115 x 115 65 x 123 x 126
Weight 1.69 lbs (770 g) 2.13 lbs (965 g) 0.68 lbs (310 g)
Power Source PoE (802.3af) / DC 10–48V / AC 24V PoE (802.3af) / DC12V±10% / AC 24V±10% PoE (802.3af) / DC12V±10%
Power Consumption (Average) Cold start 8.5 W > Operation 13.34 W max with heater 3.5 W (9 W IR ON) 5W
Operating Temperature -67–131°F (-55–55°C) 14–122°F (-10–50°C) 14–122°F (-10–50°C)
Humidity 10–90% non-condensing 0–85% non-condensing 0–85% non-condensing
Regulatory and Standards CE / FCC / RoHS / IP66 / IK10 / ONVIF Profile S FCC Class B, CE Mark, weatherproof (IP66), IK10, ONVIF2.2 FCC Class B, CE Mark, IP65, ONVIF2.2


Description Day/Night IP Video Security Camera Ultra-WDR IP PTZ Camera Access point and IP Video Security Camera
Format Compact Bullet, Indoor/Outdoor Speed Dome, Indoor/Outdoor Fixed Dome, Indoor
Sensor Type 2 mega-pixel, 1/2.8” Sony CMOS 2 mega-pixel, 1/2.8” Sony Progressive CMOS 2 mega-pixel, 1/2.7” CMOS
Iris F1.4 fixed F1.6 (W), F4.7 (T) P-Iris F1.2 P-Iris
Optical Zoom 4x 30x 3x
Digital Zoom 12x
Focal Length f = 2.8 mm–12 mm varifocal f = 4.3 mm–129 mm (motorized, autofocus) f = 3 mm–9 mm varifocal
View Angle H: 91°–31° V: 79°–23° D: 138°–40° H: 65°–3.1° H: 93°–31.7°
Minimum Illumination 0.05 Lux (Color), 0.01Lux (B/W) @ F1.4 0.5 Lux (Color), 0.095 Lux (B/W) @ F1.6 0.2 Lux (Color), 0.01Lux (B/W) @ F1.2
Wide Dynamic Range Digital Shutter WDR (>96 dB) Digital
Streaming Protocols RTSP RTSP RTSP
Video Compression H.264 H.264 (MPEG-4 Part 10/AVC) H.264 / MJPEG / MPEG-4
Image Resolution 1920 x 1080 at 25 frames per second
1280 x 720 at 25 frames per second
1920 x 1080 at 30 frames per second
1280 x 720 at 30 frames per second
720 x 480 at 30 frames per second
1920 x 1080 at 30 frames per second
1280 x 720 at 30 frames per second
720 x 480 at 30 frames per second
Audio Line in/out Two-way line in/line out, built-in mic
Interface RJ45 Ethernet 10/100 Mbps 4 DI, 2 DO, RJ45 Ethernet 10/100 Mbps 1 DI, 1 DO, RJ45 Ethernet 10/100 Mbps, PIR 15 ft. (5 m)
Mounting Wall, ceiling, bracket included Wall, pole, ceiling (see “Optional Accessories”) Ceiling, 0–90°V
Pan / Tilt 360° endless / -10°–190°
Presets / Accuracy / Speed 256 / 0.225° / 5°–400° /s
IRLED / IRC 30m / Yes – / Yes 15m / Yes
EIS / DNR – / Yes Yes / 3DNR – / Yes
Height x Width x Length (inches) 2.8 x 3.3 x 9.4 11.1 x 7.6 × 7.6 (with sunshield) 3.9 x 5.5 x 5.5
Height x Width x Length (mm) 70 x 85 x 240 282 x 192 x 192 (with sunshield) 100 x 140 x 140
Weight 1.25 lbs (569 g) 5.07 lbs (2.30 kg) 1.5 lbs (0.68 kg)
Power Source PoE (802.3af) 802.3at PoE+ (60 W) / AC 24V ± 10% PoE 802.3af, 12.5 W
Power Consumption (Average) 1.2 W (6 W IR ON) 59 W (with heater) 5.5 W
Operating Temperature 14–122°F (-10–50°C) -40–122°F (-40–50°C) 32–104°F (0–40°C)
Humidity 0–85% non-condensing 10–80% non-condensing 10–80% non-condensing
Regulatory and Standards FCC Class B, CE Mark, weatherproof (IP66), ONVIF2.2 CE / FCC / RoHS / IP66 / ONVIF Profile S FCC Part 15 Subpart B, Subpart C and Subpart E /
IEC 62471
Access Point
Number of Antennas 2 internal
Peak Antenna Gain 3 dBi for 2.4 GHz, 4 dBi for 5 GHz
Frequency of Radio 2.4 GHz b/g/n or 5 GHz a/n
Tx/Rx Streams (802.11n mode) 2×2 MIMO dual spatial stream – 300 Mbps/Radio
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs 8
User/Device Authentication WPATM and WPA2TM with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist and whitelist
Maximum Tx Power 17 dBm (50 mW)
IEEE Specifications 802.11a, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1X, 802.3af
802.11n Features 20 Mhz and 40 Mhz High-Throughput (HT) Support Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation. Conserve power via Dynamic MIMO power save. Low-density parity check (LDPC) encoding. Maximum likelihood demodulation (MLD). Transmit beamforming (TxBF). Maximum Ratio Combining (MRC) for improved receiver performance.
Wireless Monitoring Capabilities Background scan with client access on 2.4 and 5 GHz. Full-time scan as dedicated monitor option.
